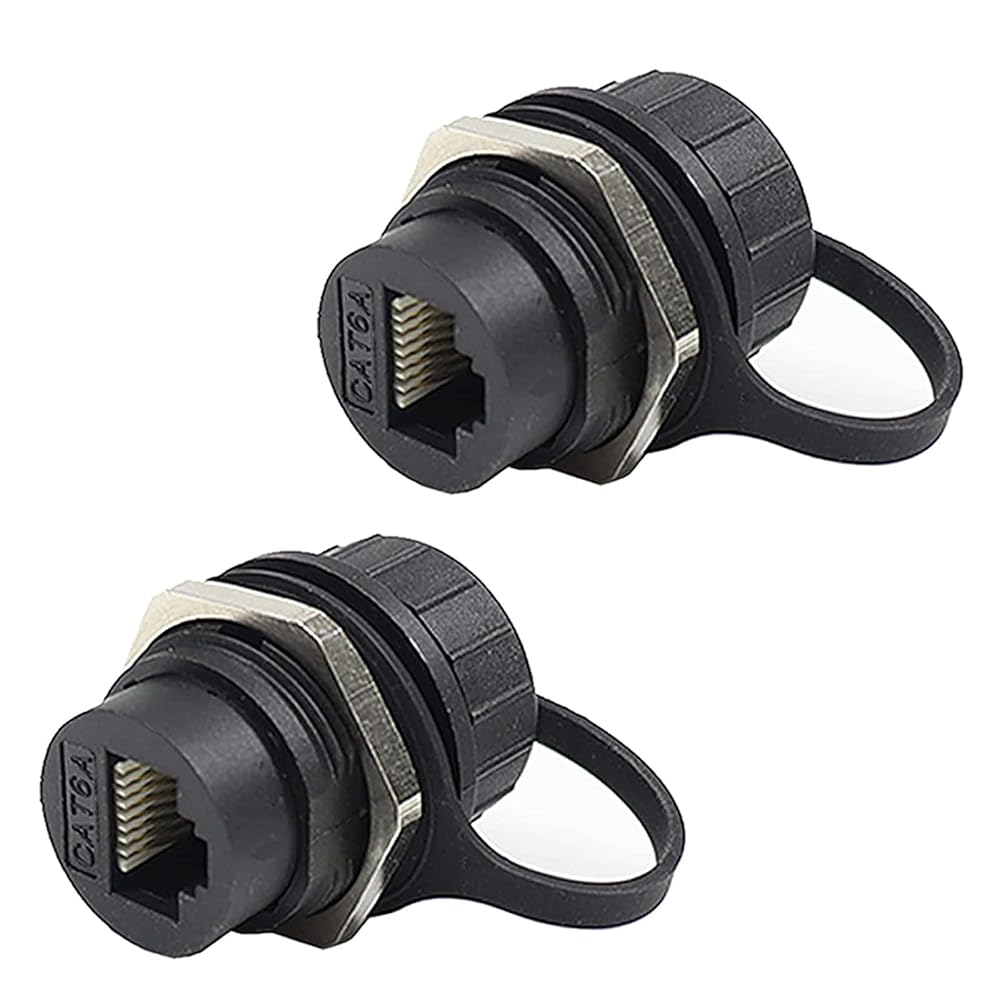

The Cat6a RJ45 Coupler requires no tools to connect RJ45 Ethernet cables. This coupler is an ideal solution for extending existing Cat5, Cat5e, or Cat6 cables.
Superior construction combines a high-impact, fire-retardant plastic housing with gold-plated RJ45 contacts that meet Category 6a performance in compliance with the TIA/EIA 568B and ISO/IEC 11801 standards.
The ethernet coupler is compatible with PCs, IPTV, routers, switches, printers, hubs, and other devices, meeting the needs of voice , home networking, home offices, audio, and video applications; Commonly used in homes, offices, and computer rooms.
Specification
Port A: CAT6A FEMALE
Port B: CAT6A FEMALE
Transmission Speed: 10Gbps Category：CAT6A( back compatible cat6/5e/5）
Waterproof level: IP67
Material: Shielded brass solid terminal, zinc alloy shell
Pins: 8 cores
Rated current: 1.5A
Rated voltage: 125V AC
Withstand voltage: AC 1000V/0.5mA
Contact resistance: Insulation resistance: >100mΩ
Working temperature: -25℃~105℃
Storage temperature: -25℃~85℃
Atmospheric pressure: (86~106)KPa
Package contain:2 x waterproof cat6a coupler
