Transceivers

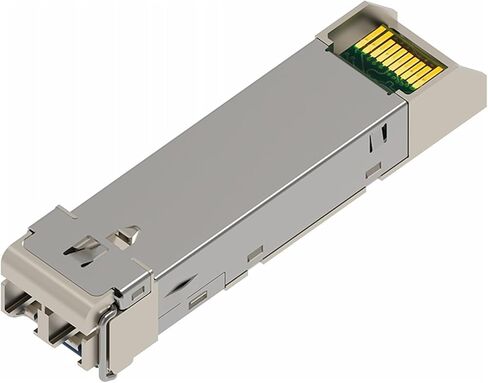

GLC-LH-SM-20 Compatible 1000BASE-LX/LH SFP Transceiver Module (SMF, 1310nm, 20km, LC, DOM)
GLC-LH-SM-20 compatible SFP transceiver supports up to 20km link lengths over LC duplex SMF fiber.
Featuring low power consumption, the swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks Data Center LAN SAN Networks and other optical links
Specifications
GLCLH-SM-20
Form Factor
SFP
Max. Data Rate
1000Mbps
Wavelength
1310nm
Max. Cable Distance
20km
Connector
Duplex LC
Optical Components
FP 1310nm
Media
SMF
DOM Support
Yes
TX Power
-9.5 ~ -3dBm
Receiver Sensitivity
Commercial Temperature
0 to 70°C (32 to 158°F)
Protocols
SFF-8472 , IEEE 802.3ah-2004, IEEE 802.3z
