JMT PCI-E 1X to PCIE 4 Slots Adapter Card PCI Express Expansion Card 1 to 4 PCIe Slot Riser with 6Pin/SATA 15Pin Port

KWD 13.500
Brand
JMT
Category
Internal Cards
– 1 +

Special Features

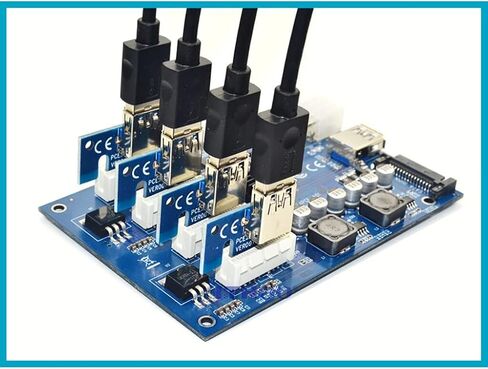

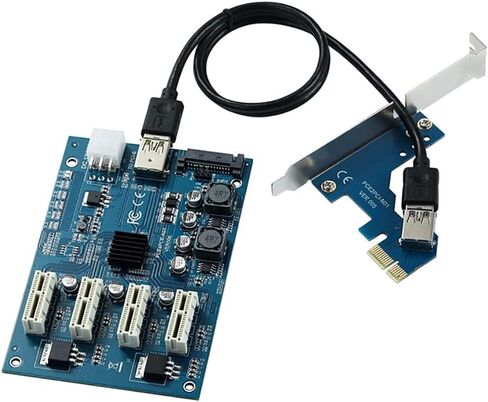

  • If you need more than one PCI-E x1 slot and don't have that many on your motherboard, then you can consider this adapter card. It consists of two parts, one is the main card, which is installed on the motherboard via the PCI-E x1 interface. The second is the device card, which has three or four PCI-E x1 strips on it and the two are connected together via a USB 3.0 cable. The device card is used for the transfer between PCI-E, PCI-E.
  • Interface: Motherboard PCI- E IX (1X, 4X, 8X, 16X compatible). Product speed: PCI-E2.0.
  • 2U case: Support, can be used with half height baffle, full height baffle sent by default.
  • The PCI-E slot being transferred should preferably be version 2.0 or above, and version 3.0 is even better. And is only suitable for places where performance is not required.
  • Because WINS limits the number of graphics cards, under WIN10 you can only recognise up to 8 cards, WIN7 can only recognise 6 cards and you have to use a modified version of the graphics card driver and try to use the same model of graphics card on a motherboard.

Description

JMT PCI-E 1X To PCIE 4 Slots Adapter Card PCI Express Expansion Card 1 to 4 PCIe Slot Riser with 6Pin/SATA 15Pin Port

Note:
1.This product is 24-hour working products and are consumable.
2.Because WINS limits the number of graphics cards, under WIN10 you can only recognise up to 8 cards, WIN7 can only recognise 6 cards and you have to use a modified version of the graphics card driver and try to use the same model of graphics card on a motherboard.
3.Above 8 cards you need to use a LIN¡¤UX system.

Product parameters

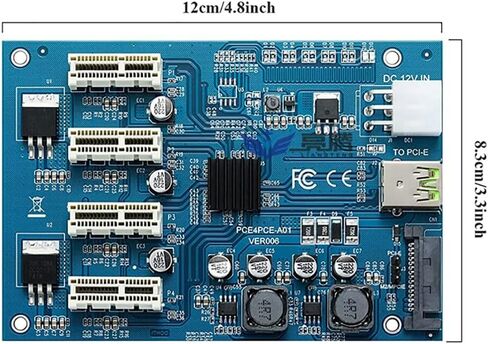

Product Model:PCE4PCE-A01
Interface: Motherboard PCI- E IX (1X, 4X, 8X, 16X compatible)
PCB colour: Blue
Product speed: PCI-E2.0
2U case: Support, can be used with half height baffle, full height baffle sent by default.
Main control chip: AS¡¤Media AS¡¤M1184e
System support: WIN/WIN8/WIN10/LIN¡¤UX
Note: USB cable can not be connected to the USB interface, must be connected to the matching small adapter board.

Product Description.

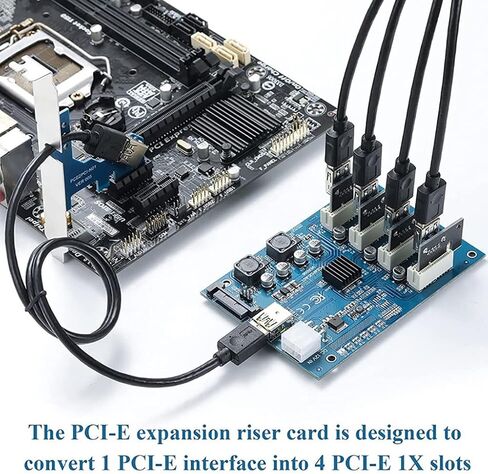

PCI-E 1X Multi Interface Card Solve the problem of insufficient PCI-E 1X for desktop computers.

But even with USB 3.0, the theoretical bandwidth is no more than 5Gbps (625MB/s), and divided into four and then stripped of losses that's only 150MB/s, while even PCI-E 1x has a single channel bandwidth of 250MB/s, so this product will give you the most slots but not enough bandwidth, and is only suitable for places where performance is not required.

The several PCI-E 1X slots are all gen*2 mode, even if they were gen*1 mode before, it doesn't matter.

Packing list:
Adaptor card*1
Small card*1
USB cable*1
