Optics

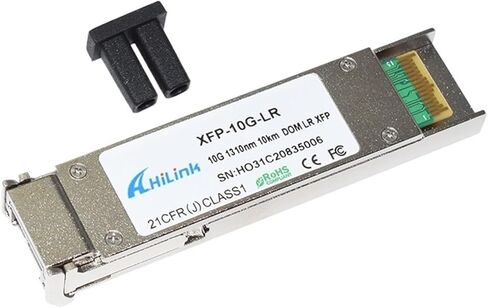

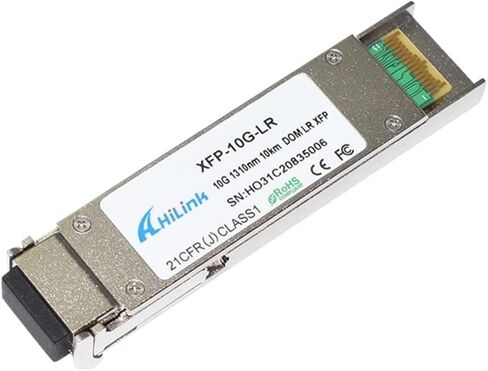

10G 1310nm 10km DOM XFP Transceiver
10G 1310nm XFP transceivers are designed for 10G Ethernet 10G BASE-LR/LW per 802.3ae, and it can support data-rate from 9.953Gb/s to 11.1Gb/s. Digital diagnostics are available via I2C interface as specified in the XFP . The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for datacom and telecom applications.
Features:
pluggable
Support 9.95Gb/s to 11.1Gb/s bit rates
Un-cooled 1310nm DFB laser
Distance up to 10km over SMF
Duplex LC connector
Below 2.5W power consumption
Digital Diagnostic Monitor Interface
Very low EMI and excellent ESD protection
+3.3V single power supply
Operating temperature range: 0 to 70 Temp
Applications:
10G BASE-LR/LW Ethernet
10G Fiber Channel
Other optical links
