DDR5 Desktop Mainboard Test Card, Memory Slot Tester Board with LED Light for Maintenance Motherboards with DDR5 Interface

KWD 7.500

Brand
Agatige
Category
Weight
29 g
1 +

Special Features

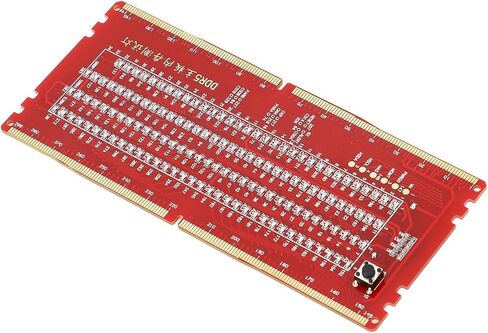

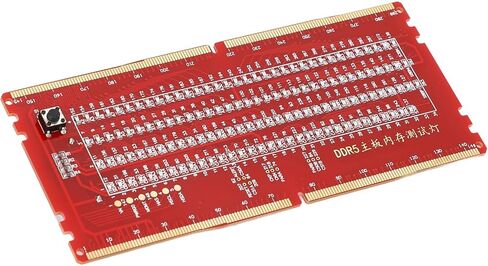

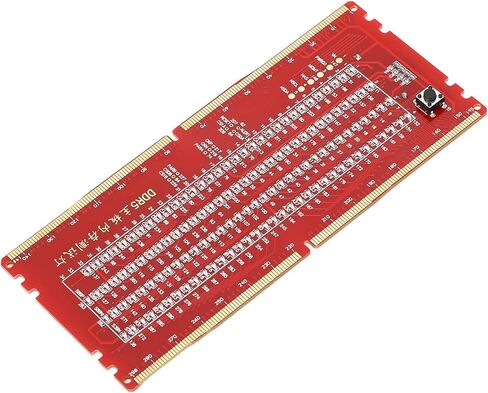

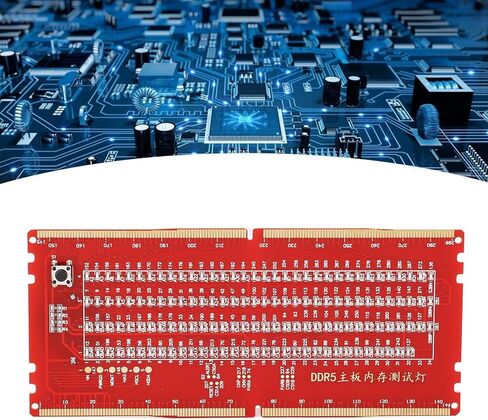

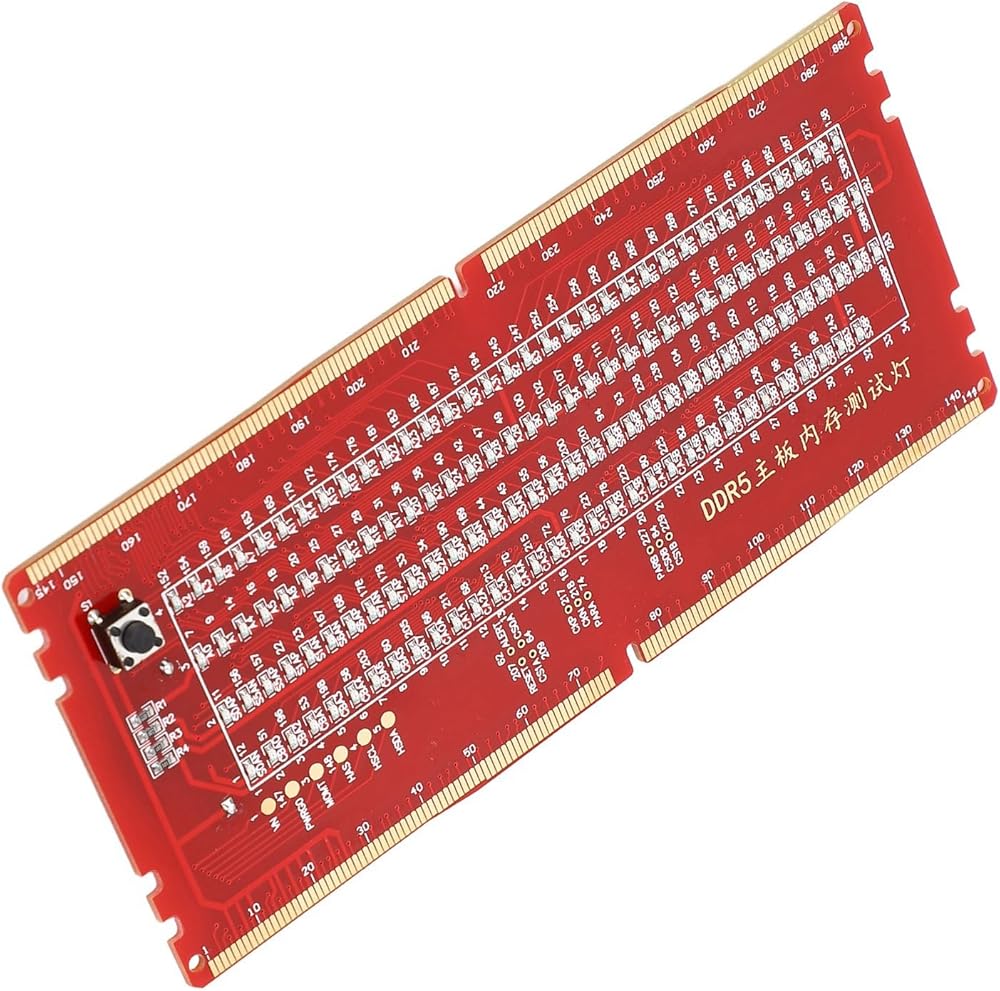

  • COMPREHENSIVE SUPPORT FOR DDR5 MOTHERBOARDS: This DDR5 desktop motherboard test card is designed to support DDR5 interface motherboards, compatible with and platforms, accurately displaying open and short circuits on data and address lines through LED indicators, a handy helper for maintenance personnel
  • PROFESSIONAL-GRADE MOTHERBOARD TROUBLESHOOTING: Suitable for solving the motherboard can not start, no display, can not read the memory and other faults, is an indispensable tool for computer motherboard repair. Ensure the stability of the testing process
  • LIGENT IDENTIFICATION OF SIGNAL ANOMALIES: The test card can ligently identify and display signal anomalies on DDR5 memory pins, identified by pin number rather than signal name, making it easy for users to quickly locate the problem and improve repair efficiency
  • ADAPT TO DIFFERENT MOTHERBOARD DESIGNS: Considering the design and chipset differences of different motherboard manufacturers, various signals on the test card may be displayed differently. It is recommended to use the same type of motherboard for comparative judgment to ensure the accuracy of the diagnostic results
  • CONVENIENT OPERATION, WIDELY APPLICABLE: The test card supports all DDR5 memory mounted on the CPU, and does not support memory on Millbrook or NB. When one side cannot be inserted into the memory slot for testing, it can be easily switched to the other side for testing, meeting a variety of repair needs

Description

Item Type: DDR5 Desktop Mainboard Test Card

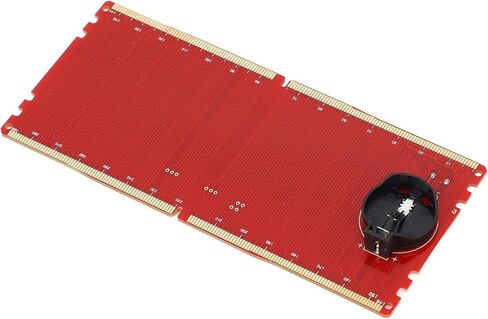

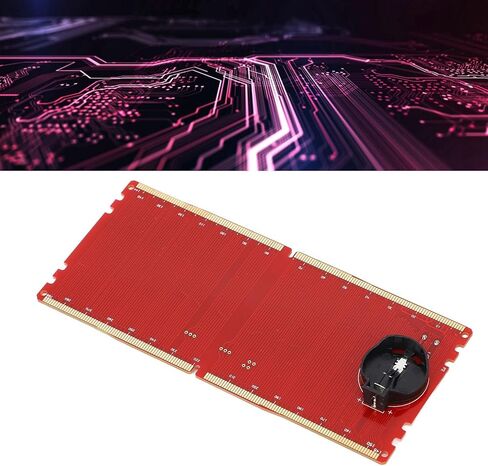

Battery: 1 x button battery (delivered without battery)

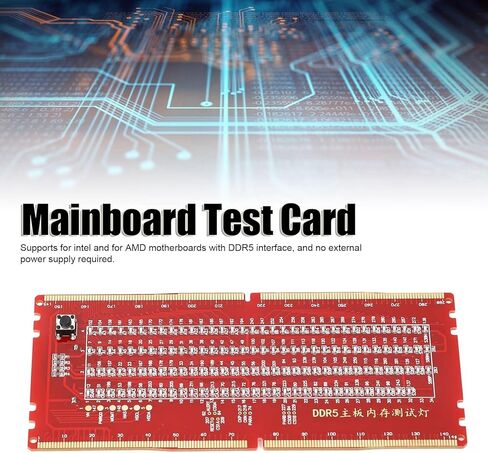

Adaptation: The DDR5 tester supports all motherboards with DDR5 interfaces from for and for , and uses LED to indicate the open circuit and short circuit of the data line and address line.
Application: It is used to repair motherboard failures such as no boot, no display, and no memory reading. An essential tool for repairing computer motherboards.
Memory Type: UDIMM

Package List:
1 x DDR5 Desktop Mainboard Test Card

Note:
1. When the DDR5 tester is testing the motherboard, the motherboard must be plugged into the CPU, and the test light will be on, because the signals of the memory part are connected to the CPU.
2. After the battery of the tester has been used for many times, the brightness of the tester will become dim. At this time, the battery voltage is too low, and the battery needs to be replaced in time.
3. The various signals of this tester, due to the different motherboard designs and chip sets of various motherboard manufacturers, some signals may be displayed differently. Please use the same motherboard to compare and judge.
4. There are two types of interface for desktop DDR5 currently on the market. When one side cannot be inserted into the memory slot for testing, please switch to the other side for testing.
5. The memory on the motherboard varies according to the usage, the signal names on the memory pins will change, but the arrangement of all the pin numbers will not change, so the DDR5 light tester changes the name of the light to the pin number to make it convenient for customers to clearly know the pins with abnormal signals.
6. This tester with light only supports the memory hanging on the CPU. Memory hanging on for Millbrook or for NB is not supported.
