Model 4508: USB 3.0 Switcher with 2 Positions (A, B) and RS232 Remote Control Switches Between Two USB 3.0 Devices from One Computer or Common Device, Catalog # 304508

KWD 370.500
– 1 +

Special Features

  • The Pathway USB 3.0 Model 4508 is our most popular USB Switch. Allowing quick connection to any one of two hi-speed USB 3.0 interface devices from one COMMON device! Ideal to connect a computer to multiple USB 3.0 peripherals such as cameras, printers or scanners. Field proven in Conference Rooms for Switching Creston Processor Camera Systems
  • The REMOTE RS232 ASCII commands that allow the user to control switch position, lockout front panel operations, obtain switch status, as well as, query firmware version number, query serial number, and enable/disable autosend of switch positions.Front panel LED's display switch position and power status. Attractive all metal black box packaging provides EMI/RFI shielding.
  • The switch ports are transparent to all data. All 8 pins of the USB 3.0 interface are supported. The unit maintains last set position on power loss. Front-panel pushbutton control.
  • Model 4508 is both USB 3.0 and USB 2.0 Compatible! Manually or Remotely Switch between two USB 3.0 Type A devices to one USB 3.0 Type-B device without having to disconnect cables. Share multiple USB 3.0 devices between one Host or PC.

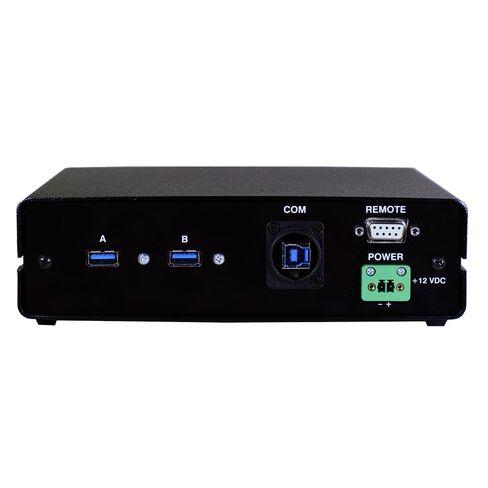

  • PORT CONNECTORS: (2) USB 3.0 Type-A connectors labeled A, B (1) USB 3.0 Type-B connector labeled COMMON. FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching. DISPLAY: (2) Front panel LED's display switch position and power status. REMOTE: (1) DB9 (F) connector on rear panel accepts ASCII RS232 Serial Data for Remote Control operation. POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500 mA to the unit. Has 2-prong, US, non-polarized plug. DIMENSIONS: Desktop configuration 8.11" W x 2.39" H x 7.34" D (20.6 x 6.1 x 18.7 cm) WEIGHT: Approximately 1.8 lbs (0.9 kg)
  • If you have any questions, contact our experts anytime on weekdays from 9am to 5pm. For contact information, please visit our seller page.

Description

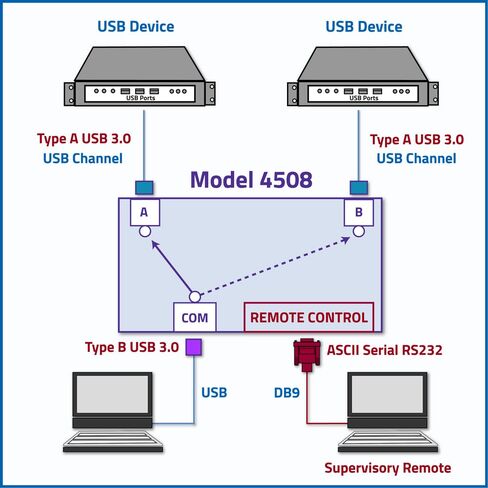

The PathWay Model 4508 USB 3.0 A/B Switch with Remote Control allows the user the capability of sharing a single PC connected to the COMMON port among two USB devices connected to the A and B ports. Model 4508 is both USB 3.0 and USB 2.0 Compatible! Packaged in a slim desktop style enclosure. The switch may be controlled manually via the front panel pushbutton or remotely from an RS232 serial port located on the rear of the unit. Switch position status may be attained via the front panel LED display or the REMOTE RS232 serial port (DB9) located on the rear of the unit.
