1. Remote Access to Serial Devices: The RS232 serial device server transmits two way transparent transmission of data between RS232 and Ethernet IP. It can configure and remotely manage the RS232 serial devices on the IP net. Support RS232 half duplex transmission, easy to set up.
2. Fast Connection: Quickly connect your device to the internet rs232 to ethernet converter supports data rates from 300 baud to 230400bps to instantly connect RS232 serial devices to ethernet.
3. Multiple Control Modes: Support working modes: TCP server, TCP client, UDP. Support auto MDI/MDIX, RJ45 port, 10 / 100Mbps. browser settings are supported.
4. Wide Compatibility: Supports all for Windows Systems, Such as for , for WIN7, for WIN8, for IN10. It is suitable for centralized control of household appliances, access control systems, various industrial automation, instrumentation, cash machines, etc.
5. Flexible Mounting: Rugged aluminum housing and mounting brackets provide reliable performance in virtually any environment.

Specification:
Item Type: RS232 to RJ45 Converter
Material: Aluminum Alloy
Chipset: IP210
Port Number: 1 Port 10/100M Auto MDI MDIX RJ45, 1 Port RS232
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
Net Media: 10Base T, UTP Above cat3, 10Base Tx, cat5 UTP
Data Rate: 10/100M
Forwarding Rate: 10 Mbps / 14880 pps, 100 Mbps / 148800 pps
LED Indicators: Link/Act, Power, TX/RX
Baud Rate Support: 300bps~230400bps
Operation Mode Support: TCP Server, TCP Client, UDP
Product Size: Approx. 78 x 72 x 23mm / 3.1 x 2.8 x 0.9in
Power Consumption: Maximum 1.5W
Support: Web Page Setting Parameters
Support: Factory Reset
Support: For Modbus RTU
Working Temperature: Minus10℃ to 55℃
Relative Humidity: 10% to 90% (Non Condensing)
Storage Temperature: Minus40℃ to 85℃
Relative Humidity: 5% to 90% (Non Condensing)
Support: All for Windows Systems, Such as for , for WIN7, for WIN8, for IN10
Applications: LED Display Communication Data; Machine PLC Data Reading and Writing, PTZ Control; Centralized Control of Home Appliances; Access Control Systems; Various Industrial Automation; Instrumentation; Employee Time and Attendance Machines; Highway Toll Stations; ATMs.

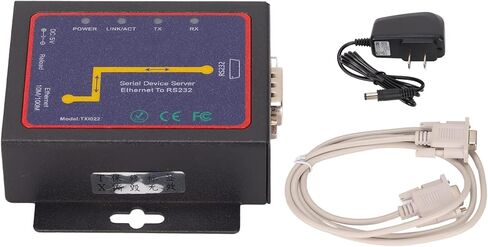

PackageList:
1 x RS232 to RJ45 Converter
1 x Cable

1 x Power Adapter
1 x User Manual
