Isolated Version:

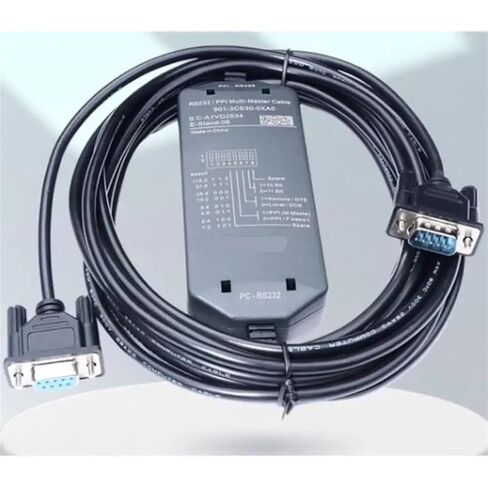

This is an optoelectronic isolated RS232/PPI multi-master station PPI programming cable, used for communication between S7-200 and PC, DTE devices such as Printers and bar-code readers.
It directly use the STEP7 MicroWIN software to communicate,no need to install driver,support PPI,multi-master station PPI and advanced PPI,support 187.5Kbps high speed communication,just the same as 6ES7 901-3CB30-0XA0,3 meters,with communication indicator.
RS232/PPIM+ is designed for industrial-type isolation cable. PC port and RS485 ports are equipped with surge protection and anti-lightning protection circuitry, which can be . It's applicable to the entire S7-200 Series It's particularly suited to the industrial scene which the communications interface is more easily damaged because of the greater interference. The protection circuit ensures the safe operation of the system.
Features
Full electrical protection. integrated isolated supply module/600W surge protection/Anti-static/Overvoltage protection/Overcurrent protection, Suitable for harsh environment.
Support PPI, Advanced PPI, Multi-Master PPI(Multiple Master Network)
Optically Isolated
Integrated 8-position RTS DIP-switch
compatible with 6ES7 901-3CB30-0XA0.
PC side 300-115.2kbps freeport, side 9600,19200,187.5kbps high-speed communication
Support 10/11 bit MODEM communication
Drivers are built into MicroWin software
Used for S7-200, S7-200CN, Smart700/1000, TP177, OP177,etc.
Usage
Similar as 6ES7 901-3CB30-0XA0 cable.
PC/PPI mode
Connecting to PC:
1) Set PPI/Freeport mode(DIP 5=0)
2) Set baud-rate (DIP 1,2,3)
3) Set local mode (DIP 6=0)
4) Set 11 bits (DIP 7=0)
Connecting to Modem
1) Set PPI/Freeport mode(DIP 5=0)
2) Set baud-rate (DIP 1,2,3)
3) Set remote mode (DIP 6=1)
4) Set 10 or 11 bits (DIP 7)
Multi-Master Mode
Need STEP7-Micro/WIN3.2 SP4 or higher
1) Set
