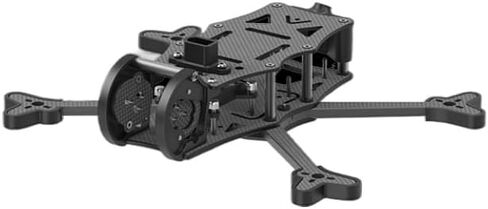

Discover the AOS 3.5 V5 Frame Kit, designed specifically Compatible With FPV enthusiasts looking to enhance their freestyle experience. This frame delivers innovative features and robust construction.
Key Features:
- Supports to 3.5" Props
- AOS X-Cell Anti-Vibration Technology
- 155° FOV with no props in view
- Fully compatible with O3 (soft mount + ND filters)
- Adapts to 19-20mm cameras (hard or soft mounted)
- Reinforced aluminum camera cage made from 7075 material
- Options Compatible With lengthwise or toilet tank mounting
- Supports standard motor mounting of ⌀9 - ⌀12mm (compatible with all 3 - 4" motors)
- mounting pattern: 27x21mm M2
- 32mm rear standoff spacing to fit all AOS 3.5 mounts
Specifications:
- Product Name: AOS 3.5 V5 Frame Kit
- Frame Wheelbase: 162mm
- Frame Dimensions: L133*W93*H30 mm
- Arm Thickness: 4mm
- Plate Thickness: 1.5mm
- Bottom Plate Thickness: 1.5mm
- Upper Plate Thickness: 2mm
- Max Flight Stack Height: 20mm
- Max VTX Height: 20mm
- Motor Mounting: 9x9-φ2mm/12x12-φ2mm
- Flight Stack Mounting: 20*20 Φ2mm / 25.5*25.5 Φ2mm
- VTX Mounting: 20*20/Φ2mm / 25.5*25.5/Φ2mm
- Weight: 68g
- Compatible with O3 air unit, Vista HD system, and BLITZ Whoop 1.6W VTX
Packing List:
- 1 x AOS 3.5 V5 Frame Kit
- 1 x TPU Parts
- 1 x Screw Bag
- 2 x Strap
- 2 x Pads
