ترام بني 600 ميغاهيرتز إلى 6000 ميجا هرتز هوائي قاعدة مسبقًا 5G/4G/3G/LTE/WIFI/Cellular 7 DBI كسب 50 قدمًا. كابل BR-400 W/N ذكر إلى موصلات ذكر

KWD 59

الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
1 +

مميزات خاصة

  • 7 dBi gain - pre-tuned 600 MHz to 6,000 MHz with VSWR less than 2.0:1, Wideband - 3-5/16-in. tall antenna weighing 8 oz. - no tuning needed, Heavy-duty solid brass construction

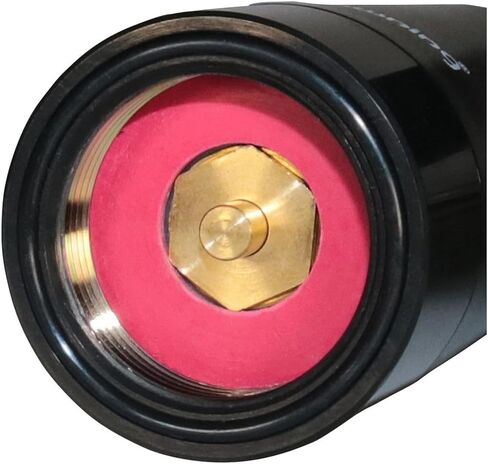

  • Black chrome-plated solid brass NMO base, Heavy-duty gold-plated plunger-type contact pin, 150 watts power rating

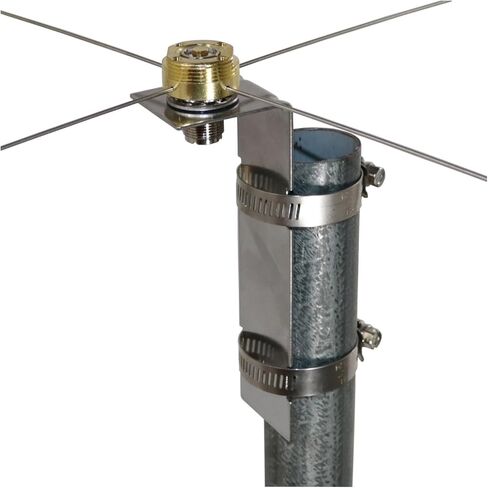

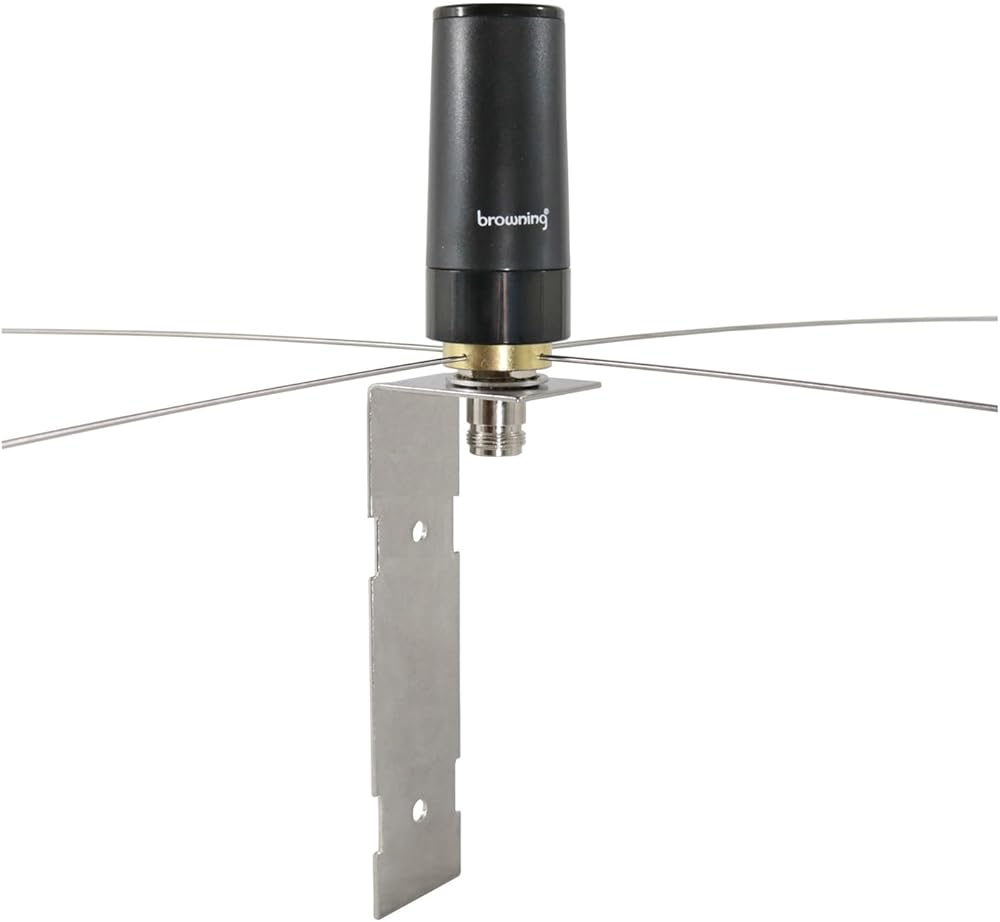

  • Base ground plane, Solid-brass NMO mount to N-female connector, Four 20-1/2-in. stainless steel ground plane radials
  • Stainless steel bracket, Installs on pipe or pole up to 2 in., 50-ft. BR-400 low-loss precision coax cable with high velocity gas-injected foam dielectric (85%), solid copper-coated aluminum center conductor (2.74 mm), double shield coverage of tinned copper 95% braid plus bonded aluminum tape, 50 ohms, black polyethylene jacket of 0.405 in. diameter (10.29 mm)
  • N-male to N-male connectors

وصف

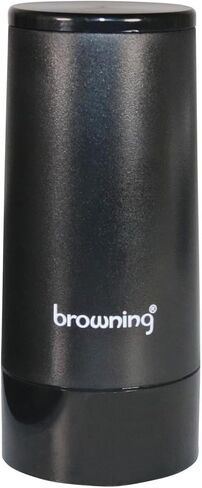

The Browning(R) BR-6001 is our top-of-the-line antenna, designed for exceptional performance and durability. With a 7-dBi gain, this wideband antenna is pre-tuned for frequencies ranging from 600 MHz to 6,000 MHz, ensuring you won't need any additional tuning. Standing at just 3-5/16-in. tall and weighing in at 8 oz., it's both compact and lightweight. Crafted from heavy-duty solid brass, the antenna features a black chrome-plated NMO base and a robust gold-plated plunger type contact pin, promising reliability and longevity. The power rating of 150 watts adds to its strength, while the base ground plane and solid-brass NMO mount to N-female connector enhance its versatility. It's equipped with 4 stainless steel ground plane radials, ensuring optimal performance. Installation is a breeze, as it can easily mount on pipes or poles up to 2 in. in diameter. To top it off, we include a 50-ft. BR-400 low-loss precision coax cable that boasts high-velocity gas-injected foam dielectric for superior signal quality. This cable features a solid copper-coated aluminum center conductor, double-shield coverage for maximum protection, and comes with N-male to N-male connectors. With a sleek, black polyethylene jacket, it not only performs outstandingly but also looks great in any setup. Elevate your connectivity experience with this high-performance antenna!
