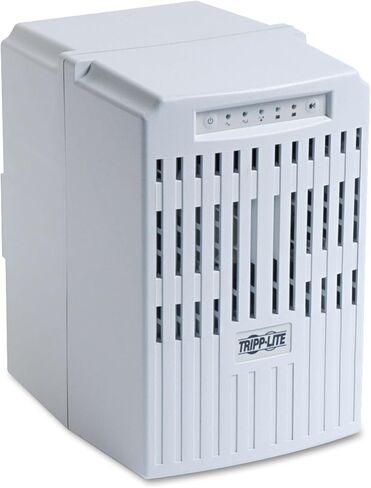

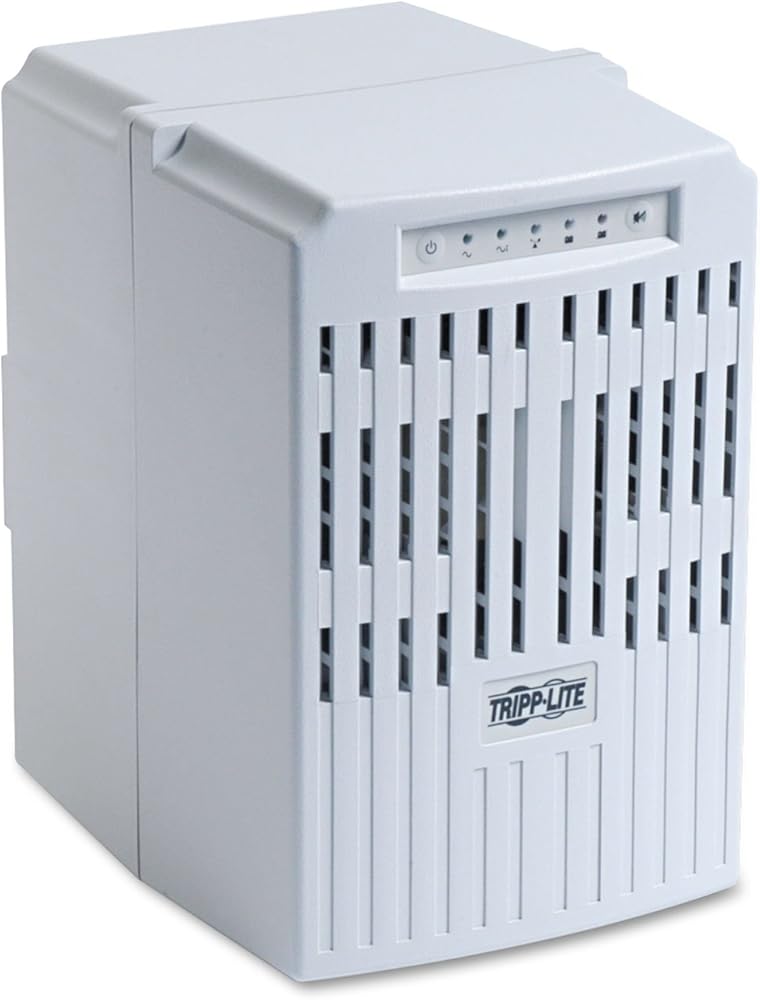

Tripp Lite's SMART 2200VS intelligent, line interactive UPS protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Small footprint, tower UPS system occupies only 106 square inches of floor space with a height of only 14.25 inches. Large capacity 2200 VA/ 1600 watt rated UPS system offers 7 minutes runtime at full load and 19 minutes at half load during power failures. Line interactive voltage regulation corrects brownouts as low as 79V and overvoltages as high as 147V to fully regulated 120V nominal output for smooth continuous operation of connected equipment. Includes a total of 9 outlets, 3 pairs of which can be individually powered off and back on via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical loads. Includes 2 DB9 and 2 USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Ships in attractive gray color scheme. Compatible with Tripp Lite's PowerAlert and Watchdog service software.

Featuring a compact tower form factor, Tripp Lite's SMART2200VS SmartPro® UPS System protects connected equipment against data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Featuring advanced automatic voltage regulation, it provides regulated nominal 120 VAC output without using battery power during brownouts and overvoltages. Large internal batteries support connected equipment during blackouts. Two USB and two DB9 communication ports support messaging of detailed UPS operational parameters and line power status plus direct monitoring of directly connected devices. Included PowerAlert UPS monitoring and unattended shutdown software provides management support for an unlimited number of network UPS systems.
Key FeaturesSMART2200VS UPS System Offers:Reliable protection for servers, networking equipment, telecom systems and more
Advanced line-interactive operation corrects brownouts and overvoltages
9 battery-supported AC outlets including 3 individually controllable load banks
Included PowerAlert software for complete network power management and control
$250,000 Ultimate Lifetime Insurance; 2-year warranty
Reliable protection for servers, networking equipment, telecom systems and more
USB/DB9/EPO Ports and LEDs
Ideal for Protection of Data Center/Network Rackmount EquipmentThe SMART2200VS provides advanced automatic voltage regulation, reliable battery backup and comprehensive power management capability in a compact tower form factor. Featuring nine outlets (2 x 5-15/20R, 7 x 5-15R), two USB ports and two DB9 ports (one serial, one contact closure) and SNMP capability, the SMART2200VS offers a complete power protection solution for protection for servers, storage devices and telecom equipment.
Advanced Automatic Voltage Regulation (AVR)Advanced AVR protects connected equipment from incremental hardware damage, data loss and performance problems that can be caused by brownouts (low-voltage conditions) and overvoltages. The SMART2200VS can correct brownouts as low as 79V and overvoltages as high as 147V, providing safe computer-grade power to all connected components without consuming backup battery power needed to support equipment through blackouts.
Controllable Load BanksThe SMART2200VS features three load banks, each with two outlets, that are individually controllable via a software interface for remote reboot of locked-up equipment or load shedding to maximize battery backup time for mission-critical equipment. 3 pairs of customized load management receptacles can be individually powered off and back on again via software interface to reboot remote equipment or shed less critical loads to extend battery runtime for the most critical equipment.
Reliable Battery BackupUPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The SMART2200VS features a large internal battery that provides 7 min. of battery support for a full load (1600 watts) and 19 min. for a half-load (800 watts). During normal operation, incoming utility power keeps the UPS battery fully charged so that backup power will always be available if needed.
Surge Suppression and EMI/RFI Line Noise FilteringA sudden power surge or spike can damage or destroy electronic components and wipe out irreplaceable data. The SMART2200VS features a 480-joule surge suppression rating to protect connected components and data from the harmful effects of power surges. Various electrical and radio sources can cause disruptive interference on the AC line. This line noise is a common cause of incremental hardware damage, data corruption and audio/video performance problems. The SMART2200VS incorporates technology that filters out disruptive line noise, preventing it from affecting your equipment.
PowerAlert SMART2200VS Runtime Chart
USB/DB9 Ports, SNMP Capability and Included PowerAlert SoftwareThe SMART2200VS features two USB ports and two DB9 ports (one serial, one contact closure). When used with Tripp Lite's included PowerAlert software, the USB and serial ports provide comprehensive network power monitoring and control. Capabilities include UPS and line power status messaging (on battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity), timed inverter shutoff after unattended shutdown, and UPS output power control for delayed or immediate reboot of connected devices. The contact closure port enables a directly connected device, such as an alarm or environmental sensor, to be monitored. The SMART2200VS also accepts an optional SNMPWEBCARD accessory that enables the UPS to operate as a managed device on the network.
Emergency Power-Off (EPO) CapabilityThe SMART2200VS features an EPO (RJ45) interface port that supports emergency shutoff in large facilities.
Front-Panel LED DisplayThe SMART2200VS features an array of five front-panel LEDs that show line power, battery power, AVR, overload and replace battery status. An audible alarm sounds to alert users to power failure, overload and low-battery conditions.
Versatile Installation OptionsThe SMART2200VS's compact tower form factor makes it easy to integrate with a wide range of home, business, commercial, industrial and IT applications.
Ultimate Peace of MindThe SMART2200VS comes with $250,000 Ultimate Lifetime Insurance coverage for connected equipment and a 2-year warranty.
Technical SpecificationsTripp Lite SMART2200VS SmartPro® UPS System Model: SMART2200VS Voltage compatibility: 120 VAC Frequency compatibility: 60 Hz VA/Wattage Capacity: 2200/1600 Battery runtimes (half/full): 19 min./7 min. Outlet quantity/type: 2 x 5-15/20R, 7 x 5-15R (3 individually controllable load banks) Communications ports: 2 x USB, 2 x DB9
SNMP slot Input cord: 8 ft. Input plug: 5-20P Switches/LEDs/alarms: On/Off switch
Alarm cancel/self-test switch
5 LEDs
Audible alarm Dimensions (HWD): 14.2 x 9.2 x 12.0 in. (compact tower) Weight: 52 lbs. UPS housing material: PVC Agency approvals: UL 1778 (US) / CSA (Canada)
NOM (Mexico)
FCC Part 15 Category A (EMI)
RoHS What's in the BoxSMART2200VS UPS System
PowerAlert Software CD
2 x 6-ft. USB Cable
2 x 6-ft. DB9 Cable
