Monitor Stands
2) Technical parameters >>>>>>

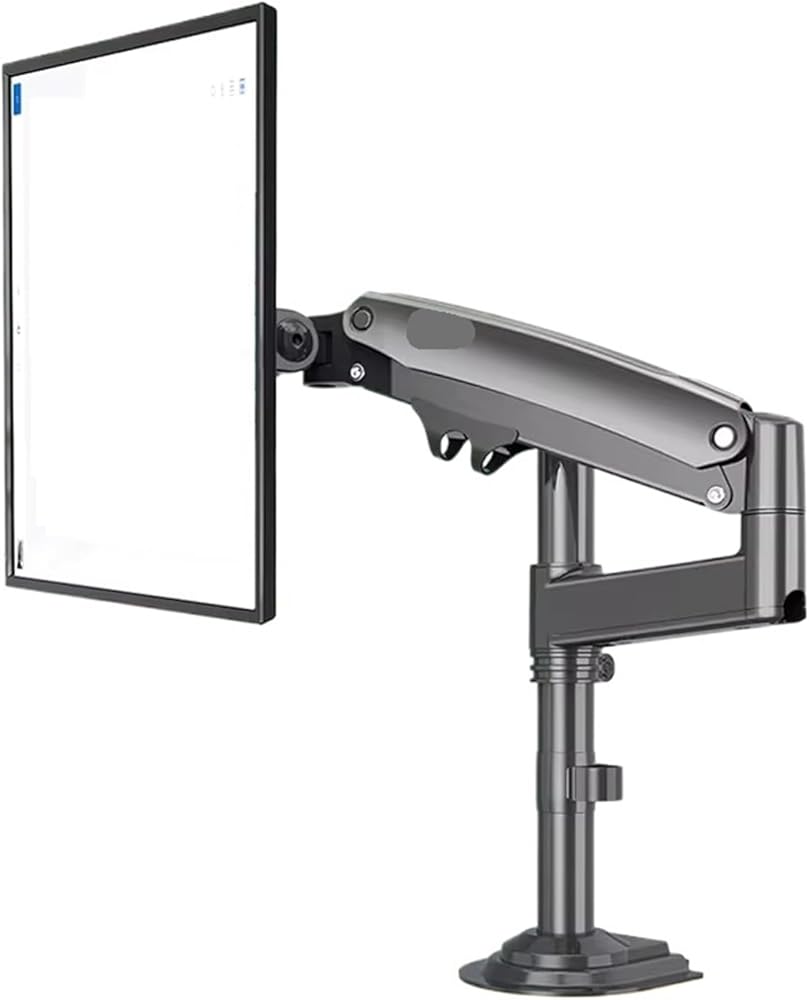

Model: -H100
LCD/monitor size: 22"-35" for H100 (2-12KG), 17"-30" for H1100 (2-9KG)
Adopting air pressure structure, convenient for up and down movement

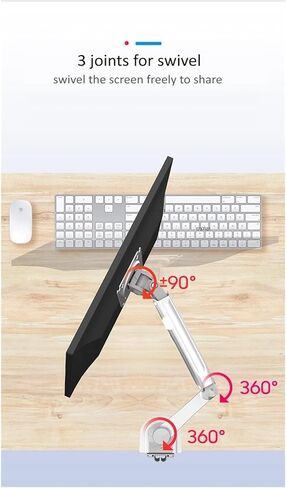

Rotate 360 degrees
Up/down tilt: 85°/-30°
Rotation: 180°
Load: 2-12kg/2-9KG (please make sure your screen is within this range, otherwise the gas spring of the bracket will not work)

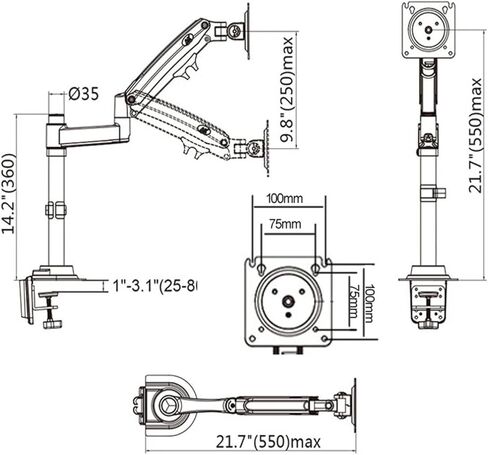

Hole size:
H100: 75x75 mm / 100x100 mm
H100 with adapter: 75x75mm/100x100mm/100x200mm/200x200mm
Includes clamp mount and grommet mount:
Grommet base is suitable for hole diameter 10mm-50mm, table thickness: 20-90mm (if your table thickness is between 80mm-120mm, please select the correct option here)
Clamp: Tabletop thickness between 25-80mm
Adjustable size: Yes
Number of panels: 1
Applicable screen size: 35 inches
Adjustment: Fully dynamic
Maximum load: 12kg
Installation method: desktop
Standard hole spacing: 75x75, 100x100
