Product description

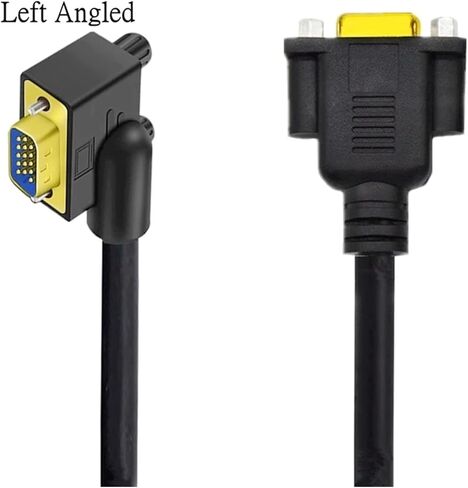

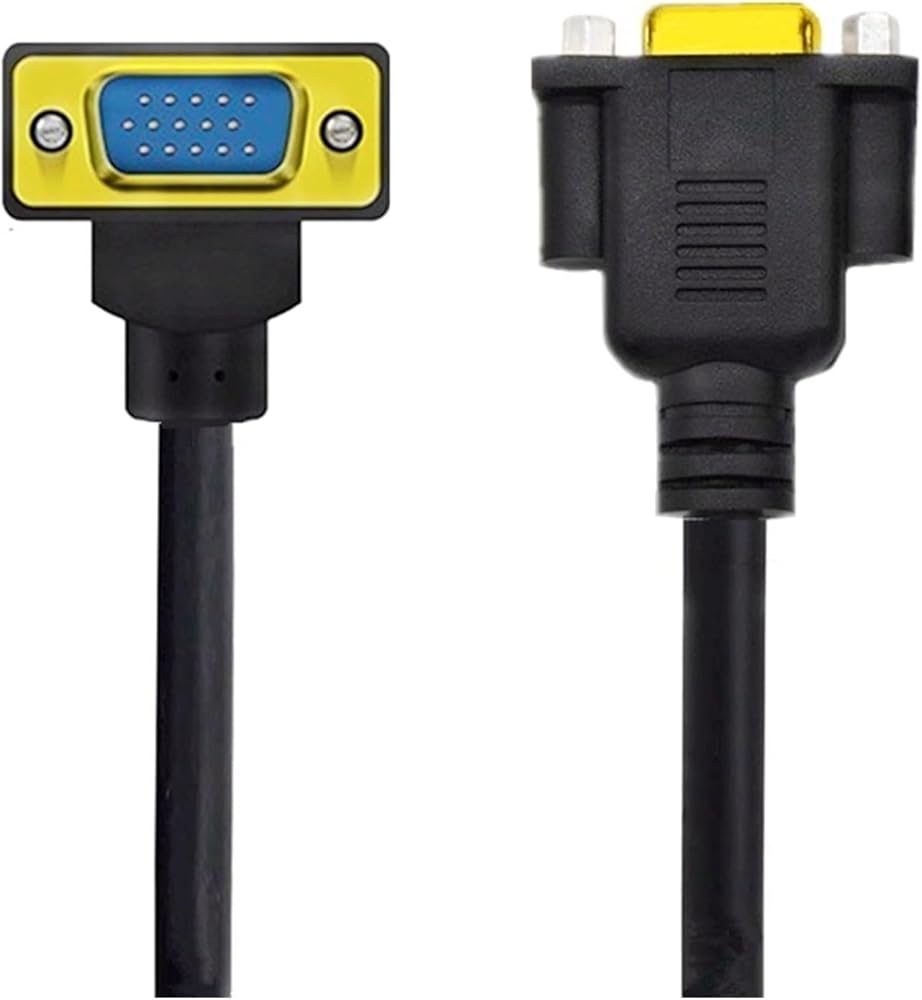

Gold Plated 90 Degree Cable, Male to Female Cable 1080P Full HD Computer Monitor Cable 0.5M

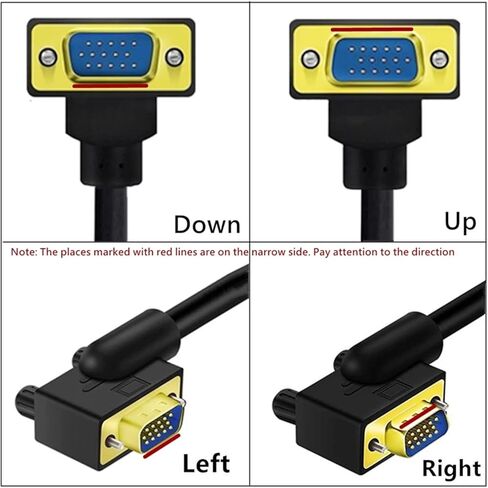

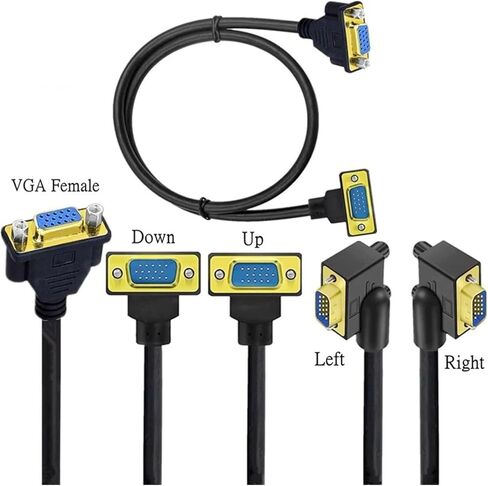

High definition cable computer connects to TV connecting cable 15P male/VGA 15P female 90 ° elbow connecting cable 0.5m/1m/1.5m;
interface is the most widely used interface type on video cards, and most video cards have this interface. The port has 1 male and 1 female two male two female type
The interface is a D-type interface, which has 15 pinholes in total and is divided into three rows of five. Among them, in addition to two NC (Not Connect) signals, three display data buses and five GND signals, three RGB color component signals and two HSYNC and VSYNC pins compatible with the scanning synchronization signals are more important. RS343 level standard is adopted compatible with the color co/mpone/nts in interface. The peak to peak voltage of RS343 level standard is 1V. interface is the most widely used interface type on video cards, and most video cards have this interface. Some video cards without interface but with DVI (Digital Visual Interface Digital Video Interface) interface can also be converted from DVI interface to interface through a simple adapter. Generally, video cards without interface will be provided with such adapter.
Nowadays, most computers and external display devices are connected through analog interface. The display image information generated digitally inside the computer is converted into R, G, B primary color signals and line and field synchronization signals by the digital/analog converter in the graphics card, and the signals are transmitted to the display device through cables. compatible with the analog display equipment, such as analog CRT display, the signal is directly sent to the corresponding processing circuit to drive and control the picture tube to generate images. compatible with the LCD, DLP and other digital display devices, corresponding A/D (analog/digital) converters shall be configured in
