PH743U USB3 Type-E to IDC 19P Adapter Chassis Front Type-A USB-C Expansion Header for Motherboard Expansion Card

Parameter
Model:PH743U
Color:Black
Transfer speed: USB3.x (depending on the host side of the transfer speed)
Product Interface:USB 19P USB3.2 TYPE-E
Product Function: The motherboard TYPE-E or expansion card TYPE-E interface to USB 19P interface.
Product size: 26 * 25 * 10mm

Use features
TYPE-E to 19/20PIN Adaptor
TYPE-E to front panel connector, support motherboard/expansion card
Support two ports USB2.0 480Mbps, compatible with USB1.1 support one port USB3.2 5Gbps.

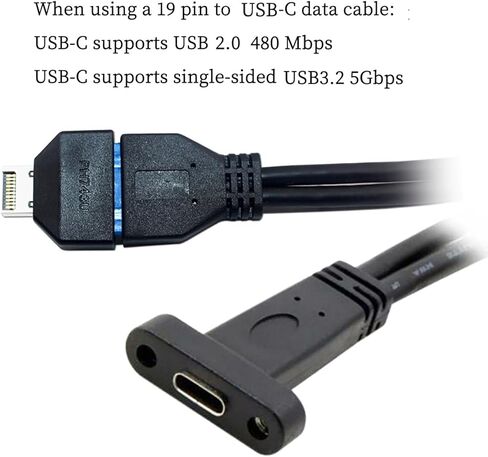

When using 19pin to USB-C cable:
USB-C supports USB2.0 480Mbps.
USB-C supports one port USB3.2 5Gbps.

When using a standard 19pin to two A-port cable:
When using only one USB3.2 device, plug in either port to support USB3.2 5Gbps.
When using two USB3.2 devices at the same time, only one port supports USB3.2 5Gbps, the other port only supports USB2.0 480Mbps.
Using non-standard 19pin to two A-port cables: only one port supports USB3.2 5Gbps, the other port only supports USB2.0 480Mbps.

When using 19pin to one USB3.2 A cable:
Support USB2.0 480Mbps, support USB3.2 5Gbps.

This product can support USB3.2 10Gbps, but USB3.2 10Gbps on the cable requirements are very high.
Bad cable will cause unstable phenomenon in 10Gbps devices. In this case, the user can add a USB extension cable in front of the device, at this time the host will be forced to recognize the rate of USB3.2 5Gbps, which allows the device to run stably.
