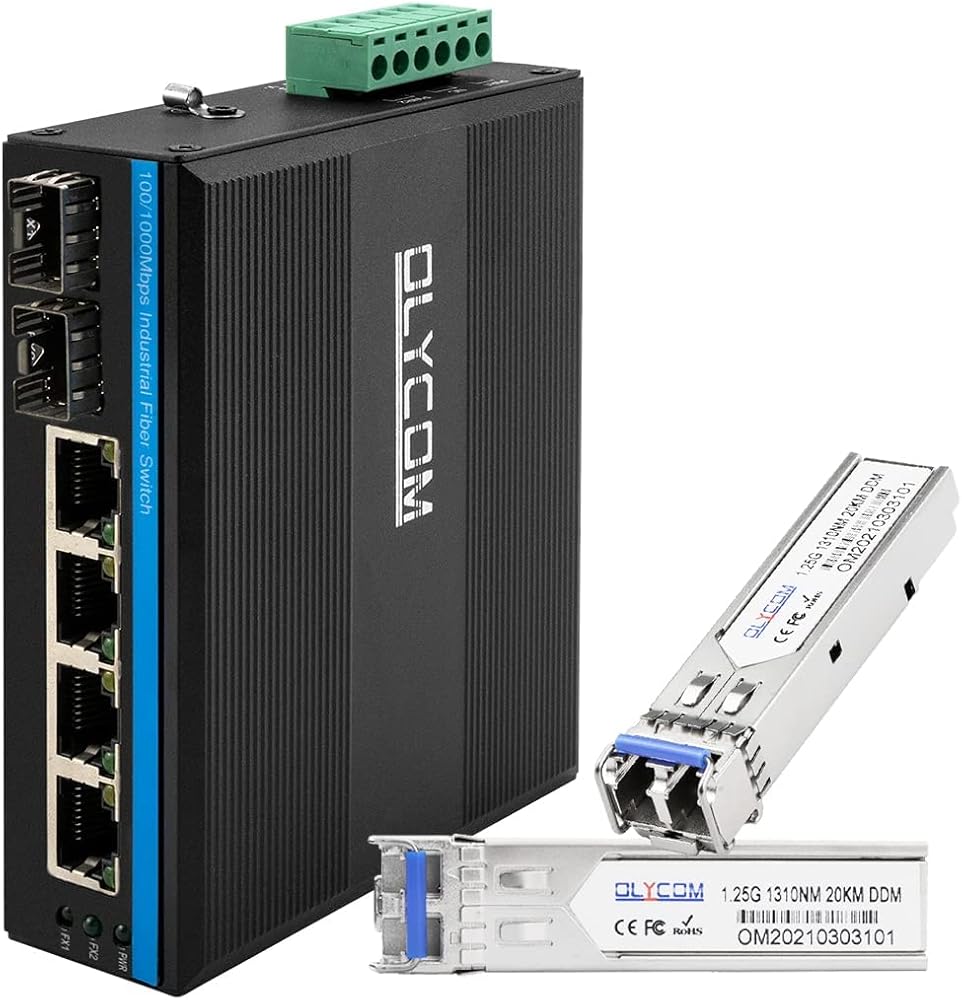

4-Port Outdoor Full Gigabit PoE+ DIN-Rail Fiber Network Switch 4 x Gigabit PoE+ Ports 2 x 1.25G SFP Fiber Ports 120W with 2pcs Industrial SFP Transceivers

KWD 40
Brand
OLYCOM
Category
Network switches
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • INTERFACE: 2×10/100/1000Base-X SFP uplink port ( with 2pcs industrial SFP modules 1000Base-LX) and 4×10/100/1000Base-TX UTP ports with POE ( NOT include power adapter).

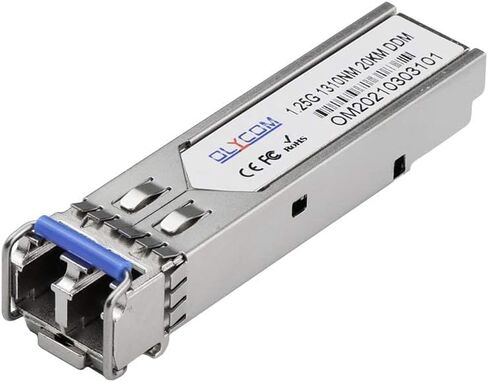

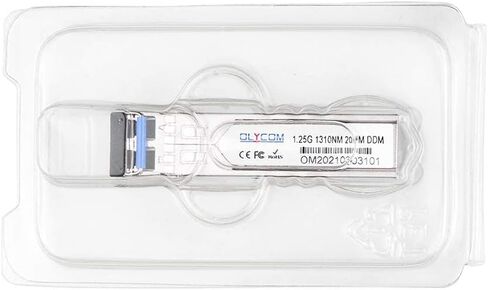

  • SFP MODULES: 2pcs industrial SFP transceivers which are up to 1.25Gb/s data links 1310nm Single-mode dual fiber 20KM LC. Support Hot-Pluggable.
  • POE PORTS: 4pcs full Gigabit Ethernet RJ45 ports with POE AT (30w each RJ45 port),120W totally (Not include power adapter).
  • EXTREME TEMPERATURE SWITCH: This full Gigabit PoE+ Switch is equipped with a rugged IP40 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate with a wide temperature range (- 40 – 75 °C (- 40 - 167 °F)) for harsh environments. The 4ports POE switch is Din-rail mounted.
  • WHAT YOU GET: 1pc 4-port outdoor DIN-Rail POE Fiber Switch, 2pcs industrial transceiver 1000Base-Lx ( 1.25G SM dual fiber 1310nm 20KM LC DDM) and lifetime technical support.

Description

6-Port Hardened Industrial Gigabit PoE+ DIN-Rail Fiber Network Switch 4 x Gigabit PoE+ Ports 2 x 1.25G SFP Fiber Ports 120W with 2pcs Industrial SFP Transceiver
1. Product Name: Hardened Industrial Gigabit PoE+ DIN-Rail Fiber Network Switch (2F+4TP)
2. Model No.: IM-FP244GE-SD20
3. Fiber Port: 2 x 1000Mbps ( WITH 2pcs industrial SFP transceiver, 1.25G, dual fiber, SM, 20KM, LC DDM)
4. Network Port: 4 x 10/100/1000M CAT5 ports
5. POE Port: 4 x 10/100/1000M RJ45 ports with IEEE802.3af/at, 15.4W/30 for each port. 120W in total (WITHOUT power adapter)
5. Switching features: Transmission mode: storage and forward; System bandwidth：40Gbps (non-traffic jam)
6. Network media: 10BASE-T: CAT3, CAT4, CAT5 unshielded twisted pair(≤100m);100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m);
8. PSU:Input voltage:DC 48-52V ; No-load power: 5W; Reverse connection: support
9. LEDs: Power, network, fiber
10. Working Temperature: -40°～ 75°C (-40°～ 176°F) tough extreme environment.
11. Safety: CE Mark, commercial; CE/LVD EN60950
12. Safety class: IP40 protection
13. Mechanical information: Shell: Corrugated metal housing

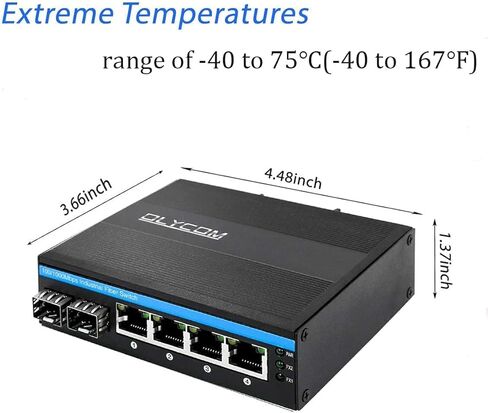

14. Mini size: 4.48 x 3.66 x 1.37inch

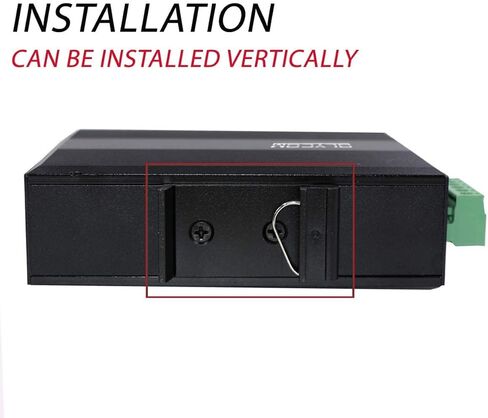

15. Mounting method: Din-rail mounting
Warranty
Replacement within 3years; 5 years repairing
