Features

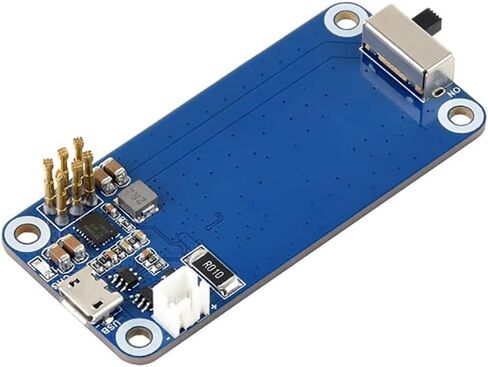

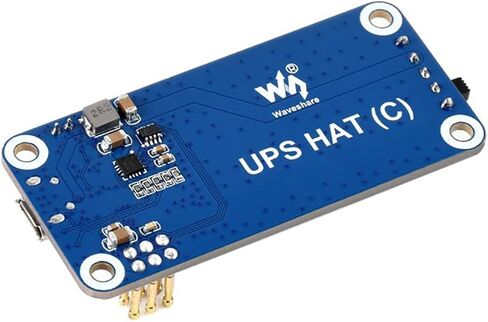

The UPS HAT (C) is an uninterruptible power supply module specialized for Raspberry Pi Zero series. It incorporates Li-po battery switching charger with
path management, voltage boost chip, and voltage/current monitor which allows monitoring the battery operating status via I2C bus.

Onboard spring pogo pins for connecting with Raspberry Pi Zero series boards
Li-po battery recharge chip, with dynamic path management, more stable power supply
Voltage boost chip, providing regulated 5V power output
I2C bus communication, monitoring the battery voltage, current, power, and remaining capacity in real time
Multi battery protection circuits: over charge/discharge protection, over current protection, and short circuit protection, more safe and stable
Recharging indicator for monitoring the battery operating status
Comes with development resources and manual

Specifications

OUTPUT VOLTAGE: 5V
CHARGER: 5V
CONTROL BUS: I2C

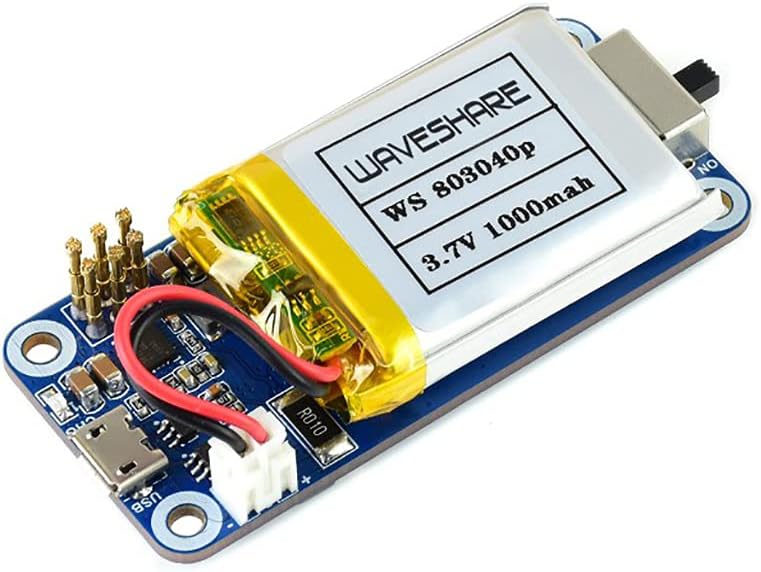

BATTERY: 803040 Li-po battery
1000mAh: 3.7V
MOUNTING HOLE SIZE: 3.0mm
DIMENSIONS: 65 × 30mm

Package Content

1. UPS HAT (C) x1
2. 1000mAh Li-po battery x1
3. Screws pack x1

Resource download

http://www.waveshare.com/wiki/UPS_HAT_(C)
