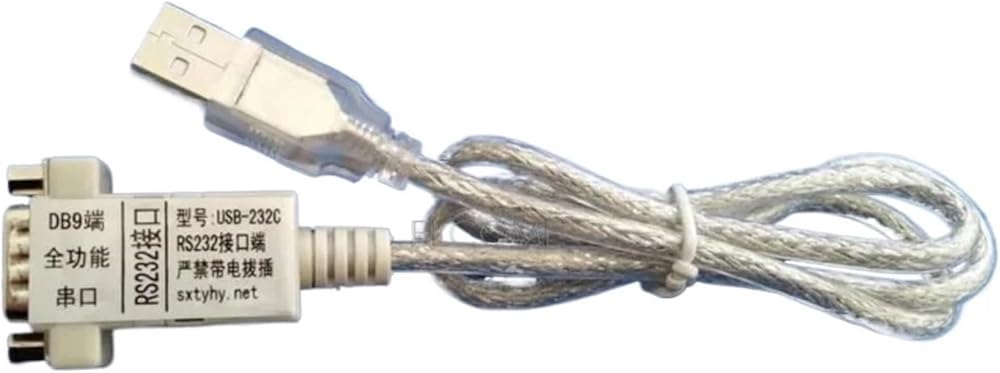

USB to 9-wire RS232 converter
USB to 9- wire RS232 port : Model : USB-232-A ( really full-featured DB9 pin serial port )
The product is completely safe industry-standard design . Port voltage of ± 10V, a very good drive capability. RS232 serial operation and electrical performance desktop exactly the same , can direct hardware I/O operations , application programmers who , like access to the same physical RS232 port .
The pin arrangement is as follows:
1 ---------- DCD (input)
2 ---------- RX (receive)
3 ---------- TX (Send)
4 -------- DTR (output)
5 ---------- GND
6 -------- (input)
7 ----------- RTS (output)
8 -------- CTS (input)
9 --------- RI (input)
Features:
Power Supply: No external power supply, power supply by USB port;
System Requirements: WINDOWS98 / ME / 2000 / XP / server2003 / VISTA / server 2008 / WIN 7/ 64/32-bit
Interface Standard: comply with TIA / EIA RS485 / RS422 / 232 standards;
Support the baud rate range:300 bps-230k bps;
Fully comply with the USB 2.0 standard, compatible with USB1.1;
Supports RS-232 interface, a standard DB9 pin connector
Simpleinstallation, highcompatibility, High-speed conversion data communication
Support remote wake-up and power management;
Supports automatic handshake protocol.
support and Play and hot-swap (USB side);
work mode: asynchronous full-duplex;
Operation environment: -25 ° C to 70 ° C, relative humidity of 5% to 95%;
Transmission media: twisted pair or shielded cable;
Transmission distance: to meet the TIA / EIA of the RS485 / RS422 / 232 standards;
high-performance equipment designed for connection Moden, PDAs, also , Microcontroller and other industrial equipment, , communication equipment, etc.
USB cable length: 80 cm;
Weight: 35g;
Package Content:
1X USB to RS-232 Cable
The driver CD is not included
==========
Output Type : USB
Mod
