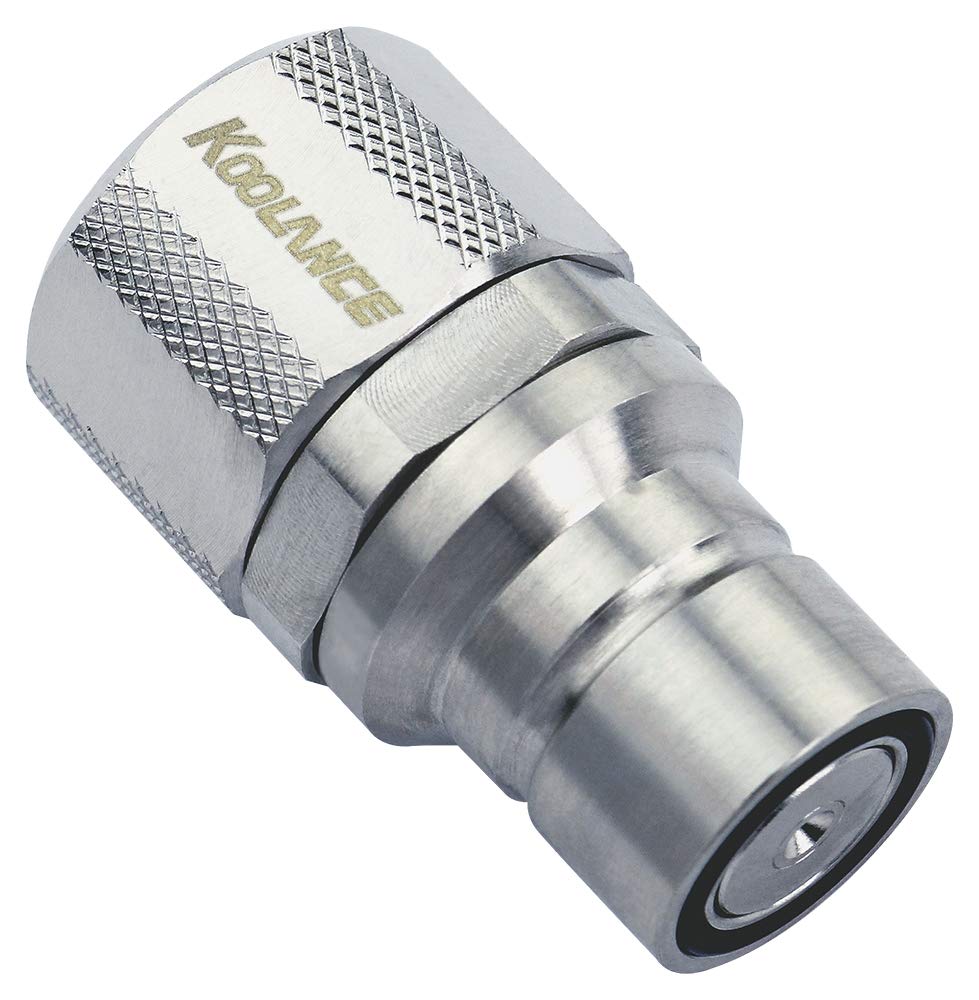

koolance qd3-ms10x13 qd3 ذكر انفصال سريع لا يوجد اقتران لا تبدد ، ضغط لمدة 10 مم × 13 مم (3/8in × 1/2 بوصة) in Kuwait

koolance qd3-ms10x13 qd3 ذكر انفصال سريع لا يوجد اقتران لا تبدد ، ضغط لمدة 10 مم × 13 مم (3/8in × 1/2 بوصة)

KWD 15
– 1 +

مميزات خاصة

  • Koolance patented quick disconnect no-spill coupling with automatic shutoff.
  • 10mm (3/8in) ID male straight connection with compression fitting.
  • It will only fit a Koolance QD3 female quick disconnect.
  • After pulling the ring on the female QDC side, the quick-disconnect fittings will separate.
  • Liquid on both sides will be automatically obstructed with approximately 0.2ml freed.

وصف

Koolance patented quick disconnect no-spill coupling with automatic shutoff. 10mm (3/8in) ID male straight connection with compression fitting. It will only fit a Koolance QD3 female quick disconnect.

After pulling the ring on the female QDC side, the quick-disconnect fittings will separate. Liquid on both sides will be automatically obstructed with approximately 0.2ml freed. Coolant volume lost upon disconnection will rise with internal pressure higher than 0.5kgf/cm2 (7psi).

Additional Specifications

• Materials: Brass, Nickel Plating, Stainless Steel, EPDM
• Max Temp. Operating Tolerance: 100°C (212°F)
• Max Pressure Tolerance @ 25°C: 8kgf/cm2 (113.8psi)
