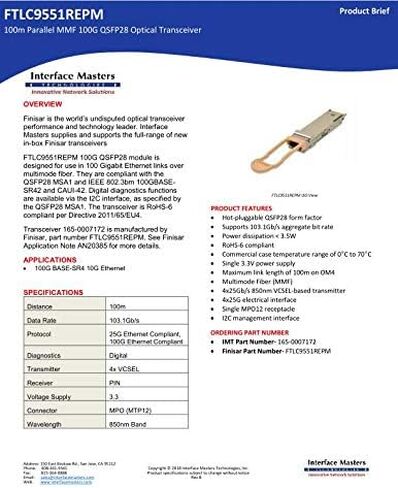

Finisar 100gbase-SR4 100m QSFP28 جهاز الإرسال والاستقبال البصري FTLC9551REPM

KWD 20
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

  • Finisar Reseller: Interface Masters Technologies
  • Hot-pluggable QSFP28 form factor
  • Supports 103.1Gb/s aggregate bit rate
  • Power dissipation < 3.5W
  • RoHS-6 compliant Commercial case temperature range of 0°C to 70°C Single 3.3V power supply Maximum link length of 100m on OM4 Multimode Fiber (MMF) 4x25Gb/s 850nm VCSEL-based transmitter 4x25G electrical interface Single MPO12 receptacle I2C management interface

وصف

FTLC9551REPM 100G QSFP28 module is designed for use in 100 Gigabit Ethernet links over multimode fiber. They are compliant with the QSFP28 MSA1 and IEEE 802.3bm 100GBASESR42 and CAUI-42. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA1. The transceiver is RoHS-6 compliant per Directive 2011/65/EU4.
