TV Mount Stands
Model: -H100
For 22" - 35" LCD/monitors
Adopting air pressure structure, convenient for up and down movement
Rotate 360 ​​degrees
Tilt up/down: 85°/-30°
Rotation: 180°
Comes with a cable system to hide cables
Load: 2-12kg (please make sure your screen is within this range, otherwise the gas spring of the bracket will not work)
Hole distance: 75/100 mm
Includes clamp mount and grommet mount:
Grommet base is suitable for hole diameter 10mm-50mm, table thickness: 20-90mm (if your table thickness is between 80mm-120mm, please select the correct option here)
Clamp: Desktop thickness between 25-80mm
Number of panels: 1
Applicable screen size: 35 inches
Adjustment: Full Dynamic
Maximum load: 12kg
Installation method: desktop
Standard hole spacing: 75x75, 100x100
Model: H100
Material: Aluminum alloy, cold rolled steel

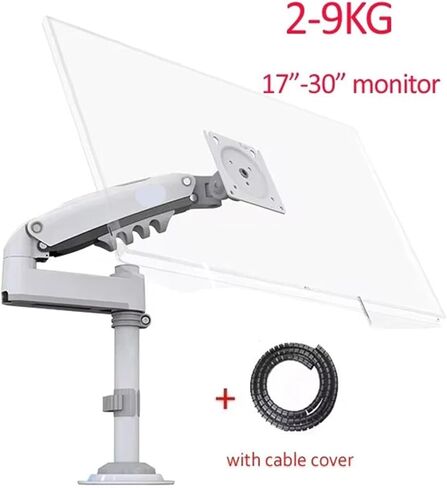

Monitor Mounting: 22" - 35" / 17" - 30"
Loading: 360 degrees
Hole distance: 75/100 mm
