Application: This module can be used in the field of voltage reduction where the input voltage is higher than the output voltage, such as batteries, power transformers, DIY adjustable voltage regulators, 24V car laptop power supplies, industrial equipment voltage reduction, 12V to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V, 36V to 24V, etc.
Voltage LED Display： With voltmeter display and self-calibration. Adopting more advanced voltage measurement processor, voltmeter error +-0.05V, range 0-40V. (Note: To ensure the accuracy of the voltmeter, please ensure that the input voltage is above 4.5V)

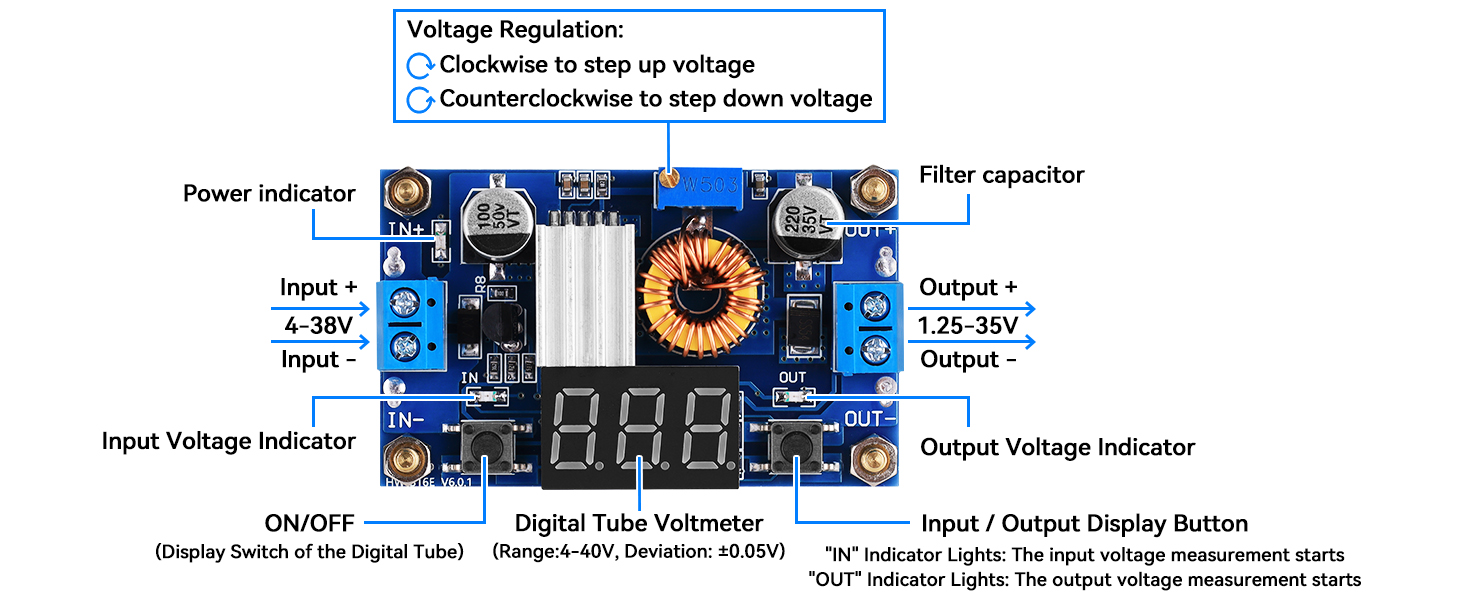

Voltage Measurement: Touch the button to switch between measuring input or output voltage, and an indicator light will show which voltage is being measured, and the setting will be saved even if the power is turned off and then turned on again. The voltmeter can be turned off by touching the button on the left when it is not needed.
Voltage Requirement: Input voltage 4.0-38V. (The input voltage must be 1.5V higher than the output voltage); adjustable output voltage range 1.25V-35V continuously adjustable. (The input voltage must be 1.5V higher than the output voltage); output current can reach 5A, it is recommended to use within 4.5A. Output power can reach 75W
High conversion efficiency: up to 96% (efficiency is related to input and output voltage, current, and voltage difference). Load adjustment rate S(I)≤0.8%, voltage adjustment rate S(u)≤0.8%, with overheat protection and short circuit protection functions. With terminal blocks, it is easy to use without a soldering iron, and the soldering wire connection points are reserved.
