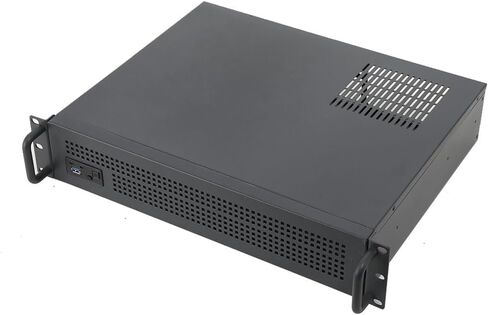

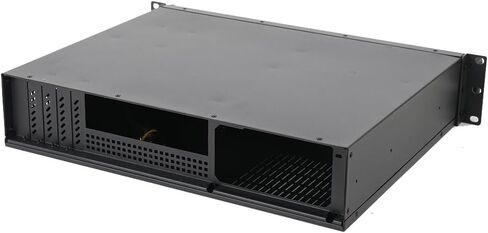

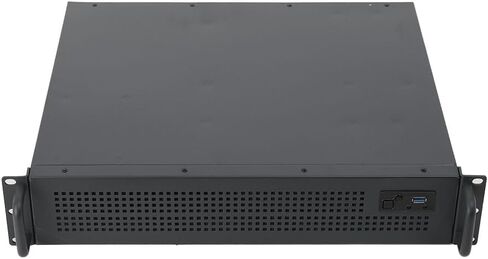

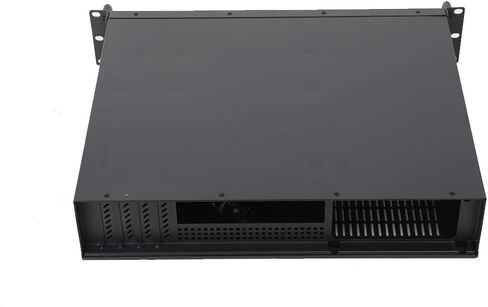

Extremely short (only 35cm deep) 14 special housing with 2U for use in rack environments with very low depth - such as flight cases or in narrow wall server cabinets; This very compact housing is ideal for stage use, as a mobile DJ system or in all situations where a powerful server must be installed within very cramped spatial conditions
The housing supports micro ATX and mini ITX motherboards; Ordinary ATX power supplies can be installed if they allow ventilation to the rear with an 80mm fan and have a maximum depth of 14cm; The use of power supplies with a large 120mm fan and side ventilation is possible
Form factor: supports mini ITX and micro ATX (9.6 x 9.6) motherboards

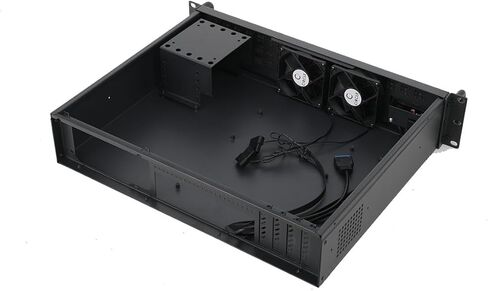

Ventilation: incl. two standard 80mm fans (80×80×25mm) from behind the front of the housing with removable air filter
Panel setup: Front USB port (2 x USB 2.0), power switch, reboot switch, power indicator, hard drive display
Description
Technical data:
Type: Rack server case
Chassis Type: Rackmount
Form Factor: 2U
Motherboard Compatibility: supports mini ITX and micro ATX (9.6“ x 9.6”) mainboards
Power supply: supports ATX
Dimensions: (WxHxD) 482mm x 89mm x 350mm
Connectors: Front USB port (2 x USB 2.0)
Hard disks: Supports 3 x 3.5 HDD or 2 x 3.5 HDD +1 x 2.5 SSD
Ventilation: incl. two standard 80mm fans (808025mm) from behind the front of the case with removable air filter
Expansion slots: 4 half-height expansion slots
Panel equipment: Front USB port (2 x USB 2.0), power switch, reboot switch, power indicator, hard disk indicator
