Specifications:
Compliance: HDMI 2.0, HDCP 2.2
Resolution: 3840x2160@60Hz YUV 4:4:4 8-bit and 3840x2160@60Hz YUV 4:2:0
Video bandwidth: Up to 18Gbps
USB data transfer rate: Up to 480Mbps (USB 2.0)
3.5mm audio jack: PCM 2-CH stereo
Power Adapter: 5V/2A
Product:
Dimensions: 6.57" (L) x 1.28" (H) x 3.27" (W)
Weight: 0.46 lbs
Color: Black
Housing material: Plastic

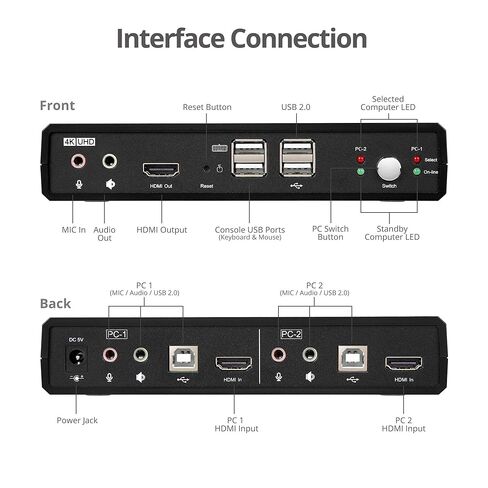

Interfaces/Ports:
2x 19-pin HDMI 2.0, Female, Input
2x 4-pin USB 2.0 Type-B, Female, Input
2x 3.5mm jack for Microphone, Female
2x 3.5mm jack for Stereo audio, Female
1x 19-pin, HDMI 2.0, Female, output
2x 3.5mm Microphone & Stereo Audio, Female, Output
2x 4-pin USB 2.0 Type-A, HID Devices, Female
2x 4-pin USB 2.0 Type-A, Hub, Female
1x Push button for KVM device switching
1x Power Jack
Power adapter:
Input: 100-240V, 50-60Hz
Output: DC 5V/2A
UL listed: E168210 / Level: VI
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degree F
Relative Humidity: 0% to 80% non-condensing
Certifcations/Standards: FCC, CE, RoHS
TAA compliant
Country of origin: Taiwan
System Requirements:
PC and Mac with an available HDMI and USB 2.0 Type-A port
Windows® 10 / 8.x / 7 (32-/64-bit)
macOS® 10.13 or later

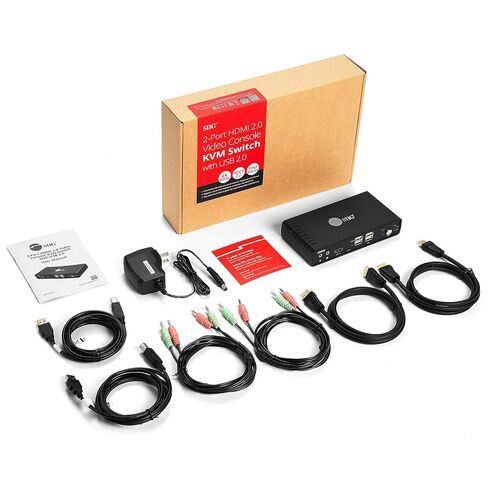

Package contents:

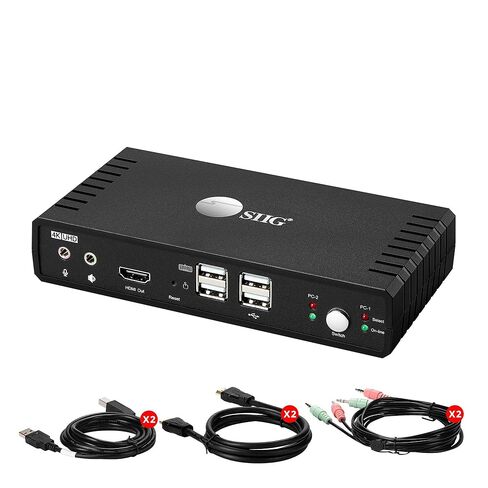

2-Port HDMI 2.0 Video Console KVM Switch with USB 2.0
Power Adapter 5V/2A
HDMI cable (2pcs)
USB 2.0 cable (2pcs)
Audio and Microphone cable (2pcs)
User Manual
