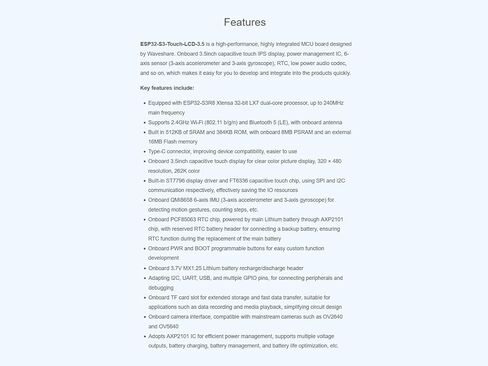

Features
Equipped with ESP32-S3R8 32-bit LX7 dual-core processor, up to 240MHz main frequency
Support 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built in 512KB of S-RAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
Type-C connector, improving device compatibility, easier to use

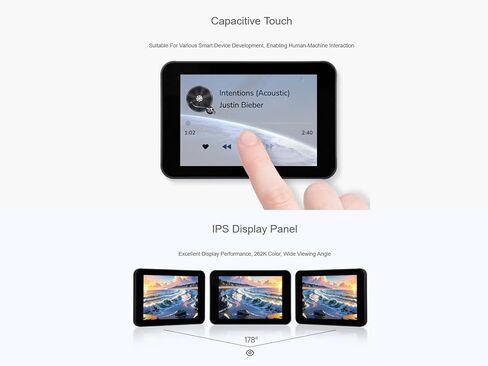

Onboard 3.5inch capacitive touch display for clear color picture display, 320 × 480 resolution, 262K color
Built-in ST7796 display driver and FT6336 capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc.
Onboard PCF85063 RTC chip, powered by main Lithium battery through AXP2101 chip, with reserved RTC battery header for connecting a backup battery, ensuring RTC function during the replacement of the main battery
Onboard PWR and BOOT programmable buttons for easy custom function development
Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
Adapting I2C, UART, USB, and multiple GPIO pins, for connecting peripherals and debugging
Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design
Onboard camera interface, compatible with mainstream cameras such as OV2640 and OV5640

Package Content
ESP32-S3-Touch-LCD-3.5 x1
6Ω 1W speaker x1
