R7-7840HS-32G/1TB

KWD 185
Brand
CWWK PC
Weight
1.8 kg
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Zen4 architecture, 8 cores and 16 threads, default TDP 54W, BIOS can be set to 64W, acceleration rate up to: 5.1/5.2GHZ
  • Zen4 architecture, 8 cores and 16 threads, default TDP 54W, BIOS can be set to 64W, acceleration rate up to: 5.1/5.2GHZ
  • AMD Radeon 780M, integrated graphics card has 12 2800MGPUHz high-frequency computing units, and its performance is basically close to the RTX 10060 mobile version
  • Dual SO-DOIM DDR5 memory slots, single slot supports 32G, can be expanded to 64G, default 5600MHz, backward compatible with 4800/5200MHz and supports server-grade SO-DIMM ECC memory
  • USB4 40G high-speed transmission interface, supports 8K 7680*4320@60Hz, PD power input (requires 120W) supports One-line Type-C, can be connected to the graphics card dock for expansion and connection to the monitor
  • Supports M.2 E key WiFi6, WiFi6 module recommended to use Intel-AX210, Realtek RTL8852BE
  • 4x Intel i226-V 2.5G network card chips, using integrated filter UDE network card head, the network card is compatible with software applications and the signal is stable

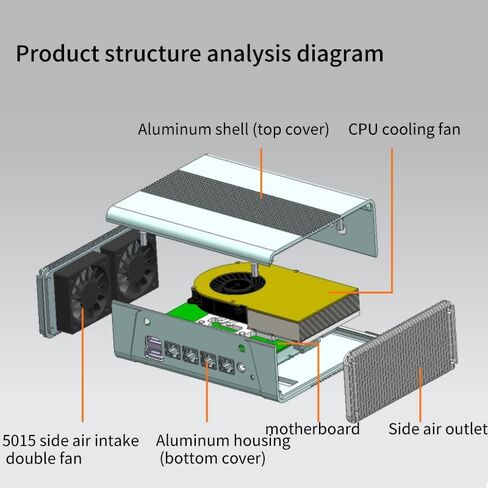

  • 2x 5010 double ball side fans, 1x CPU radiator turbine dual heat pipe cooling fan, and double air ducts form a scientific air duct and effective heat dissipation architecture
  • HDMI+DP+Type-C three-screen output, supports the same or different 3-screen display output, Type-C (USB4) supports 7680x4320@60Hz

Description

CPU: AMD Ryzen7 7840HS "Zen 4" architecture 8 cores 16 threads
GPU: AMD Radeon 780M graphics card frequency 2700MHz
AI Engine: AMD RyzenAI up to 10 TOPS

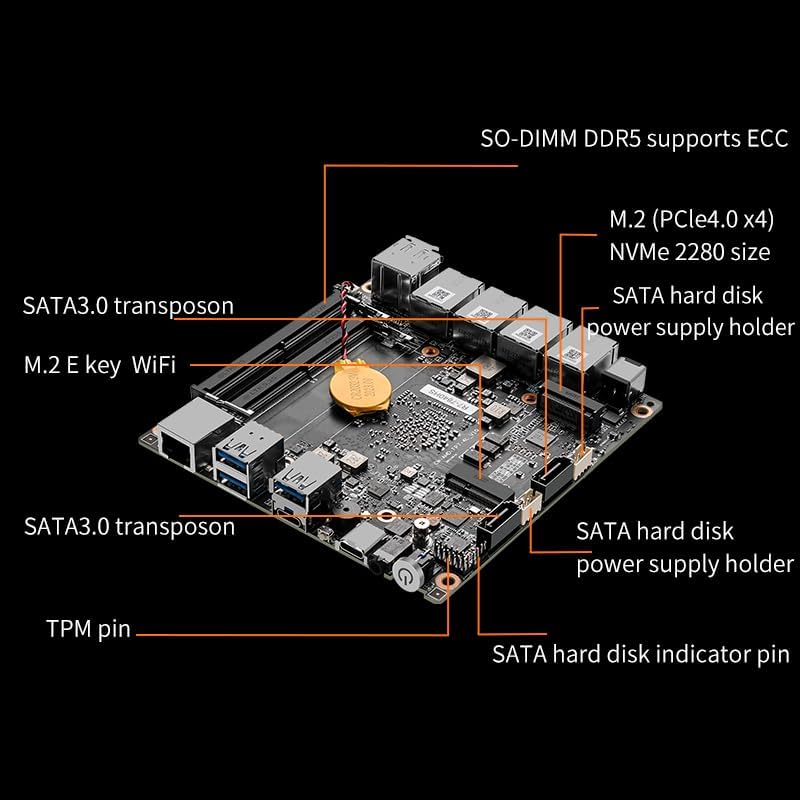

Memory: 2*SO-DIMM DDR5-5600 compatible with 5200/4800MHz supports ECC
Storage: 1*M.2 NVMe (PCIe4.0x4) 2* SATA3.0,1*TF

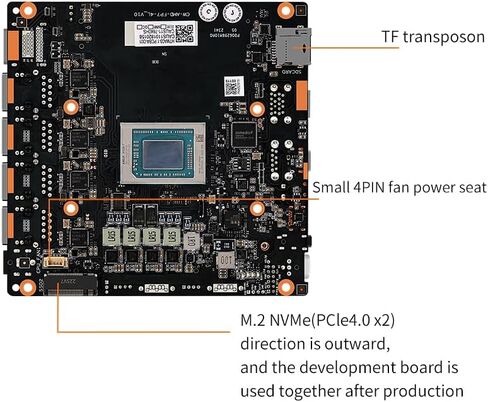

1 *M.2 NVMe (PCI4.0x2) side, can only be used after adapter board

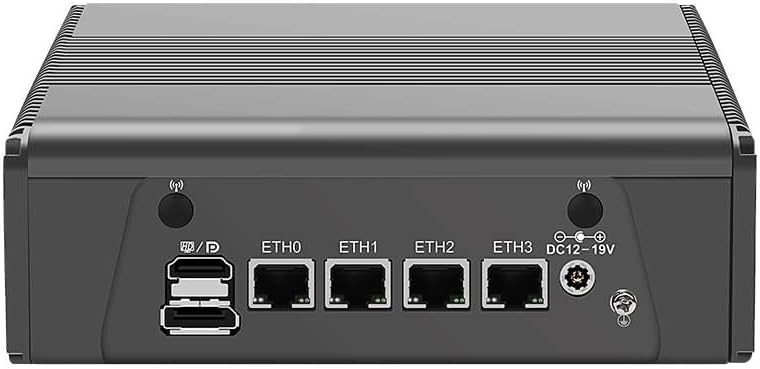

Network card: 4*Intel i226-V 2.5G UDE RJ45

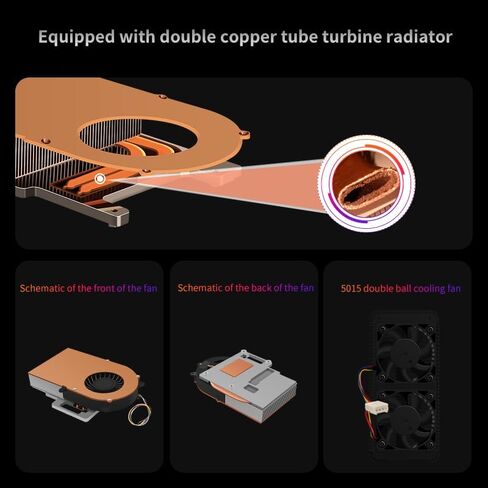

Cooling: 2*5015 double ball side fans, 1*dual heat pipe turbo fan CPU radiator

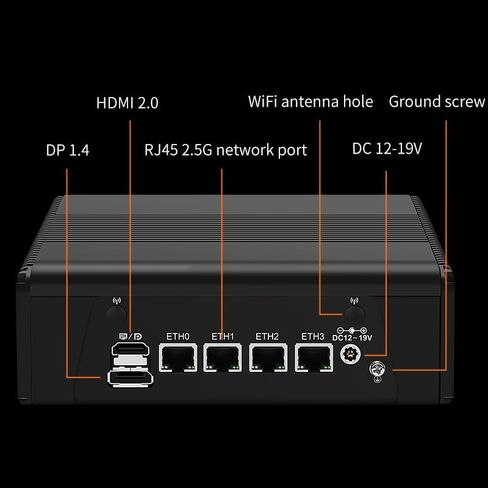

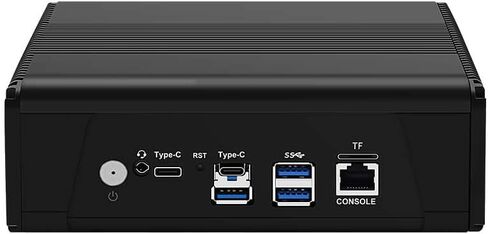

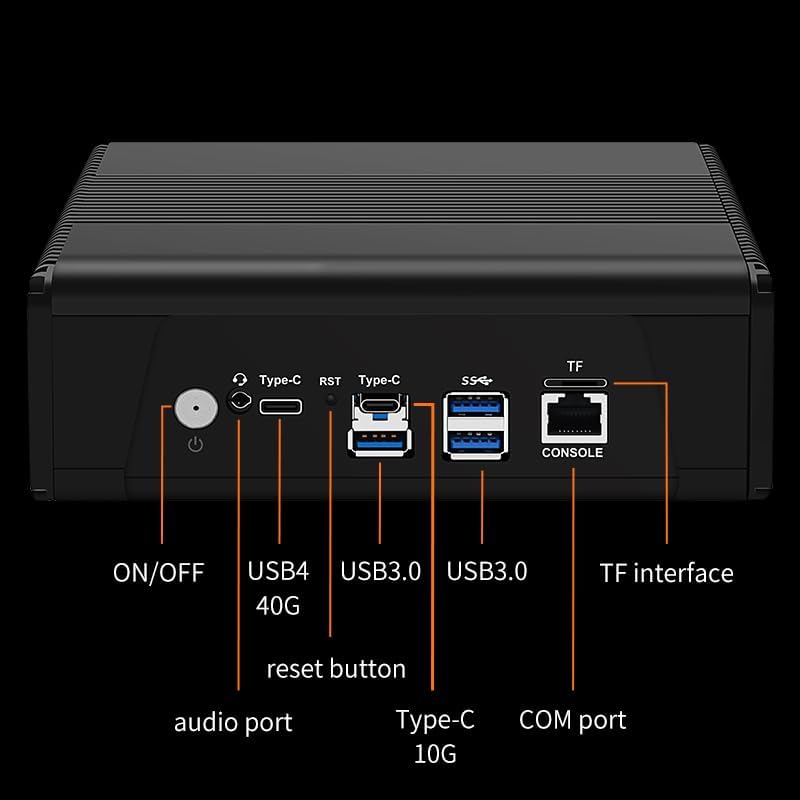

IO interface: 1* DC12-19V 55*25 connector
4* RJ45 2.5G network port
1*HDMI 2.0
1* RJ45 COM port
1*TF
3*USB3.0
1*Type-C(USB 40G)
1* Type-C 10G
1* RST reset button
1* 2-in-1 audio jack
Display output: 1* HDMI 2.0 4K 3840*2160@60Hz
1*DP 1.4 4K 3840*2160@60Hz
1*USB 8K 7680*4320@60Hz
Antenna link: M.2 E Key slot supports 2230 WiFi/WiFi7/Bluetooth module
Power supply mode: DC12-19V (55*25 connector)
Compatible systems: Windows10/Windows11/Linux
Product size: 176.2mm*131.7mm*Height: 60.0mm;6.93in*5.18in*2.36in
Color: gray/black (no color noted, random color shipped)
