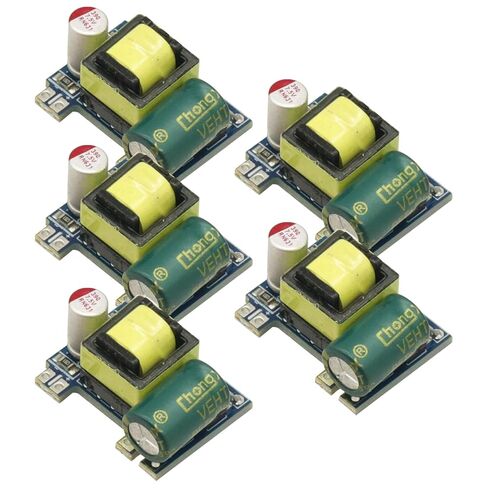

5pcs Mini AC to Dc Converter AC-DC 110V 120V 220V 230V to 5V 12V Converter Board Module Power Supply 5V 700mA (3.5W) Module Board

KWD 4

Brand
GODIYMODULES
Weight
31 g
1 +

Special Features

  • 5pcs Mini AC To Dc Converter AC-DC 110V 120V 220V 230V To 5V 12V Converter Board Module Power Supply 5V 700mA (3.5W) Module Board
  • Note: The color of the transformer will be change depend on Different batch
  • Output protection: over voltage, over current, over temperature, over work, short circuit protection, etc.
  • Mini AC-DC Converter Board Module Power Supply Input voltage range: AC50V-277V or DC70V-390V Output current: 5V0mA-700mA Output power: 3.5W
  • Output characteristics: Multiple voltage modules can be used in parallel to meet the needs of large currents in small spaces.
  • Output voltage: 5V +-0.15V no load and full load, light load minus 0.1V, rebound when heavy load, 50% load ripple 60mV
  • Output current: 5V0mA-700mA, enters constant current mode when fully loaded, Test resistance: 7 ohms (4.9V) Output indicator: red light Output power: 3.5W, efficiency is about 70-80%
