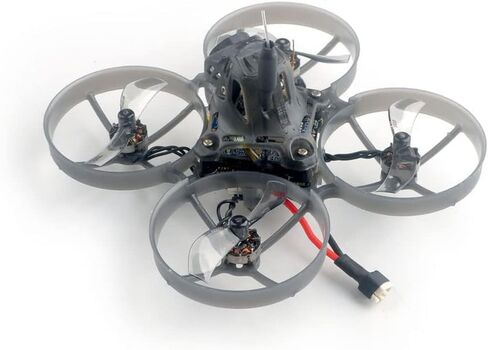

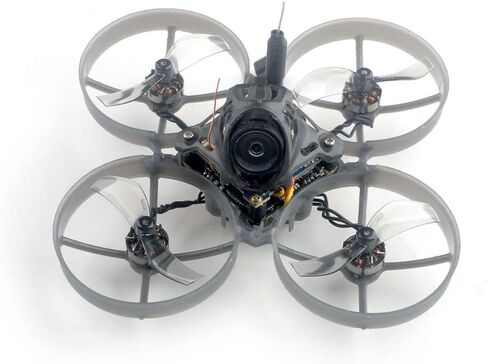

HAPPYMODEL Light Mobula7 1S HD 1080P 75mm Micro FPV Whoop Drone 75mm Brushless Whoop 5-IN-1 AIO Flight Controller Aircraft (ELRS)

KWD 105.500
Brand
HAPPYMODEL
Category
Quadcopters
ColorELRS
– 1 +

Special Features

  • Mobula7 1S HD version is a light and efficiency 75mm brushless whoop which provide 1080P HD video record function. A highly integrated AIO Flight Controller, supports ESC with a maximum current output of 12A.
  • We added blackbox for this 1s 75mm HD recorder whoop. Now it could support gyroflow. Although the external blackbox is not install perfectly and insert SD card is not friendly to most of the people, however we still think it's really excited for this small whoop could record a video with gyroflow steady and keep safe flying .
  • Flight controller: X12 ELRS V2.0 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280 X12 Frsky V1.0 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: ICM20689(SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1S battery input (DC 2.9V-4.35V)
  • Built-in 12A(each) Blheli_S 4in1 ESC Built-in Betaflight OSD(SPI Control) Built-in 5.8-G OpenVTX 0mw~400mw Built-in ExpressLRS 2.4G,Frsky D8/D16 Built-in voltage detection Built-in current sensor
  • Onboard 4in1 ESC: Power supply: 1S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Support BLHeliSuite programmable Default protocol: DSHOT300 Support Bluejay firmware When use Blujay firmware with 48khz, should set startup power to 1100/1200

Description

Pls Note: The drone is not include battery.

Features:
X12 5-IN-1 AIO flight controller
VTX Power up to 400mw
ELRS V2.0 Support
NEW RS0802 KV20000 motors
1080P HD Video record
Blackbox Ready support GYROFLOW
Smooth and powerful
Compatible for 1S Lipo/LIHV
Recommend 1S 450mah/550mah/650mah batteries (Not include)

Mobula7 1S HD 75mm Micro FPV whoop drone.
Wheelbase: 75mm
Size: 99mm*99mm*45.5mm

Receiver option: SPI 2.4GHz ELRS V2.0 , SPI Frsky D8/D16
1S only RS0802 KV20000 9N12P Motor
1 inch PC Material Propellers
RunCam Split3-Lite Camera

External Blackbox
Size:18*15.5*4.5
With Built-in Voltage booster module
Weight:1.5gram
SD Card support max to 32GB
SD Card need to use FAT32 Format
Notes: Need to careful to insert the TF SD Card , and don't pull it out while install the battery.
