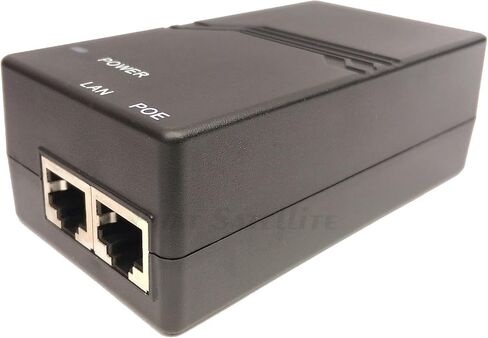

POE PORT PINOUT: 1. Pass Through & +48 VDC 2. Pass Through & +48 VDC 3. Pass Through & PoE Return 4. Pass Through & +48 VDC .75A. Pass Through & PoE Return 6. Pass Through & +48 VDC 7. Pass Through & +48 VDC 8. Pass Through & +48 VDC Power over Ethernet or PoE describes any of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. APPLICATIONS: -VoIP phones -IP cameras including pan–tilt–zoom cameras -Wireless access points -IPTV decoders -Network routers -A mini network switch installed in distant rooms, to support a small cluster of ports from one uplink cable. (Mini-switches do not usually provide PoE on their output ports.) (Many modern VoIP phones include a two-port mini-switch that can provide a network connection for a nearby computer.) -Network Intercom / Paging / Public address systems and hallway speaker amplifiers -Wall clocks in rooms and hallways, with time set using Network Time Protocol -Outdoor roof mounted radios with integrated antennas, 802.11 or 802.16 based wireless CPEs (customer premises equipment) used by wireless ISPs. -Industrial devices (sensors, controllers, meters etc.) -Access control and Help-points (intercoms, entry cards, keyless entry, etc.) -Lighting controllers and LED Lighting fixtures[13] -Stage and Theatrical devices, such as networked audio breakout and routing boxes -Remote Point of Sale (POS) kiosks -Physical Security devices and controllers -Inline Ethernet extenders
