Description:

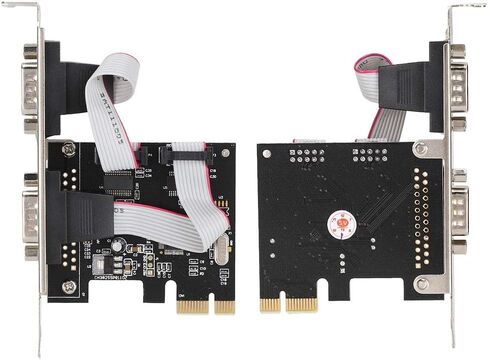

This PCI Express serial card, is specially designed for POS and ATM applications. The product with WCH382L chip supports a variety of mainstream operating systems, including and . In addition, the extended 2 rs-232 serial ports can support the communication rate of 230.4 Kbps, and provide modem control to ensure compatibility with all kinds of external serial port devices. Since the card is PCI Express x1, it can be installed on various PCI Express slots (including 4x 8x16x).

Serial Interface (RS232):
with industrial standard 16C450/16C550 UART
On-Chip 256-bit depth FIFOs in Transmit, support H/W, S/W control
Data rate of each serial port can be up to 250Kbps
Baud rate: 230.4 Kbps
Serial communication parameter data bits: 5, 6, 7, 8
Stop bit: 1, 2
Parity: None, Even, Odd, Space,
control: RTS/CTS, XON/XOFF
I/O address: Assigned by the BIOS
IRQ: Distributed by the BIOS
Serial RS - 232: TxD, RxD, RTS, CTS, DTR, , DCD, GND

Specifications:
Chip: WCH382L
Type: PCI-E to Serial Interface Card
Interface: 1 x PCI-E, 2 x Serial
Operating Systems: Support DOS, 8/7 / Vista/XP / 2000 / Server 2003-2008 32/64-bit, operating systems.
Package weight: 101g

Package Included:

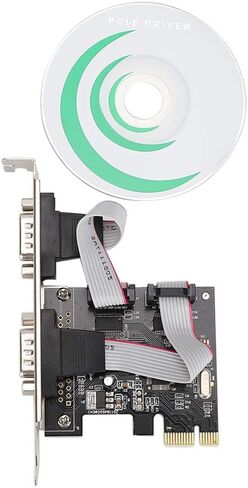

1x PCI-E to Serial Port Controller Card
1 x Drive CD
