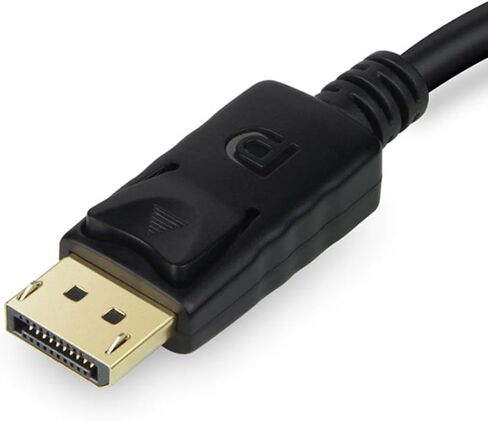

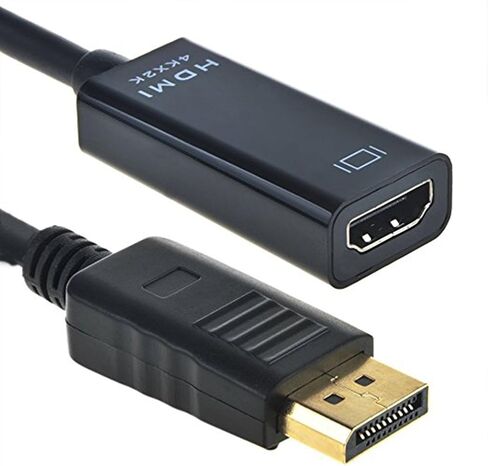

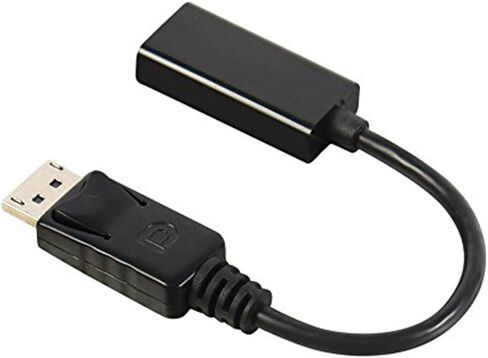

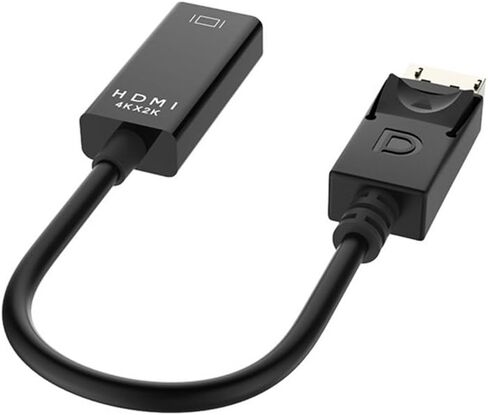

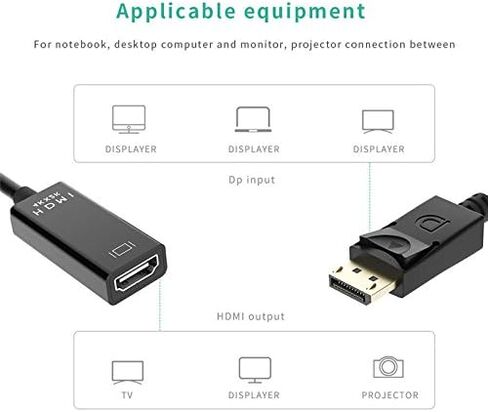

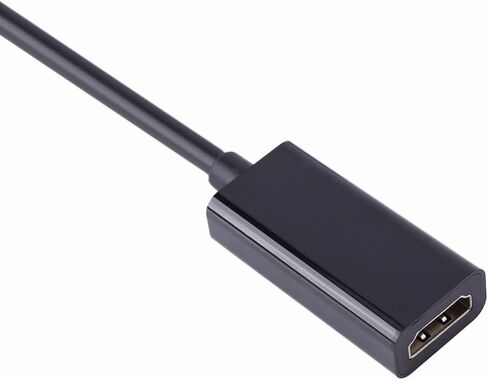

This product is DisplayPort to HDMI adapter cable, suitable for graphics card with Displayport interface and TV, monitors, projectors and other display devices with HDMI interface. It can achieve synchronization transmission of video and audio. It can only achieve DisplayPort to HDMI one-way conversion in product internal circuit design (DP output device PC, notebook, HDMI input devices such as monitors, TV, etc.).
Features:
Support DisplayPort v1.1, HDMI V1.3b; Support DisplayPort signal to HDMI signal conversion. Supports 20 pin DisplayPort interface; Supports 8-bit and 10-bit color depth.
Support up to 10.8Gbps video bandwidth; Support 1Mbps' two-way auxiliary channel; Support one-way, single-channel, four-wire connection.
Support HD Audio conversion; Support 1080P 15 meters long distance transmission; Support hot swap; Built-in conversion chip, no external power supply.
In strict accordance with the DisplayPort standard design, port using lock design, signal transmission is stable and reliable.
Specification:
Color: Black
Length: 25.5cm/10inch
Package Weight: 33g
Quantity: 1pc
Signal Input/Output:
Input video signal: 5 volts probability period (TTL)
Maximum single link Range: 1920x1080p
Output video HDMI: 1.3b
Input / Output Connector Input: DisplayPort Male 20pin
Output: Type A female HDMI 19pin
Working Frequency: Vertical Frequency Range: 50/60Hz Video Amplifier Bandwidth: 2.25Gbps/225MHz Resolution (HDTV)
Interlace Scanning: (50&60) 480i, 576i, 1080i Progressive Scanning: (50&60) 480p, 576p, 720p, 1080p
Package included: 1 x Displayport DP Male to HDMI Female Adapter Cable
Notes:
- Input: DisplayPort Male
- Output: HDMI Female; An HDMI cable (sold separately) is required
- Can only convert signal from DisplayPort to HDMI. This is not a bi-directional adapter
