16GB DDR5 512GB N305

KWD 128

Brand
Healuck
Weight
1.2 kg
Size16GB DDR5 512GB
StyleN305
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
1 +

Special Features

  • Low Power Processor: Twin Lake N150 processor, 4C/4T, burst 3.6 GHz, 6MB Cache, TDP only 6W, Ideal for 24/7 long-term operation. UHD Graphics with 24 EU supports 4K display and smoothly play high-resolution videos, support Auto Power On, Wake on LAN, PXE

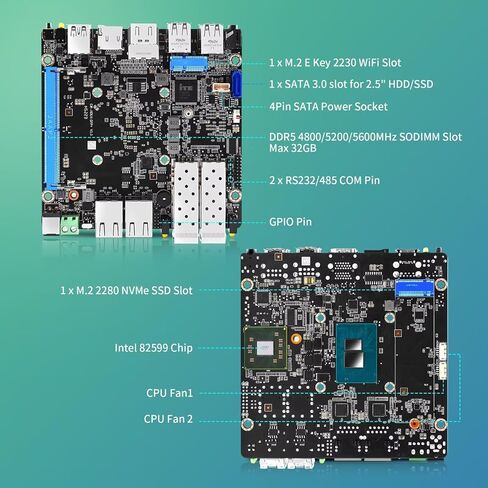

  • Provide More Storage Options: 1x M.2 2280 NVMe SSD slots, 1x DDR5 SO-DIMM RAM slot (4800/5200/5600 MT/s, support up to 32GB), 1 x SATA3.0 for 2.5" HDD/SSD (SATA 3.0 Cable Included), 1x TF card slot, support larger storage expansion
  • 2x 2.5GbE Ports + 2x 10G SFP+: With 2 x 82599ES 10Gigabit SFP+ network ports, and 2 x i226-V 2.5Gb Ethernet ports, 2.5 times faster than ordinary Gigabit Ethernet. Compatible with various device and software application, ideal for OPNsense
  • Various I/O Interface: 1xType-C for data transmission, 1 x USB3.2 ports provide faster USB transfer speeds, 4 x USB 2.0 for connecting external devices, 2 x HD 2.0 port, support dual screen output, up to 4K@60Hz,1 x M.2 E Key 2230 WiFi Slot for WiFi

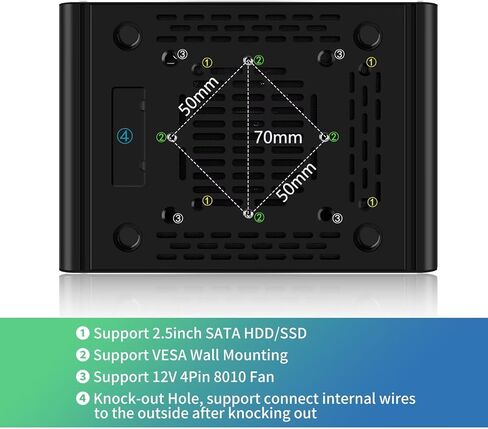

  • Wide Range Of Uses: Soft router can monitor network data and improve network security, powerful and widely used. Suitable for industrial CNC and mini offices, supports VESA bracket wall-mounting (Not included). 1 x 4-pin 8010 fan connector at bottom for extra fans

Description

CPU: 12th Gen N150 Processor, 4C/4T, 6M Cache, up to 3.60 GHz, TDP 6W, UHD Graphics (24EU).

Memory: 1 x SODIMM DDR5 4800 MT/s, up to 32 GB.

Storage: 1 x M.2 2280 NVME SSD slot, 1 x SATA3.0 for 2.5 inch SSD/HDD.

Network Card: 2 x 10GbE 82599ES SFP+, 2 x 2.5GbE I226-V.

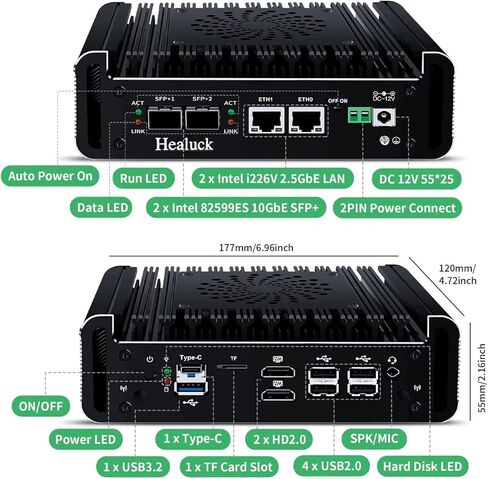

I/O interface: Power ON/OFF, 4 x USB 2.0, 1 x USB3.2 Type-A, 1 x USB3.2 Type-C, 2 x HDMl, 1 x TF slot for data storage/system boot, 4 x LAN, 1 x Phoenix 2pin, 1 x SPK/MIC, DC_IN.

Expansion: 1 x M.2 2230 Key-E WiFi slot for dual band WiFi+BT or M.2 NVMe module expansion (NVMe adapter board is inserted by default).

Power: DC 100-240V AC/50-60Hz,12V.

Operating temperature: 0°C ~ 70°C.

Storage temperature: 0°C ~ 70°C.

Relative humidity: 5%~85% non-condensing.

Cooling system: Combination of a passively cooled enclosure and fan-assisted cooling, 2 x fan socket, support to add 8010 temperature-control fan

Size: 6.69 x 4.72 x 2.17inch/17.7 x 12 x 5.5 cm.

Weight: 2.65lb/1.2 kg.

Packing List: 1 x HEALUCK 10gb Firewall Mini PC, 1 x power adapter, 1 x VESA mount, 1 x SATA 3.0 cable, 1 x 4pin fan cable.

Function: Supports Auto Power On, Wake on LAN, AES-NI, system power management, temperature management.

Compatibility: Windows, OPNsense, Open-Wrt, Linux, PVE, ESXi supported, UEFI support only.
