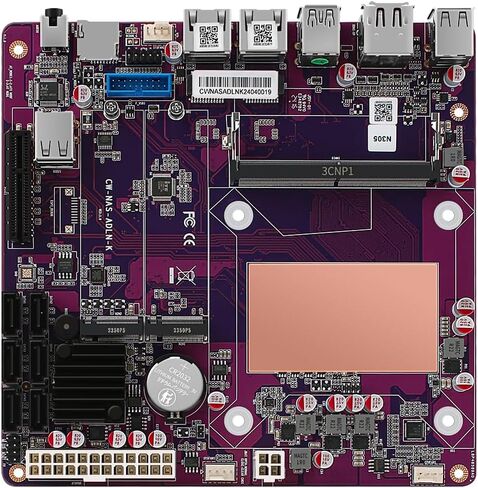

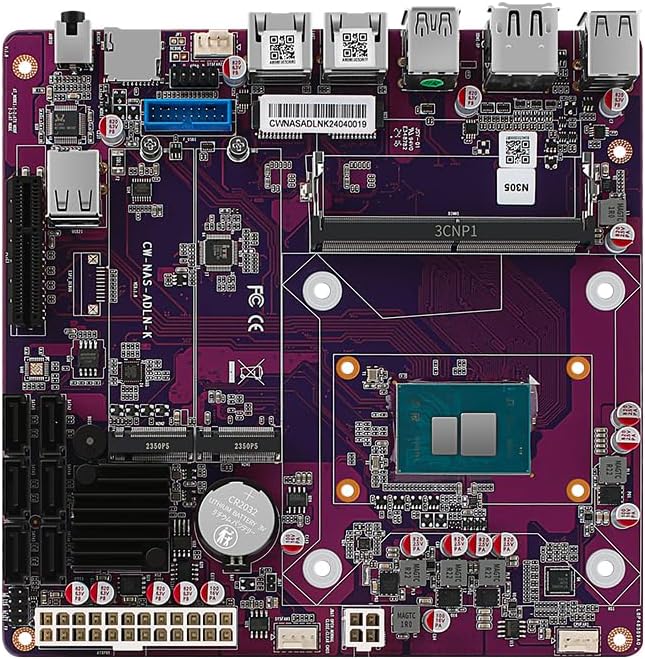

CWWK N100/i3-N305 six-Bay NAS Monster Board/2 RJ45 Intel i226-V 2.5G/HDMI+DP 4K@60Hz/115X Radiator ITX Board Type Motherboard (N100, Fan)

KWD 81

Brand
CWWK PC
Category
SizeFan
StyleN100
1 +

Special Features

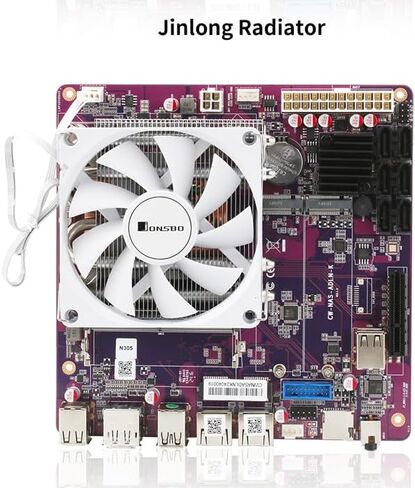

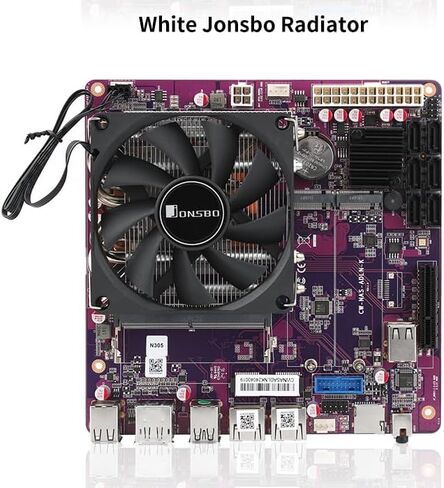

  • Intel 12th generation AlderLake-N processor N100/N305, 17*17cm standard Mini-ITX version, compatible with 115x series CPU cooler
  • 1 PCIe3.0 x4 slot, supports SATA/M.2/graphics card/network card expansion; onboard ASM1166 controller expands 6 SATA3.0 interfaces; 2 M.2 NVMe (PCI3.0 x1) slots 2280 size; 1 laptop DDR5 4800 memory slot supports up to 48G
  • 2 Intel i226-V 2.5G RJ45 network ports, HDMI+DP dual display output supports 4K@60Hz; 3 USB2.0, 1 USB3.0; TF card storage interface, supports partial boot
  • Built-in set of USB3.0 pin sockets can be connected to the panel through a connecting cable; built-in 2 USB2.0 sockets support U disk encryption and other applications and partial system boot; 1 Realtek ALC897 two-in-one 3.5mm audio interface
  • All CWWK Mini PCs are FCC, CE, ROSH certified,In addition, we provide 24-hour technical support and 1-year quality assurance. If you have any product-related questions, you can feedback to us and we will reply you as soon as possible.

Description

"

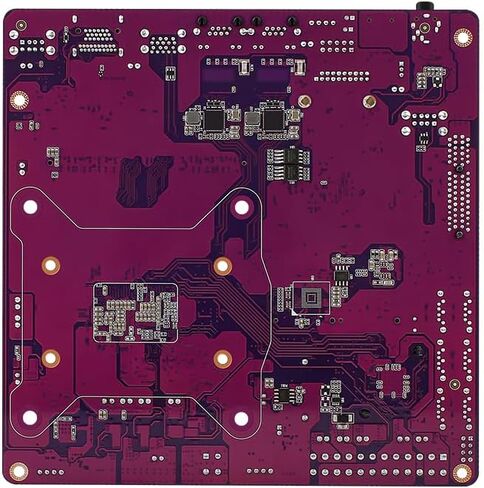

Motherboard features: 10-layer high-density moisture-free fiber circuit board,Full protection (supports all USB, audio, and network interfaces)
Processor: Intel 12th generation Alder Lake-N N100/N305 processor
N100 quad-core quad-thread TDP 6W maximum turbo frequency 3.4GHz
i3-N305 8 cores and 8 threads TDP 15W maximum turbo frequency 3.8GHz
Memory: Supports notebook SO-DIMM DDR5 memory technology
1 SO-DIMM DDR5 memory slot
DDR5 supports 4800MHz by default (PS: some 5200 and 5600 will automatically downclock to 4800)
Maximum capacity of a single memory stick is 48GB
TDP: Basic power consumption of the whole machine is 18~23W
Storage: 2*M.2 NVMe PCI 3.0 x1 signal 2 (2280)
6*SATA3.0 (ASM1166 expansion)
1*TF card storage
1*EMCC storage (not mounted by default, reserved pad)
Network card: 2*Intel i226-V 2.5G RJ45 port
Onboard interface:-1*CPU-FAN

-1*SYSFAN1 (supports PWM) 1*SYSFAN2 (does not support PWM)
-1*4PinATX CPU power supply
-1*24PinATX motherboard power supply
-1*USB3.0 socket
-2* M2 NVMe Pcle3.0 x1 2280
-1* SO-DIMM DDR5 single memory slot
-6*SATA3.0 (ASM1166)
-1*power on/off pin (FPANEL pin)
-1*buzzer-1*PCIE-x4 slot (PCle 3.0 4x signal)
-1*USB2.0 socket (horizontal, can be plugged in dongle and other USB disks)
-1*USB3.0 pin
-1*GPIO pin header
-1*2pin JBAT P pin header (clear COMS)
-1* USB3.0-3* USB3.2
-1* HDMI2.0-1*DP1.4
-2*2.5G RJ45 electrical port
-1*TF card slot-1*audio interface
Structure: Mini-ITX Specifications 6.7*6.7(in), 17*17(cm)
Operating system: Support Microsoft@Windows 10/11 64-bit
"
