uSDR uSDX+ Plus V2 10/15/17/20/30/40/60/80m 8 Bands SDR All Mode High Frequency SSB QRP Transceiver with BNC enna Connector

KWD 63
Brand
Karlak
Weight
499 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • 【Scientific & Reasonable Layout】: Simple, fun and versatile QRP SSB HF transceiver with embedded DSP and SDR functions. EER Class-E driven SSB transmit-se. Adopting KDS high-precise TCXO, the frequency accuracy and stability surpass similar produ. Compact size with rich interfs and scientific PCB layout with high-frequency circuit design principles to ensure erior performance. PCB rrve all kinds of pads needed for upgrading, which can be used as a template for DIY upgrading and learning.

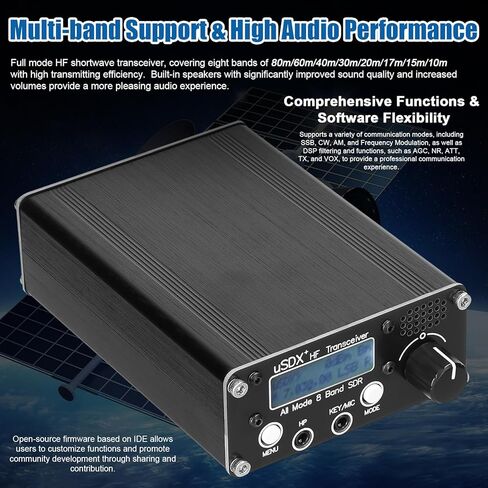

  • 【Multi-band port & High dio Performance】: Full mode HF short transceiver, covering eight bands of 80m/60m/40m/30m/20m/17m/15m/10m with high transmitting efficiency. Built-in speakers with significly improved sound quality and increased s provide a more pleasing dio experience.
  • 【Comprehensive Functions & Software Flexibility】: ports a variety of communication modes, including SSB, CW, AM, and Frequency Modulation, as well as DSP filtering and functions, such as AGC, NR, ATT, TX, and VOX, to provide a professional communication experience. Open-source firmware based on IDE allows users to customize functions and promote community development through sharing and contribution.
  • 【Combined Digital & Analogue Technology】: It combines an all-digital SSB emitter with a software-based SDR receiver se for precise frequency control and signal processing. Provides independently switchable analogue attenuators to improve reception performance in different scenarios. ports the Computers Aided Tranmission pcol, enhancing interoperability with other devices.
  • 【User Friendly Design】: The headphone jack, microphone jack, and power button are moved to the front panel, making it more intuitive and convenient to connect headphones and operate power. The button layout has been adjusted to the underside of the LCD screen to provide a more spacious toucharea, improving the comfort and touching experience of the buttons.

Description

to provide a more spacious toucharea, improving the comfort and touching experience of the buttons.
【erior Portability】: Powered by the carried external 13.8v powerply, it can achieve 8 gears of 3-5W power. It also rrves the necessary to-220-packpad for potential upgrades.

Specifications:
Name: SDR Transceiver
Material: metal
Radio frequency output: 10W max at 13.8V exit direct t in
Frequency s: 3.5-30
enna/connector: 50ohms/SO-239
Full mode port: usb, lsb, cw, am, frequency modulation
Bands: 80m/60m/40m/30m/20m/17m/15m/10m
Emission efficiency: 80m/60m/40m/30m/20m efficiency is higher than 80%, 17m efficiency is higher than 70%, 15m/10m efficiency is higher than 60%
Rich interfs: Computers Aided Tranmission, PTT OUT, MIC, microphone, BNC enna interf
Premium parts: 100V C0G/NP0 acitors, magnetic ing relays, Operational Amplifier chip, built-in speaker with cavity
All-Mode port: USB, LSB, CW, AM, Frequency ModulationDSP filters: 4000, 2500, 1700, 500, 200, 100, 50 Hz passband
DSP features: tomatic Gain Control (AGC), Noise-reduction (NR), Voice-triggered Xmit (VOX), RX Attenuators (ATT), TX noise gate, TX drive control, s control, dBm/S-meter
SSB opposite side-band/cxr pression transmit: better than -45dBc, IMD3 (two-tone) -33dBc; Receive: better than -50dBc
Noise floor MDS: -135 dBm at 28 (in 200Hz BW)
Front-end selectivity: steep -45dB/decade roll-off +/-2kHz from tuned-frequency
Blocking dynamic s: 20kHz offset 123dB, 2kHz offset 78dB
CW decoder, Straight/Iam-A/B keyer
Item size: 155 * 90 * 40mm / 6.10 * 3.54 * 1.57in
Item weight: 425g / 0.94lb
Package size: 170 * 125 * 80mm / 6.69 * 4.92 * 3.15in
Package weight: 497g / 1.10lb

Packing List:
1 * SDR Transceiver
1 * Microphone
1 * Adapter
