Mini Base Board for Raspberry Pi CM5 Lite/eMMC Series Module, Compute Module 5 Mini IO Board with CM5 Socket/40PIN GPIO Header/RJ45 Gigabit Eth/16PIN PCIe/HDMI/USB 3.2/USB 2.0 Interface etc.

KWD 11.500
Brand
waveshare
Weight
5 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

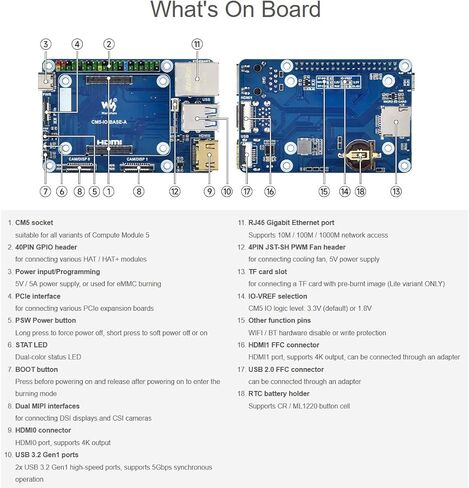

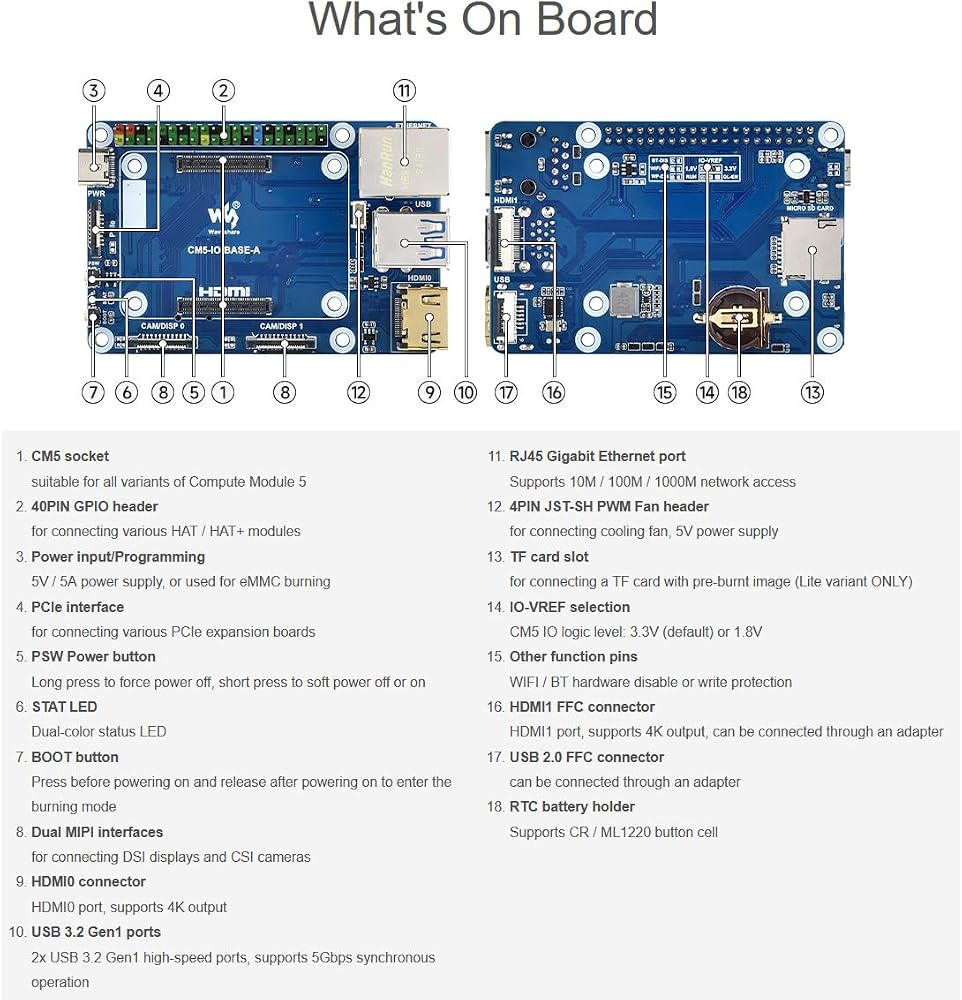

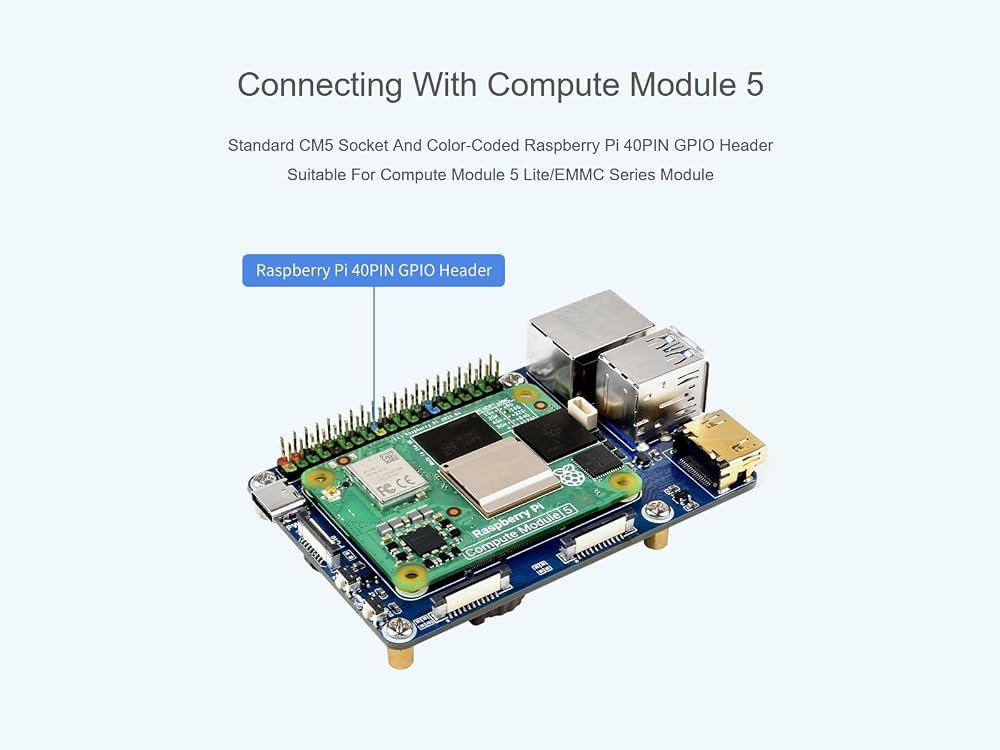

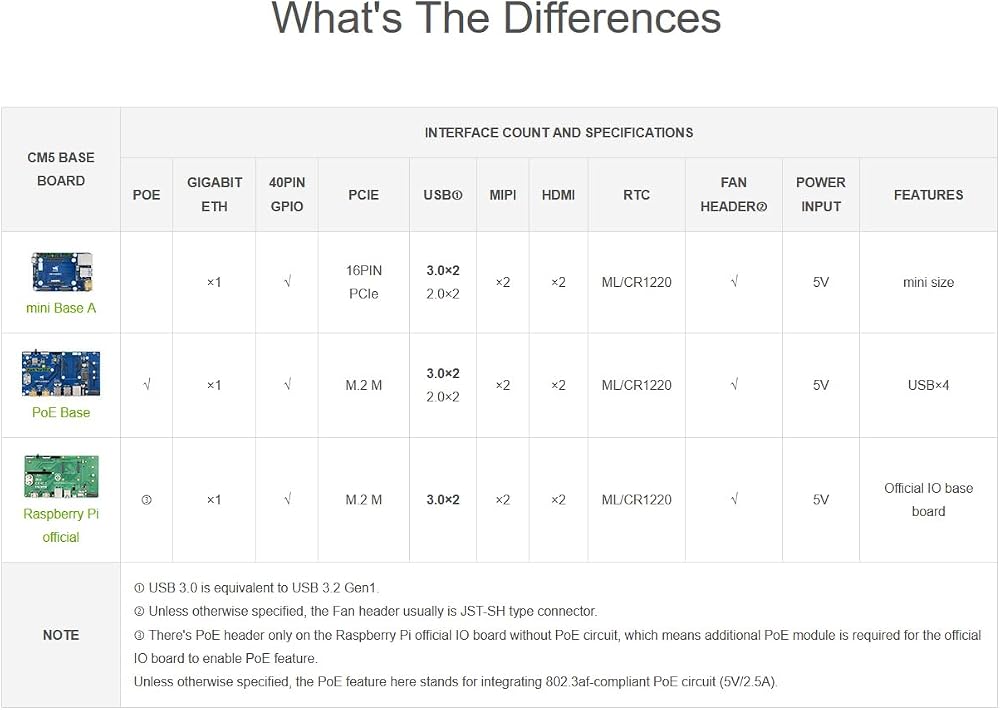

  • Mini Base Board for Raspberry Pi Compute Module 5 Lite/eMMC series module, with onboard CM5 socket, Gigabit Ethernet RJ45 connector, 40PIN GPIO header, 16PIN PCIe, USB 3.2 Gen1 Type A × 2, USB 2.0 via 6PIN 1mm FFC connector × 2, 4-lane MIPI interface × 2 , HDMI port × 2, RTC etc.
  • Do not plug or unplug any device other than USB and HDMI when the device is powered on. When you need to use POE, connect the POE jumper cap to the EN position
  • The onboard BOOT button, you can press the BOOT button before powering on, and connect to the computer through Type C to let the device enter the flashing mode
  • Type C can be used as a USB SLAVE interface to flash images. Do not connect other devices when using Type C to flash. Insufficient power supply for flashing will cause the device to be unrecognized. Onboard default 2 USB 3.2 Gen1 ports. The USB ports have a total maximum power output of 2A
  • Supports 4 screens to display different contents, adds MIPI DSI driver, regardless of whether a screen is connected, the system will default to connect, the screen will display in split-screen mode (related to the system version)

Description

Introduction

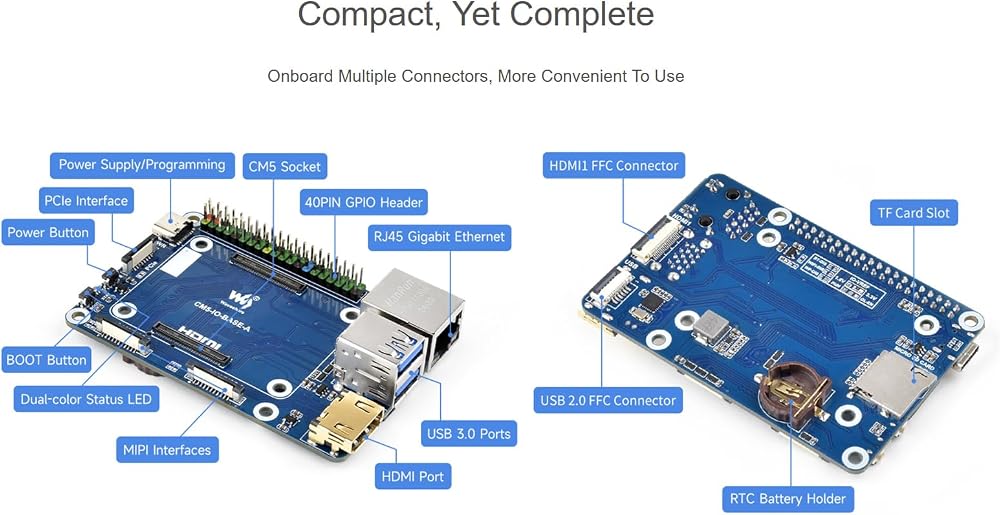

As the IO board of Compute Module 5, CM5-IO-BASE-A is a baseboard that can be used with Raspberry Pi Compute Module 5. With powerful features are integrated into a compact design, it is only the size of a bank card. It comes with two USB3.2 Gen1 ports and two USB2.0 ports onboard, making it convenient for users.

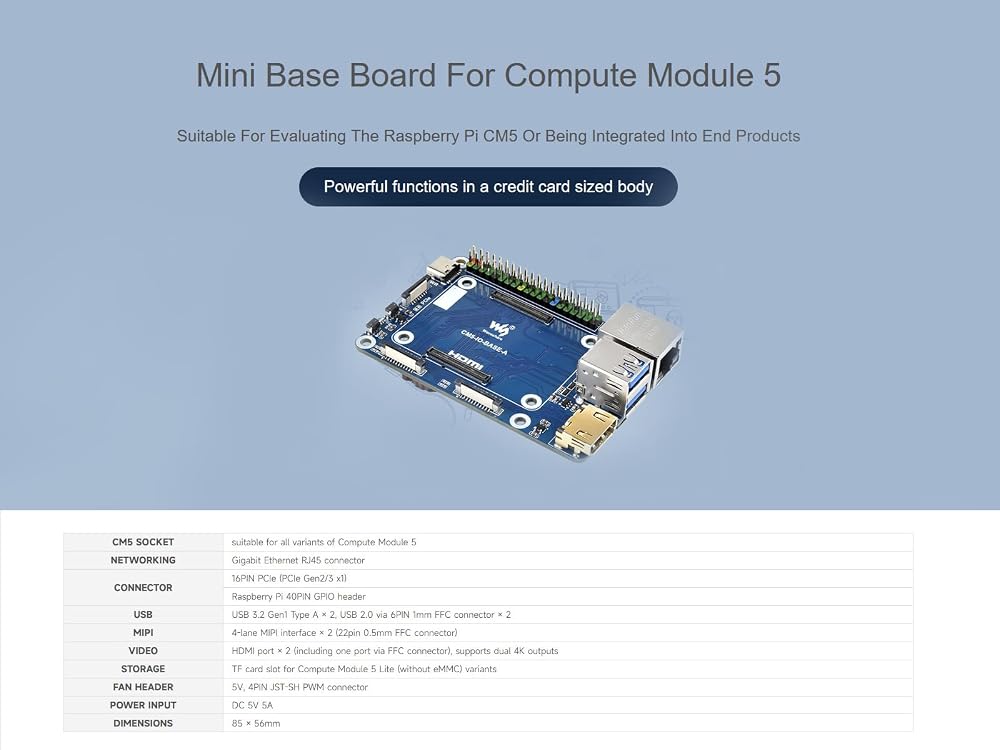

Specifications
CM5 Socket
---suitable for all variants of Compute Module 5
Networking
---Gigabit Ethernet RJ45 connector
Connector
---16PIN PCIe (PCIe Gen2/3 x1)
---40PIN GPIO header
USB
---USB 3.2 Gen1 Type A × 2, USB 2.0 via 6PIN 1mm FFC connector × 2
MIPI
---4-lane MIPI interface × 2 (22pin 0.5mm FFC connector)
Video
---HDMI port × 2 (including one port via FFC connector), supports dual 4K outputs
Storage
---TF card slot for Compute Module 5 Lite (without eMMC) variants
Fan Header
---5V, 4PIN JST-SH PWM connector
Power Input
---DC 5V 5A
Dimensions

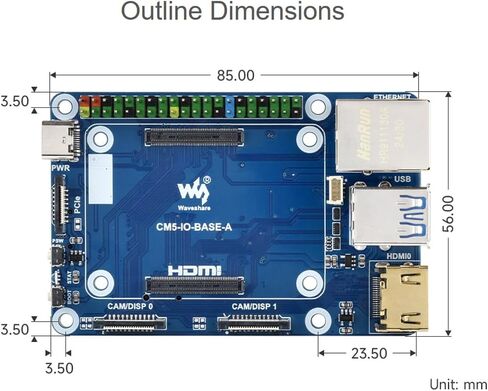

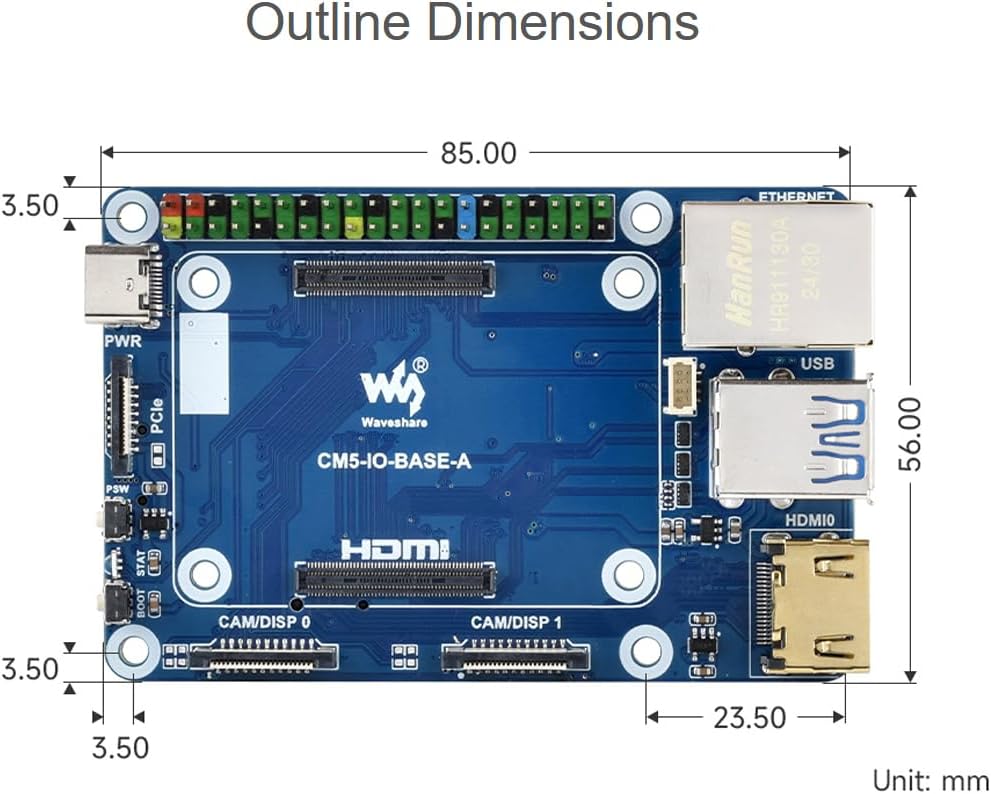

---85 × 56mm

Package Content

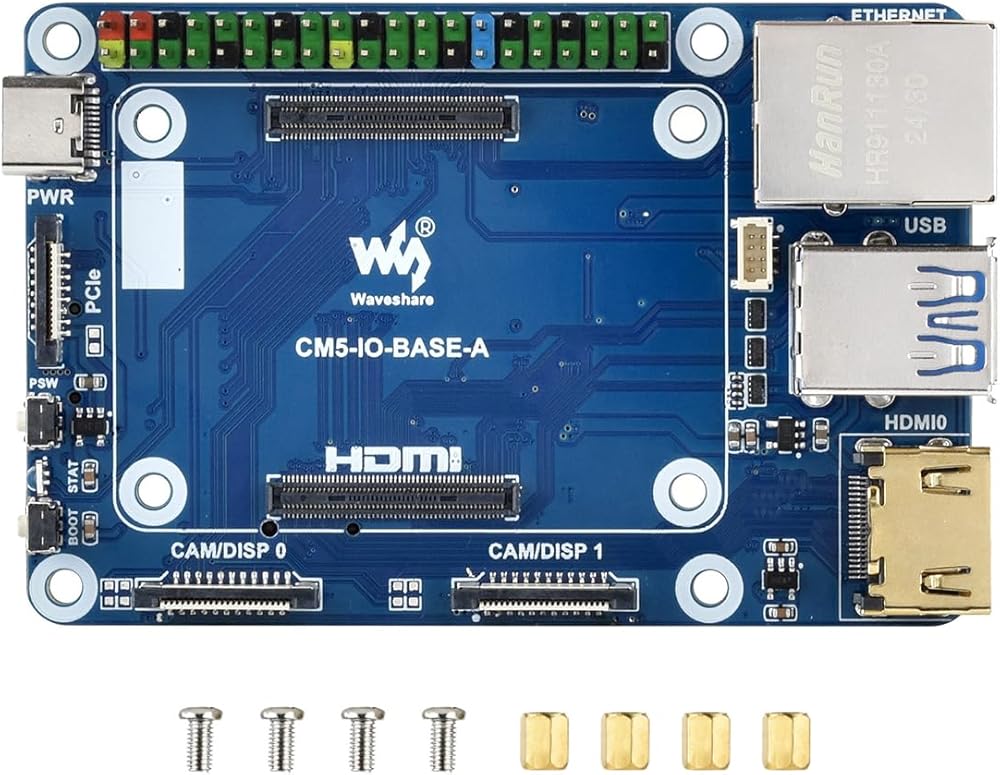

CM5-IO-BASE-A x1
Screws pack x1

NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
