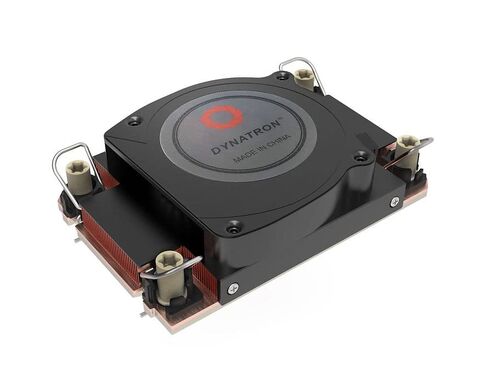

Dynatron S7 Intel 4677 (w/E1B Carrier) 1U Active Vapor Chamber CPU Cooler
840556075882
The Dynatron S7 4677 delivers advanced thermal management for Intel Sapphire Rapids processors with a 1U active vapor chamber CPU cooler featuring a 205 watt power capacity that ensures reliable heat dissipation and optimal performance. Its copper heatsink with vapor chamber base ensures reliable cooling and efficient operations.
PRODUCT SPECIFICATION:

CPU Support: Intel
CPU Socket: FCLGA 4677
Solution: 1U Server and Up
Dimensions: 118.6 x 80.5 x 27.4 mm
Weight: 424.6 g
Material: Copper 1100 Heatsink with Vapor Chamber Base
Fan Dimension: 80 x 13 mm
Bearing: Dual Ball Bearing
Rated Voltage: 12V

Speed:
At Duty Cycle 0~20%: 1900 ± 200 RPM
At Duty Cycle 50%: 4800 ± 10% RPM
At Duty Cycle 100%: 8700 ± 10% RPM

Power:At Duty Cycle 20%: 1.08 W
At Duty Cycle 50%: 4.7 W
At Duty Cycle 100%: 23.45 W

Air Flow:
At Duty Cycle 20%: 4.0 CFM
At Duty Cycle 50%: 10.39 CFM
At Duty Cycle 100%: 18.97 CFM

Noise Level:At Duty Cycle 20%: 23.3 dBA
At Duty Cycle 50%: 43.5 dBA
At Duty Cycle 100%: 62.2 dBA
Air Pressure:
At Duty Cycle 20%: 3.15 mm-H2O
At Duty Cycle 50%: 21.07 mm-H2O
At Duty Cycle 100%: 77.16 mm-H2O

Lead Wire Pin Out:
Pin#1-Black(-)
Pin#2- Yellow(+)
Pin#3- Green(Tachometer/ Signal Output)
Pin#4- Blue (PWM)

CERTIFICATIONS:
UL Listed
RoHS Compliant
