Chipset: Broadcom BCM4352
Size: 26.8mm x 30mm (Mini PCIe (half))
Chipset: Broadcom BCM4352
Frequency Band: Dualband 2.4 Ghz and 5 Ghz
Network Standard: 802.11ac (If your router for 11n, up to 300mbps. 802.11ac will up to 867mbps)
Driver support: Windows 7/8/10; Linux
Bluetooth 4.0

802.11AC Routers need to support!!

Note:Compatible with Mini PCI-e card slot laptop (This wifi card could not compatible with HP,IBM/Lenovo/Thinkpad laptop)

Product details:
The BCM4352 implements the 2-stream 802.11ac specification to enable speeds up to 867 Mbps in access points, routers, DSL/cable gateways and PC products.

The single-chip dual-band transceiver integrates all the major functional blocks needed to implement a complete 802.11ac wireless sub-system, including radio, baseband and Media Access Control (MAC). This highly integrated solution provides the increased coverage and throughput performance required for high-quality video and media applications in the home and enterprise. Access points, routers, PC notebook computers and digital TV/ media devices enabled with the BCM4352 will offer up to gigabit speeds over Wi-Fi networks

Feature:
80 MHz bandwidth that is 2 times wider than current 802.11n solutions
Dual-band operation compatible with legacy 802.11n networks 256-QAM, a higher modulation scheme that increases data transfer efficiency
802.11ac-compliant transmit and receive beamforming for extended coverage for 802.11ac and legacy devices
Low Density Parity Check (LDPC) Codes for increased rate at range PCI Express 2.0 host interface
Enhanced Bluetooth coexistence interface support for seamless BT + 5G WiFi operation

Package include:

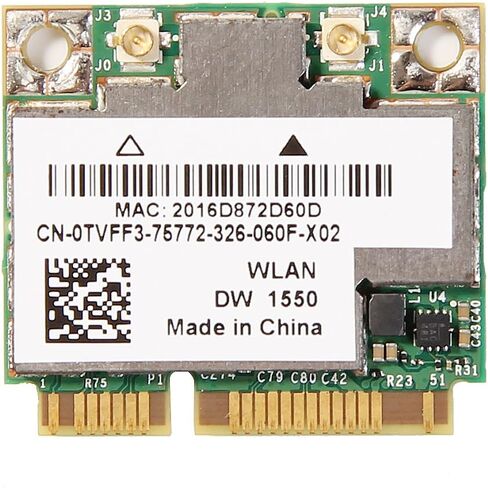

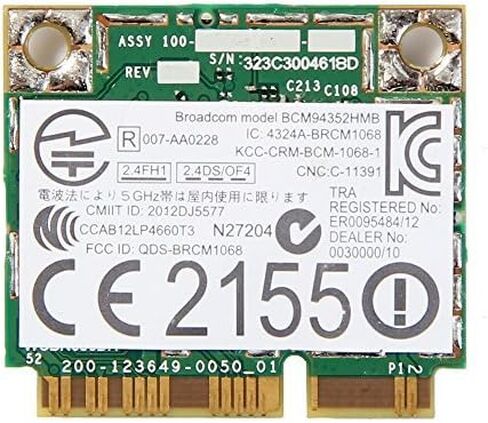

1 x Dell DW1550 BCM94352HMB card (no driver cd included)
