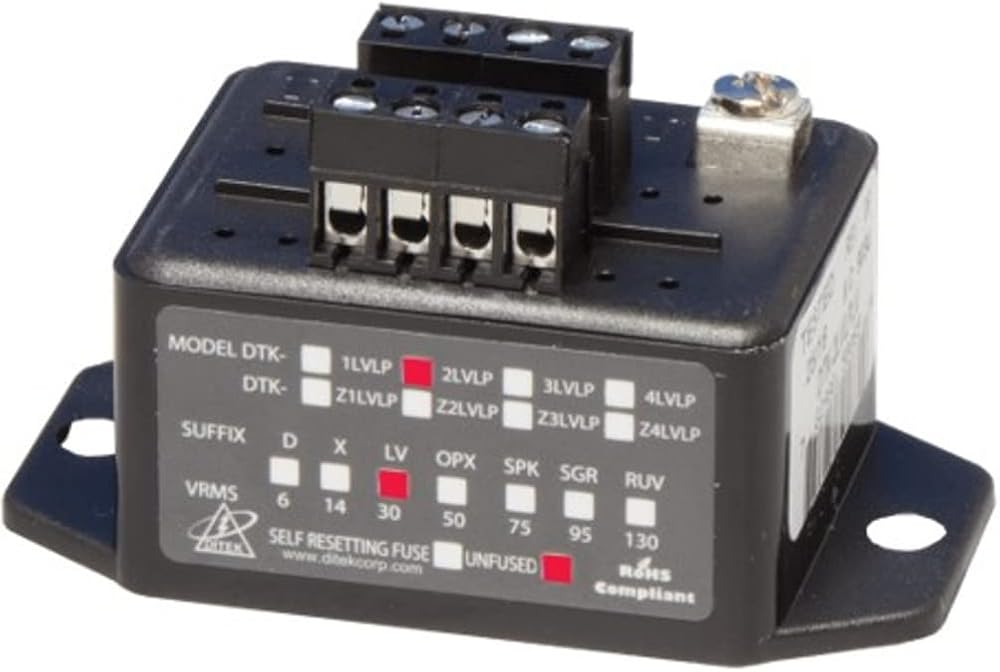

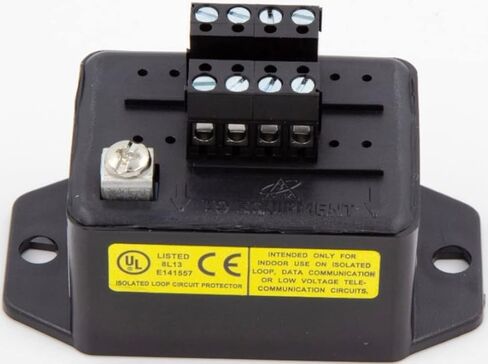

DITEK DTK-2LVLPLV Data & Signaling Circuit Surge Protector; Protects Low Voltage Data and Signaling Loop Circuits; Series Connection, Parallel Function Adds no Resistance to Circuits

DITEK's DTK-LVLP Series of low voltage surge protectors provide robust protection in a compact, hardwired package. Models are available to protect multiple low voltage pairs, and are suitable for both AC and DC circuits. LVLAWG models can handle up to 10 AWG wiring connections.

Key Features
- Protects low voltage data and signaling loop circuits
- Protect up to (4) pairs per module to match your specific configuration needs
- Suitable for both AC and DC circuits
Series connection, parallel function adds no resistance to circuits
- Five voltage levels available to protect various low voltage applications

Specifications
- Protection Modes: Common Mode (L-G)
- Surge Current Rating: 2,000A (24V)
- Connection Method: Hardwired terminals 22-16 AWG
- Housing: ABS
- Operating Temperature: -40°F - 158°F (-40°C - 70°C)
- Maximum Humidity: 95% non-condensing
- Dimensions: 3.0"L x 1.6"W x 1.6"H (7.6 x 41 x 4.1mm)
- Weight: 2.4 oz (68 g)
