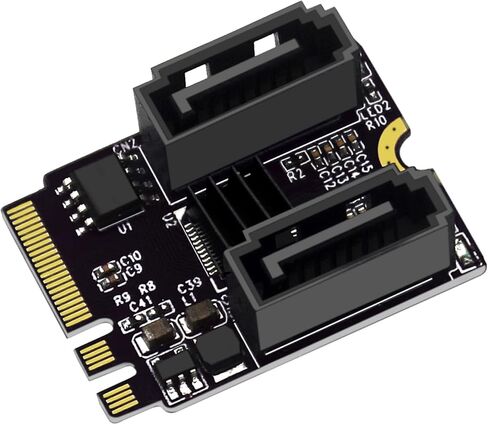

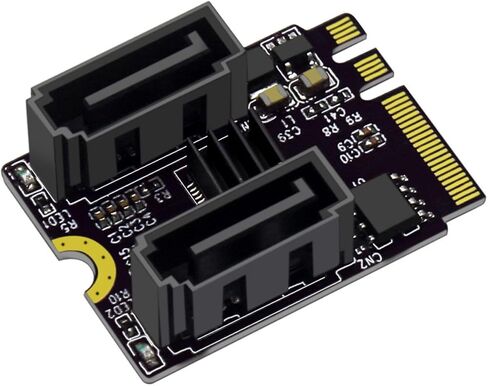

PCIE 3.0 M.2 NGFF A+E Key to 2*SATA Adapter Card 6Gbps with JMB582 Chip for 2230 SSD PC Servers

Product Parameter
Model:PH59
Product Size:30*22 MM
Product Name:M.2(A+E Key) to 2-port SATA expansion card
Transfer Interface:NGFF(M.2)2230 key A/E
System: Compatible with Wins /Linux
Weight:3.2G

Product Features:
M.2(A+EKey) to 2HSATA6G Expansion Card
This product can transfer 2 SATA ports through the M.2(A+EKey) slot of PC host.
Users can connect 2 SATA interface SSD or mechanical hard disk at the same time through the SATA cable.
This product adopts the super PCle3.0 total bandwidth, data transfer speed faster, bring users and gamers faster speed, lower performance, high stability of the storage device.

JM582 Main Control
Adopting JMB582 chip solution with high speed transmission and stable performance, it is dedicated to satisfy users' demand for massive data space.

2*SATA Interfaces
Equipped with 2 standard SATA ports. Users only need to insert the card into the M.2 slot on the motherboard, and then connect the two SATA interfaces to the SSD or mechanical hard disk at the same time through the SATA cable.
Note: This product is M.2 (A+E Key) interface.

Wide range of applications
Widely used in PC computers, servers, industrial computers, consumer electronics, storage devices, N VR/D VR systems.

PCI-E3.0 Total Bandwidth
With PCI-E3.0 bandwidth, the data transfer speed is much faster than PCI-E2.0.

Package Details
PH59 Adapter Card*1
SATA cable*2
M2 Screw*1
