Application:
Mercedes/Dodge Sprinter (W906) from 04/2006-Now
VW C rafter (2EC1 / 2EC2 / 2EKE1 / 2EKE2 / 2EKZ) from 04/2006 -2016

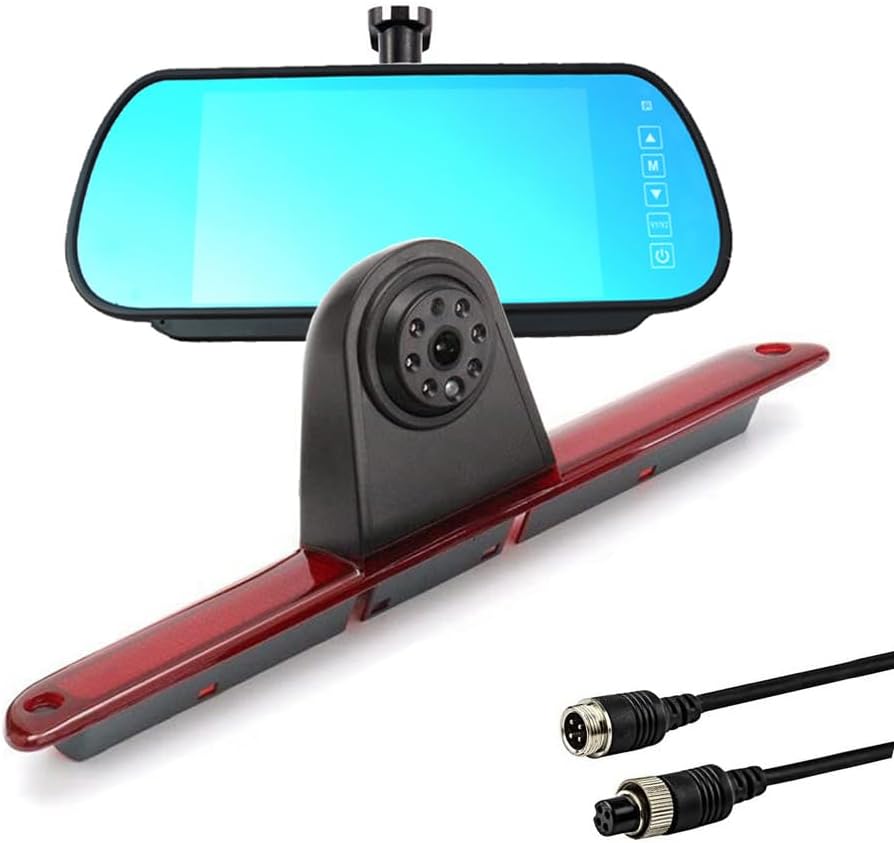

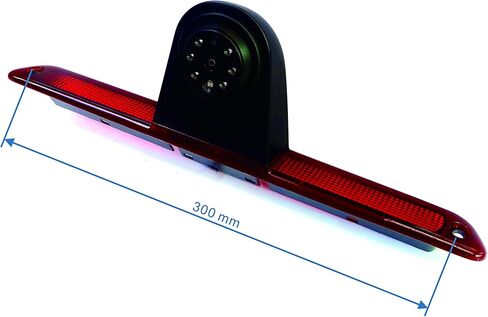

Backup camera is designed to completely replace the van's third brake light. When installed, this backup camera looks factory-fitted, as though it came with the van originally.

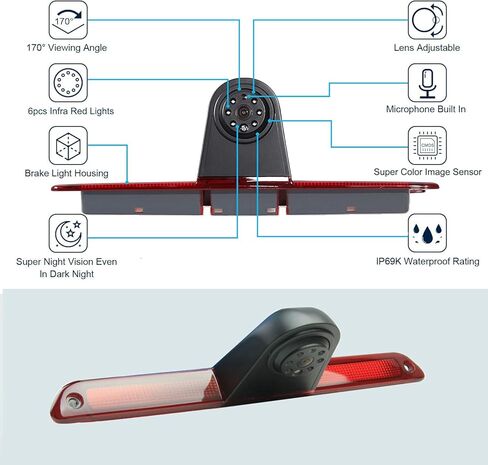

Camera Specification:

Image sensor :1/3 Color CMOS

Resolution :756(H) X 504(V)

TV line :600TV lines

TV System :NTSC
Lens:2.5mm
Min illumination :0Lux (LED ON)

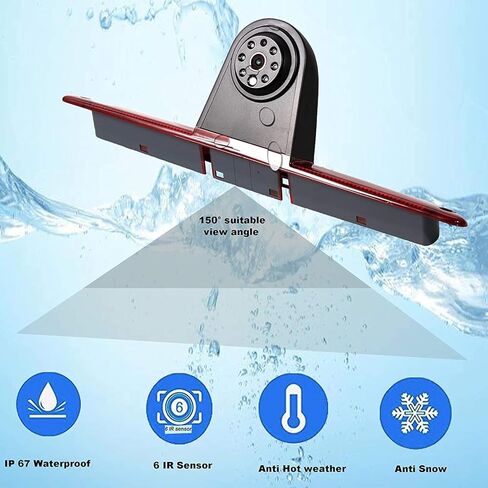

Viewing angle:170°

Operation Temp. :-20℃~+70℃

White Balance :Auto

7inch Clip-on Monitor Specification:

Monitor size :7 inch(800 X 480)

Contrast :16:9

TV System :PAL/NTSC

Video input :AV1/AV2

Power : DC12V-24V

Brightness :400cd/㎡

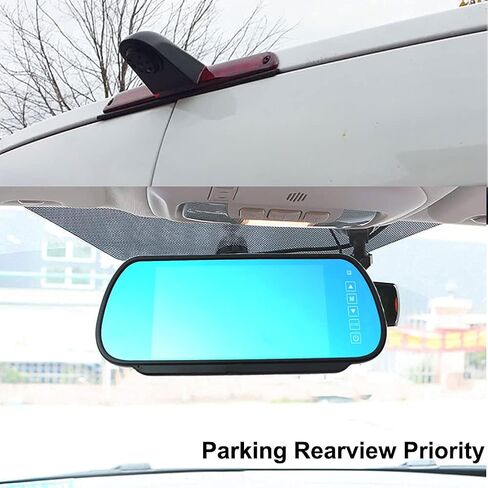

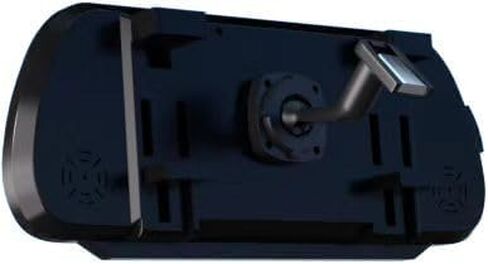

Installation way: Clip on your exist rear mirror (If you car doesn't install rear mirror ,please chose stand monitor)

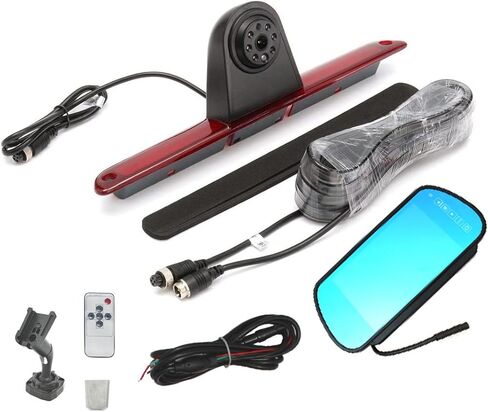

In The Box

1 * Rear mirror monitor

1* Backup Camera

1*10M Extension Cable

1*Power Cable

1 * Manual
FQA

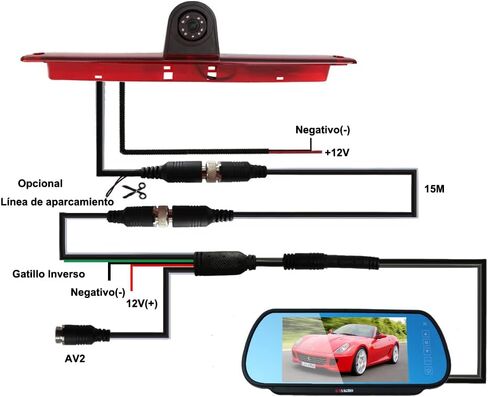

1. How to wire it ?

It is very easy for wiring.

Backup camera wiring: The camera is 4PIN plug ,please connect it directly to AV input wiring of monitor power cable.

Rear view monitor wiring :Red wire for power source, green wire for reverse, black for ground.

2. Is it ok if I want this rear view camera to always be on ?

Yes, if you want the camera to always be on, you can connect it to a constant 12V/24V power source such as accessory socket (cigarette lighter)that is on all the time, or if you only want it when you reverse you can connect it to the reverse taillights.
