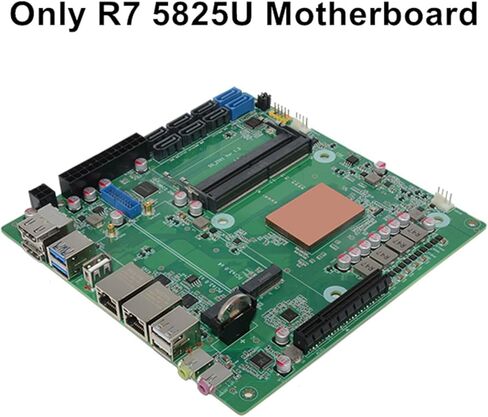

32GB DDR4 1TB NVMe Only R7 5825U Board

KWD 121.500

Brand
CYMINILMDPC
Category
ColorOnly R7 5825U Board
Size32GB DDR4 1TB NVMe
1 +

Special Features

  • Ryzen 7 5825U 8 Core 16 thread 2GHz up to 4.5GHz, 16M Cache, TDP 15W, Radeon Graphic 8 Core 2000MHz,Support Memory 2*DDR4 non-ECC SODIMM Slots,Max up to 64GB 3200MHz,Hard disk 8*SATA3.0,2*M.2 2280 NVMe(1*PCIE3.0x4+1*PCIE3.0x1)
  • Function: Support auto power on, wake on lan, RTC, watchdog etc (DELETE key to enter BIOS, F7 key to select boot drive, F3 key to restore BIOS default values)
  • I/O port:2*RJ45 LAN ( 2* i226-V 2.5G)2*HDMI2.0 ,2*USB3.2, 3*USB2.0,1*Audio,1*MIC
  • Inner I/O Port: 8*SATA3.0,2*M.2(NVME),2*DDR4 SODIMM,1*PCIE3.0 8X,Front 2*USB3.2 pins,1*F_Panel,1*Auto,power jumper,1*Clear CMOS jumper,1*CPU_FAN 4pin,1*SYS_FAN 4pin
  • Every new motherboard was tested with radiator totally before shipping, that is why copper plate seems to get traces of thermal grease

Description

Specification:
CPU: Ryzen 7 5825U 8 Core 16 thread 2GHz up to 4.5GHz, 16M Cache, TDP 15W
GPU: Radeon Graphic 8 Core 2000MHz
RAM: 2*DDR4 non-ECC SODIMM Slots,Max up to 64GB 3200MHz
Network: 2* i226- 2.5G RJ45 LANs
Display: 2*HDMI2.0,support dual 4K@60Hz display
Storage: 8*SATA3.0,2*M.2 2280 NVMe(1*PCIE3.0x4+1*PCIE3.0x1)
Powe supply: 24pins+4pins ATX 12V power suppply, must connect at same time to power on

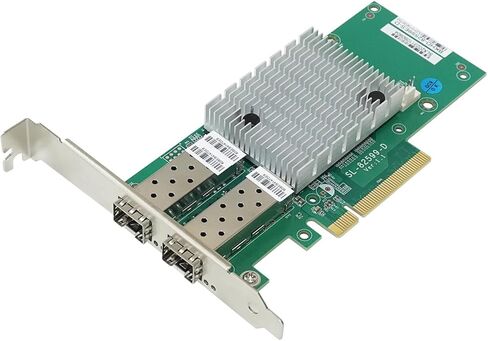

Expansion: 1*PCIE3.0 8X slot, support to expand graphic card, network card etc

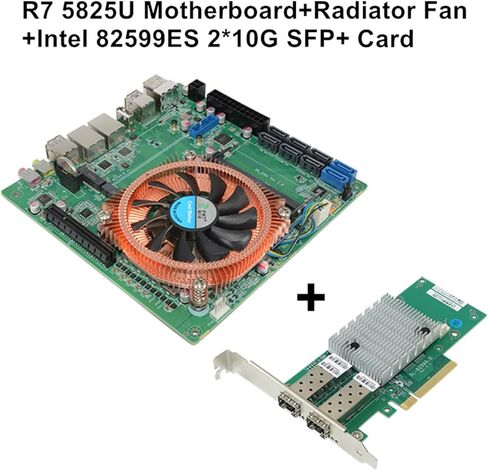

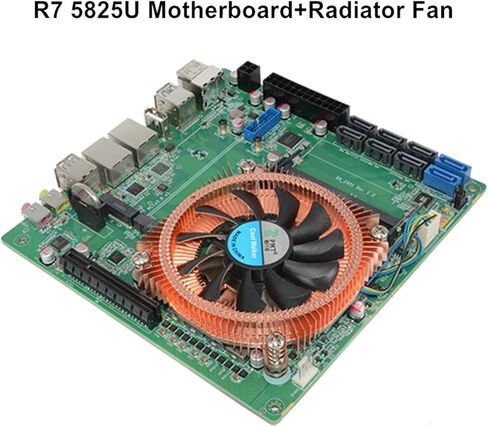

Radiator fan: support 115X/AM5 fan with screw hole positions in square layout, optional to buy
Function: Support auto power on, wake on lan, RTC, watchdog etc (DELETE key to enter BIOS, F7 key to select boot drive, F3 key to restore BIOS default values)

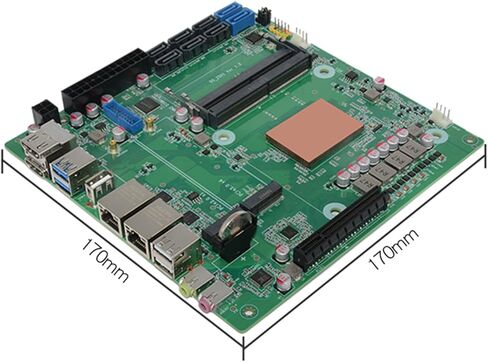

Form: 17x17CM, mini ITX

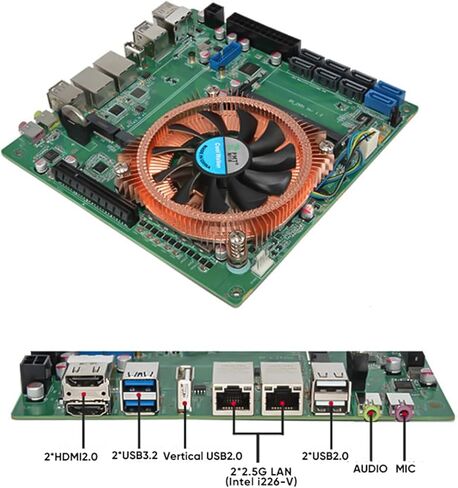

I/O port:
2*RJ45 LAN ( 2*Intel i226-V 2.5G)
2*HDMI2.0
2*USB3.2
3*USB2.0
1*Audio
1*MIC

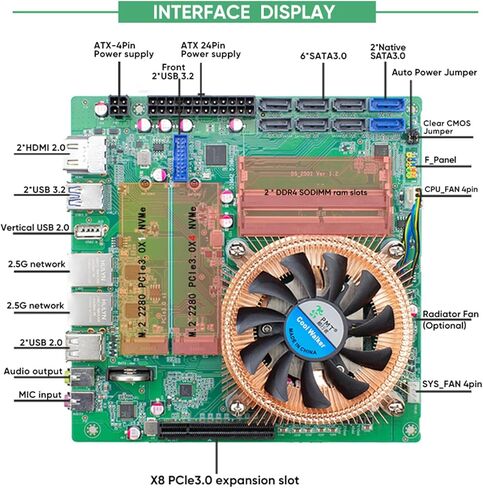

Inner I/O Port:
8*SATA3.0
2*M.2(NVME)
2*DDR4 SODIMM
1*PCIE3.0 8X
Front 2*USB3.2 pins
1*F_Panel
1*Auto power jumper
1*Clear CMOS jumper
1*CPU_FAN 4pin
1*SYS_FAN 4pin
