JMT USR-TCP232-306 Serial Port RS232/RS485/RS422 to TCP Converter with DHCP and Built-in Webpage with 5V 3A Power Supply (1PCS)

KWD 17
Brand
JMT
Weight
431 g
Color1PCS
– 1 +

Special Features

  • 𝐒𝐮𝐩𝐩𝐨𝐫𝐭 𝐑𝐒𝟐𝟑𝟐,𝐑𝐒𝟒𝟖𝟓 𝐚𝐧𝐝 𝐑𝐒𝟒𝟐𝟐. Ethernet to serial converters USR-TCP232-306 support both interfaces RS232 and RS485, but can only use one at one time.
  • 𝐀𝐮𝐭𝐨-𝐌𝐃𝐈/𝐌𝐃𝐈𝐗, 𝐑𝐉𝟒𝟓 𝐩𝐨𝐫𝐭 𝐰𝐢𝐭𝐡 𝟏𝟎/𝟏𝟎𝟎𝐌𝐛𝐩𝐬; Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client ; Baud rate of serial port can be configured from 600 bps to 230.4 Kbps, supports check bit of none, odd, even, mark and space.
  • 𝐇𝐞𝐚𝐫𝐭𝐛𝐞𝐚𝐭 𝐩𝐚𝐜𝐤𝐚𝐠𝐞 𝐦𝐞𝐜𝐡𝐚𝐧𝐢𝐬𝐦 𝐭𝐨 𝐞𝐧𝐬𝐮𝐫𝐞 𝐜𝐨𝐧𝐧𝐞𝐜𝐭𝐢𝐨𝐧 𝐢𝐬 𝐫𝐞𝐥𝐢𝐚𝐛𝐥𝐞, put an end to dead link; User-defined registration package mechanism, check connection status and use as custom packet header; Under TCP Server Mode, the connection number with client can be randomly set from 1 to 16, default number is 4.
  • 𝐒𝐢𝐦𝐩𝐥𝐞 𝐜𝐨𝐧𝐟𝐢𝐠𝐮𝐫𝐚𝐭𝐢𝐨𝐧 𝐚𝐧𝐝 𝐞𝐚𝐬𝐲 𝐭𝐨 𝐮𝐬𝐞. IP has been connected can be shown according to connectiong with calculating send / recceive dat. When connection number reaches a maximun, the new connection is kicked off the old one can be configured by user;Parameters can be configured by built-in webpage, AT command, serial port procotol and network procotol. Setting procotol is avaliable to integrate into user's software.
  • 𝐒𝐮𝐩𝐩𝐨𝐫𝐭𝐬 𝐓𝐂𝐏 𝐜𝐥𝐢𝐞𝐧𝐭 𝐬𝐡𝐨𝐫𝐭 𝐜𝐨𝐧𝐧𝐞𝐜𝐭𝐢𝐨𝐧 𝐟𝐮𝐧𝐜𝐭𝐢𝐨𝐧, user-defined the disconnected time.Device restart if no data transmission or timeout. User-defined the restart time. If data buffer needs to clear configuration before TCP connection establishment;Supports DHCP, automatically obtain an IP address and query IP address via serial setting protocol.The global unique MAC address, user-defined MAC address.

Description

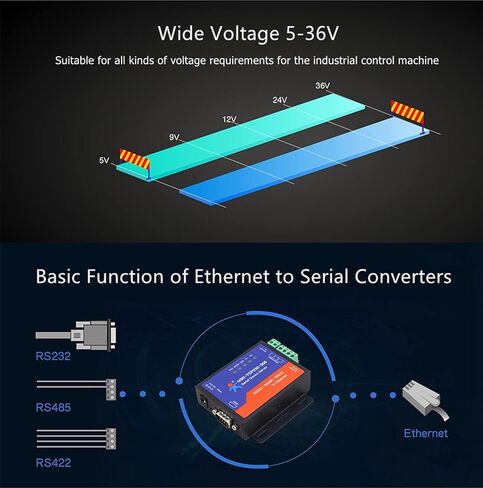

USR-TCP232-306 is a multi serial port ethernet converter,which can realize bi-directional transparent transmission between RS232/RS485/RS422 and Ethernet. User can directly process data interaction through network and device to realize remote data acquisition, remote control and management.

Parameters:
RS232*1 / RS485*1 / RS422*1 (not use simultaneously)
Wide power supply 5-36v DC
httpsD client mode, sends serial data in https format
Support TCP server/client, UDP server/client,Virtual COMPackage includes
Ethernet Port: 10/100Mbps auto switch between cross and direct connection
Baud rate: 600-230.4K bps
Network Buffer: Send: 6Kbyte, Receive: 4Kbyte
COM Buffer: Receive: 2Kbyte
Avg. Transmission Delay: Software: Virtual-COM, USR-Cloud, Setup software provided
Packing mechanism: 4 bytes of packing time, 400 bytes of packing length

DNS function:
DNS server addres can be defined
Firmware can be upgraded by network
Provide Virtual com software
Restore factory setting through software or hardware
Running across the gateway, switches or routers.
Can work in LAN, also can work in the Internet

Package includes:
1* Ethernet to serial converter
1* DP9 Female to Female cable
1* 5V1A Power supply
