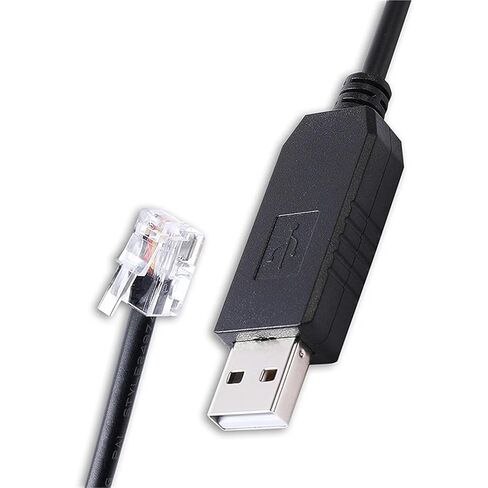

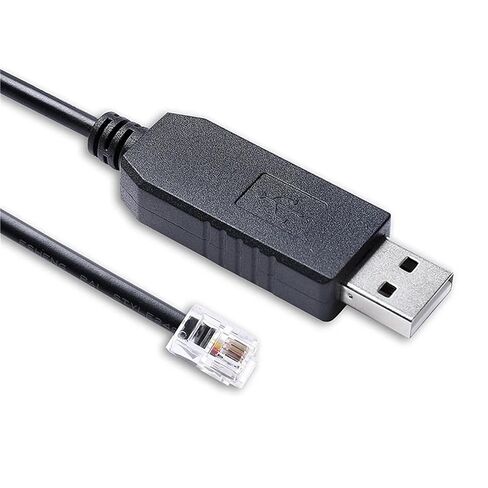

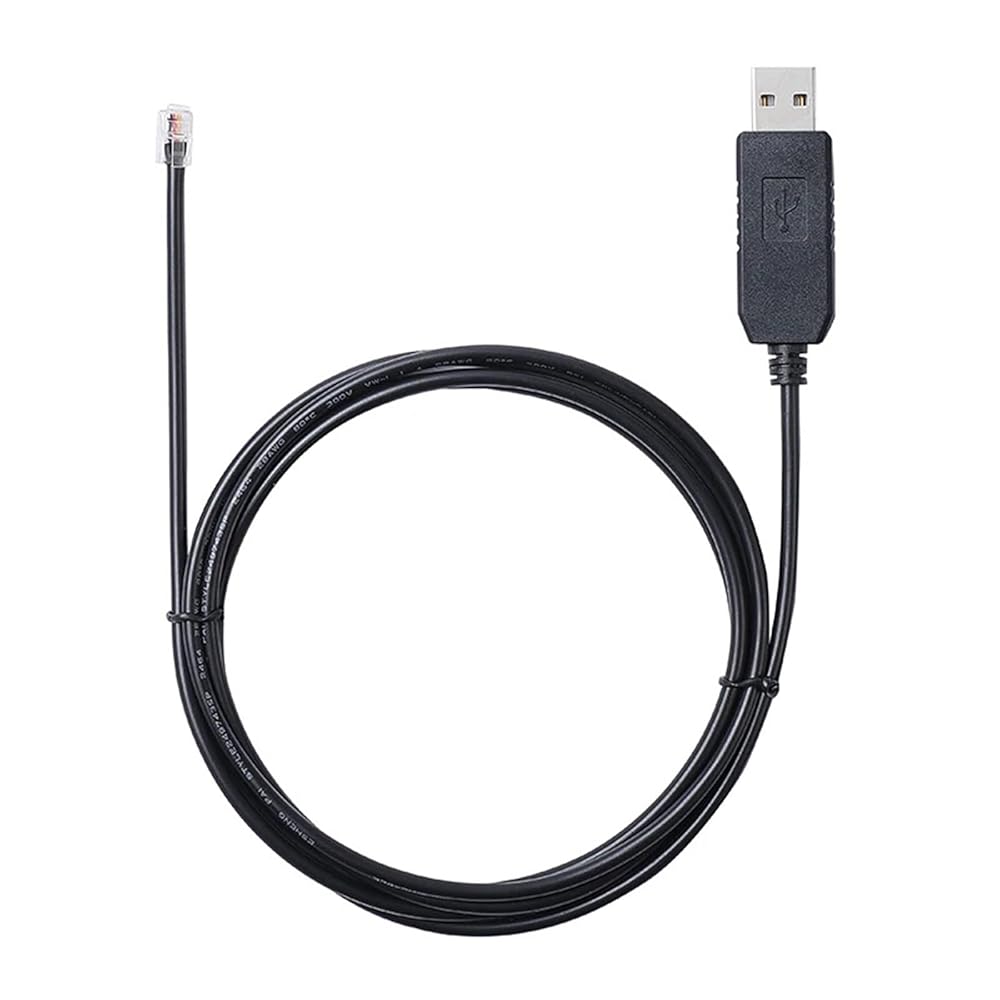

Cables
Material: PVC Outer Jacket
Cable: 28AWG*3C, OD3.5
Conductor Wire: bare copper
Color: Black
Chipset: PL2303GT
Type: USB RS232 Level
Length: 100cm, 180cm, 300cm optional, other length can be
Connector: Nickel plated shell, gold plated contacts
Pinout wiring: 1-GND, 3-RXD, 4-TXD
Application: for connecting PC to Audiostar
Molding: PVC material, complaint
Support: Windows 7 8 10 Android Linux
Testing: 3 times electrical inspection, appearance inspection
Package: PE Bag
About PL2303GT
PL2303GT USB to RS232 Serial Bridge Controller With Built-in RS232 Transceiver
USB Interface
-Single-chip USB to RS232 asynchronous serial data transfer interface.
-Fully Compliant with USB 2.0 specification (Full-Speed Mode).
-UHCI/OHCI (USB 1.1), EHCI (USB 2.0), xHCI (USB 3.1) Host Controller Compatible.
-Royalty-free USB to Virtual Com Port (VCP) drivers for Windows, , Linux, and Android.
-Highly integrated USB 1.1 FS Transceiver. Integrated termination resistors and pull-up resistor to reduce PCB external components.
-Supports OTPROM (One-Time Programmable ROM) for USB device descriptors configuration. OTPROM can be programmed directly through USB port.
-Each IC has unique ID (for Serial Number).
-Supports bus-power, self-power and high-power USB device configuration.
-Supports Windows USB Selective Suspend (Remote Wakeup enabled).
-Supports 3.3V VBUS voltage operation
UART Interface (RS232)
-Built-in RS232 Transceiver:
--Meets EIA/-TIA-232F standards with 5.0V power supply
--Guaranteed 1000kbps transmission rate under loading
--Three RS232 Drivers design
--Five RS232 Receivers (always active)
--Latch-up free
-RS232 Serial Port Output Interface:
--Full UART RS232 interface pins (TXD, RXD, RTS, CTS, DTR, , DCD, and RI)
--Flexible baud rate support up to 1Mbps
--5, 6, 7 or 8 data bits
--Odd, Even, Mark, Space, None parity mode
