Cord Dimmers

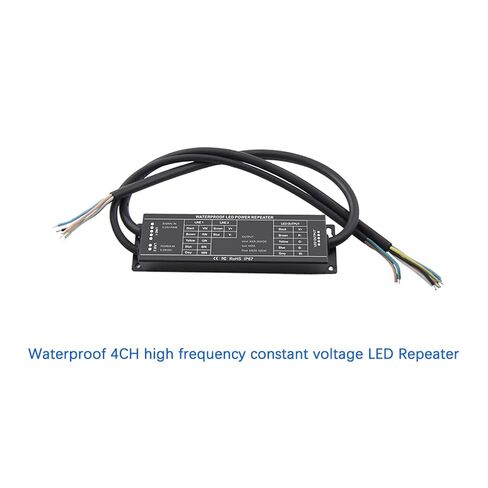

5A x 4CH waterproof high frequency constant voltage LED repeater DC 5V - 24V suitable for various PWM controller power expansion
Welcome to use this waterproof LED power repeater, which is suitable for power expansion of various PWM controllers. In theory, the number of power repeaters that can be connected is unlimited. In addition, constant voltage and constant current power transponders can be connected freely and are suitable for synchronous control of different LED lights.
Basic features:
1. Automatically adapt to DC5V-24V input.
2. Maintain high-frequency common anode PWM input signal.
3. Synchronous control with LED controller, DMX512 decoder, and LED dimmer,
Achieve rich color changes.
4. Overcurrent protection and short circuit protection.
5.3000v photoelectric isolation function
Specification:
Model
Waterproof 4-way high frequency constant voltage LED repeater
input voltage
DC5V-DC24
Maximum load current
RGBW: 5A×4CH
Output signal
constant voltage pulse width modulation
Maximum output power
100W(5V)/240W(12V)/480W(24V)
Product size
Length 173* Width 45* Height 25mm
Product size
35cm
Packing size
Length 215* Width 80* Height 30mm
weight
310g
=========
Model: BC-964-WP
Connection method: PWM control
Certification: CE, ROHS
Voltage: 12-24V
Material: PC
Power supply: DC
maximum. Load power: 100W(5V)/240W(12V)/480W(24V)
Control mode: constant voltage PWM
Origin: Mainland China
Product Type: RGB Controller
Waterproof grade: IP67
