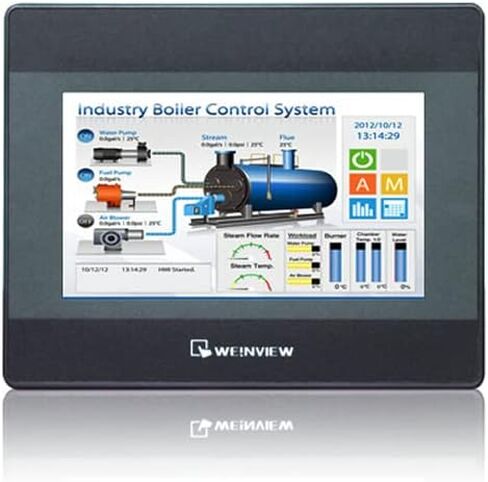

MT8071iP Weinview 7 inch HMI Touch Screen panel 800*480 Ethernet
Display
Display type
7” TFT
Resolution(WxH dots)
800x480
Brightness(cd/m2)
500
Contrast
500:1
Backlight type
LED
Backlight service life

Display colors
65536
Touch Panel
Type
Four-wire analog resistance type
Storage
Flash RAM(MB)
128
DRAM (MB)
64
Processor
32Bit RISC 400MHz
Communication Port
slot
YES
USB HOST
USB 1.1 x 1
Mini usb downloading port
USB 2.0 x 1
Ethernet
10/100 Base-T
COM connectors
Com1: RS-232/RS-485 2w/4w, Com2(RS232),Com3:RS-485 2w
Voice Output
N/A
Calendar
Built-in
Electricity Supply
Input power
24±20%VDC
Power dissipation
250mA@24V
Isolated power supply
Built-in
Pressure-proof
500 VAC(one min)
Insulating resistance
Over 500MW at 500 VDC
Quake-proof
10 to 25Hz(Direction X,Y,Z 2G 30 mins)
Specifications:
Sheathing material
Industrial plastics
Outside measurement WxHxD
200 x146 x 42.5mm
Opening size(mm)
192 x 138mm
Weight(kg)
About 0.85kg
Item specifics:
Motor type: Stepper Motor
Certification: NONE
Origin: CN(Origin)
Power supply: DC
Model number: MT8071IP
