KWD 3.500
Brand
LYLANMO
Weight
33 g
Number of Items4
– 1 +

Special Features

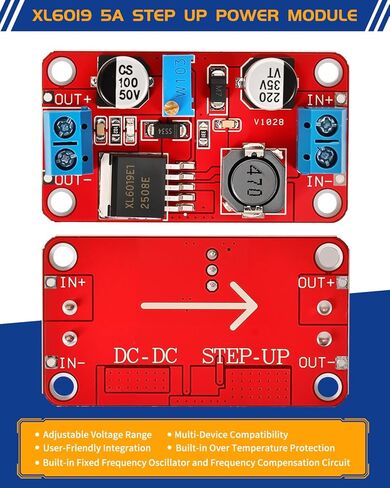

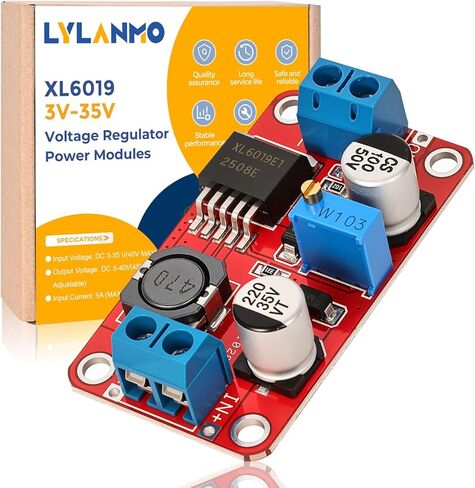

  • BOOST MODULE: For the Conventional Constant Voltage Output BOOST, fully integrated solutions are provided. An integrated MOSFET is included, reducing the number of external components and making the cost system smaller
  • ADJUSTABLE VOLTAGE BOOST: The input supports a broad voltage range, with input voltages varying between 3V and 35V. Additionally, the output voltage is adjustable within the range of 5V to 40V

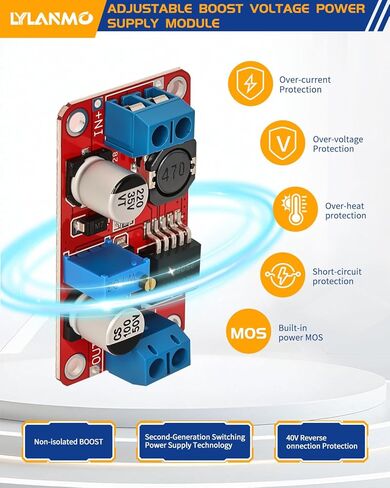

  • RELIABILITY: It features a comprehensive suite of reliability protection circuits, including over-temperature and overcurrent protection, which ensures its high level of reliability
  • MODULE USAGE: Upon connecting the module to the power supply (3-35V), the power indicator light will illuminate, confirming that the module is functioning properly. Proceed to adjust the blue potentiometer knob—counterclockwise rotation typically increases the voltage, while clockwise rotation decreases it—and utilize a multimeter to monitor the output voltage until the desired voltage level is attained
  • APPLICATION CASE: VEHICLE-MOUNTED VOLTAGE STABILIZER: Connect the module to the car's cigarette lighter socket, adjust the potentiometer as needed. Output voltage is adjustable from 5V to 30V for devices like phones, MP3/MP4 players, and PSP chargers. ELECTRONIC DEVICE POWER SUPPLY: For devices requiring 5V to 35V, this module adjusts voltage conveniently. SYSTEM VOLTAGE TESTING: During development, use this module to test system operating voltages efficiently
  • NOTES: It is recommended to operate the module for extended periods at a current of 2.5A or less. Additionally, a heat sink should be installed when the output power reaches 10W or more. As this is a boost module, to ensure stable output performance, please maintain a minimum voltage difference of 1.5V between input and output
