محول ثنائي الاتجاه الصناعي USB إلى 485 RS485 مع رقاقة FT232RNL و SP485EEN الأصلية ، يدعم Linux و Android و Win11/10/8.1/8/7/XP ، إلخ. مع دوائر الحماية لمعدات التحكم الصناعية

KWD 6.500
ماركة
Wonrabai
وزن
10 g
– 1 +

مميزات خاصة

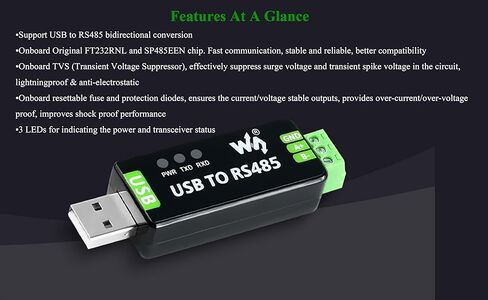

  • Industrial USB to RS485 bidirectional converter with original FT232RNL and SP485EEN chip. Due to its stable communication, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.

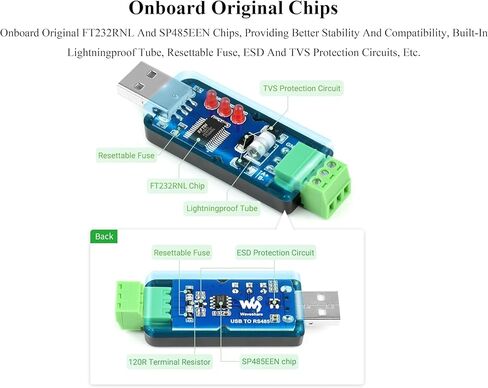

  • Onboard original FT232RNL and SP485EEN chips, providing better stability and compatibility, built-in lightningproof tube, resettable fuse, ESD and TVS protection circuits, etc.
  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, light-ningproof & anti-electrostatic.
  • Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance. 3 LEDs for indicating the power and transceiver status.

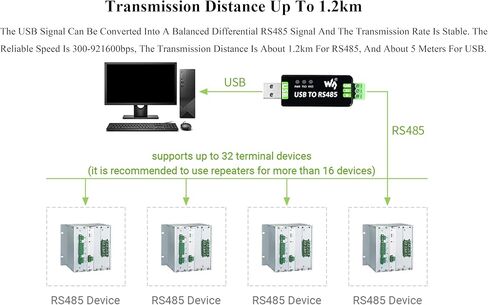

  • Transmission distance up to 1.2km: The USB signal can be converted into a balanced differential RS485 signal and the transmission rate is stable. The reliable speed is 300-921600bps, the transmission distance is about 1.2km for RS485, and about 5 meters for USB.
  • Compatible with Mac, Linux, Android, WinCE, Win11/10/8.1/8/7/XP, etc.
  • Comes with Online Tutorial Usage Guide and Online Development Resource, Please check: n9.cl/nrfcg

وصف

Industrial USB to RS485 bidirectional converter with original FT232RL and SP485EEN chip. Due to its stable communication, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.

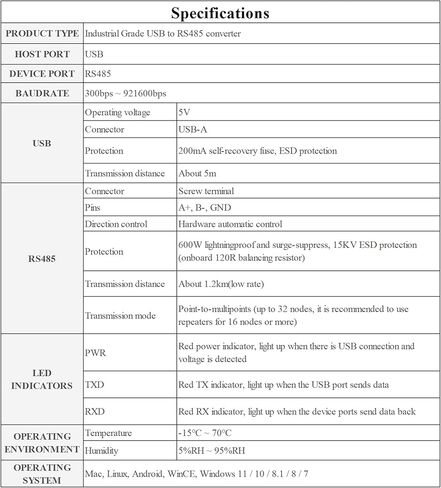

Specifications
PRODUCT TYPE :Industrial Grade USB to RS485 converter
Host port : USB
Device port : RS485
Baudrate : 300bps ~ 921600bps

USB
Operating voltage:5V
Connector:USB-A
Protection:200mA self-recovery fuse, ESD protection
Transmission distance:About 5m

RS485
Connector:Screw terminal
Pins:A+, B-, GND
Direction control:Hardware automatic control
Protection:600W lightningproof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)
Transmission distance:About 1.2km(low rate)
Transmission mode:Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)

LED indicators
PWR:Red power indicator, light up when there is USB connection and voltage is detected
TXD:Red TX indicator, light up when the USB port sends data
RXD:Red RX indicator, light up when the device ports send data back

Operating environment Temperature:-15℃ ~ 70℃
Humidity :5%RH ~ 95%RH
Operating system:Linux, Android, WinCE, Windows 10 / 8.1 / 8 / 7 / XP,etc.

Comes with Online Tutorial Usage Guide and Online Development Resource, Please check: n9.cl/nrfcg

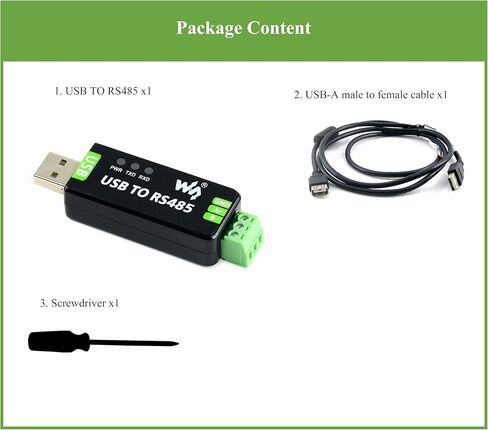

PACKAGE CONTENT
1.USB TO RS485 x1
2.USB-A male to female cable x1
3.Screwdriver x1
