Raspbery pi ai hat+ ، in-in-in 13 staps hailo-8 ai ascelerator لبناء مجموعة واسعة من التطبيقات التي تعمل بالنيابة ، قبعة AI عالية الأداء مناسبة للتشويش PI 5 (RPI AI HAT+ (13T))
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠.قد تحتاج إلى محول كهرباء
مميزات خاصة

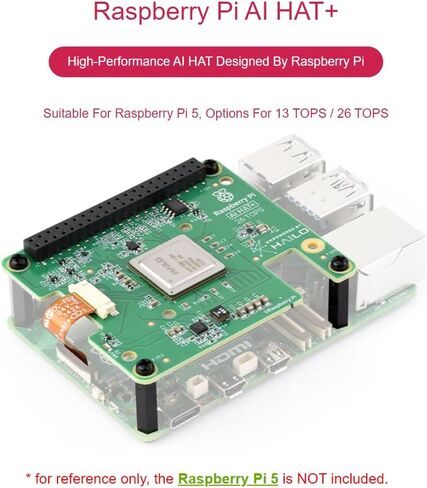

The Raspbery Pi AI HAT+ is an add-on board with a built-in Hailo AI accelerator designed for RPi 5. It provides an accessible, cost-effective, and power-efficient way to integrate high-performance AI. It's suited to everything from entry-level applications to more complex neural processing, with the ability to process multiple concurrent models and AI tasks. Explore applications including process control, security, home automation, and robotics.
This AI HAT+ is available in 13 TOPS variants, built around the Hailo-8L neural network inference accelerators. The 13 TOPS variant capably runs neural networks for applications including object detection, semantic and instance segmentation, pose estimation, and more.

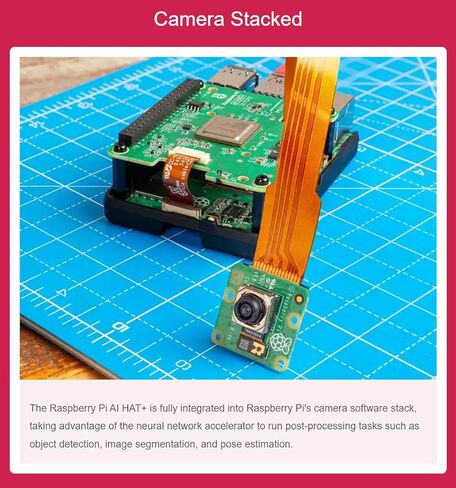

The AI HAT+ communicates using Raspbery Pi 5's PCIe Gen 3 interface. It automatically detects the onboard Hailo accelerator and makes the NPU available for AI computing tasks. The built-in rpicam-apps camera applications in Raspbery Pi OS natively support the AI module, automatically using the NPU to run compatible post-processing tasks.
Hailo-8L accelerator offering 13 TOPS inferencing performance respectively. Fully integrated into Raspbery Pi's camera software stack. Conforms to Raspbery Pi HAT+ specification.

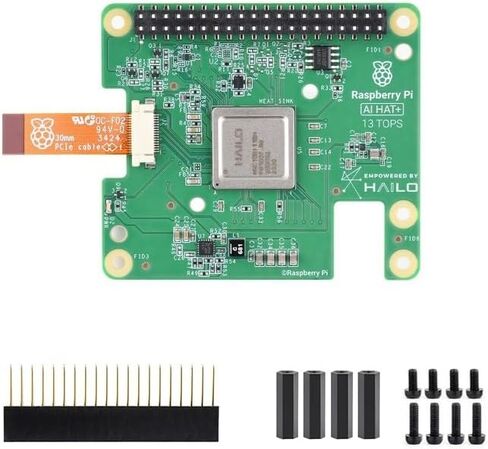

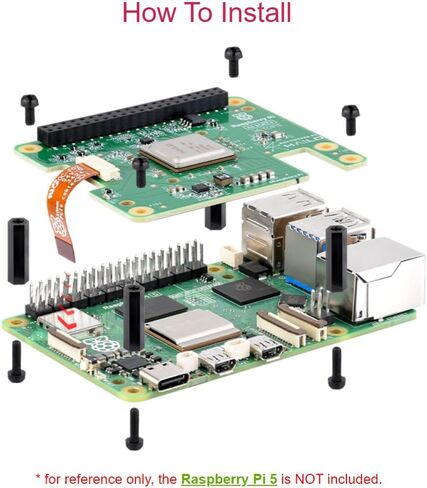

Comes with 16mm stacking header, spacers, and screws to enable fitting on Raspbery Pi 5 with Raspbery Pi Active Cooler in place.
Operating temperature: 0℃ ~ 50℃ (ambient).
وصف
Key Features
● Hailo-8L accelerator offering 13 TOPS inferencing performance respectively.
● Fully integrated into Raspbery Pi's camera software stack.
● Conforms to Raspbery Pi HAT+ specification.
● Comes with 16mm stacking header, spacers, and screws to enable fitting on Raspbery Pi 5 with Raspbery Pi Active Cooler in place.
● Operating temperature: 0℃ ~ 50℃ (ambient).
Specifications
Model: RPi AI HAT+ (13T)
Neural Network Accelerator: Hailo-8L
AI performance (INT8): 13 TOPS

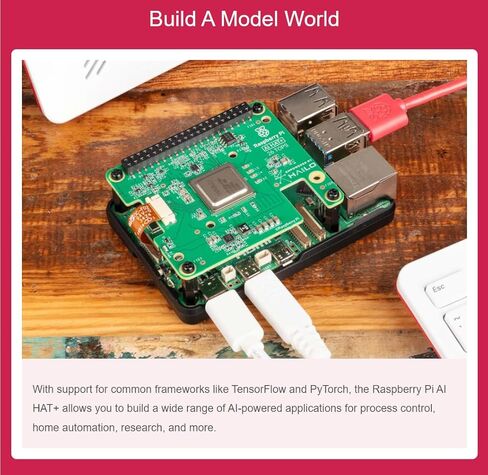

Frameworks: Support TensorFlow, TensorFlow Lite, ONNX, Keras, PyTorch
OS Support: Raspbery Pi OS latest version
Software Support: Fully integrated into Raspbery Pi's camera software stack
Host Support: RPi 5
Operating Temperature: 0℃ ~ 50℃ (ambient)

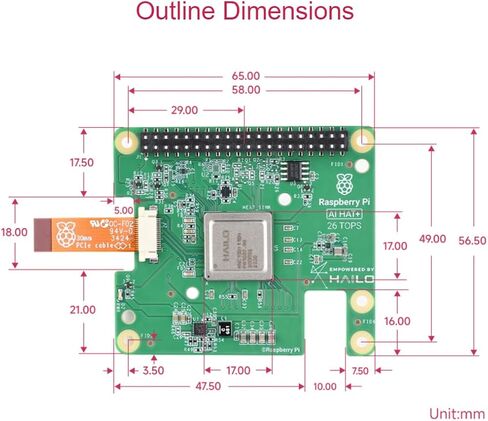

Dimensions: 56.5(W) × 65(L) × 5.5(H) (mm)
PCIe Interface: Compatible with Raspbery Pi 5 PCIe Gen 3 interface
HAT Standard: Conforms to Raspbery Pi HAT+ specification
