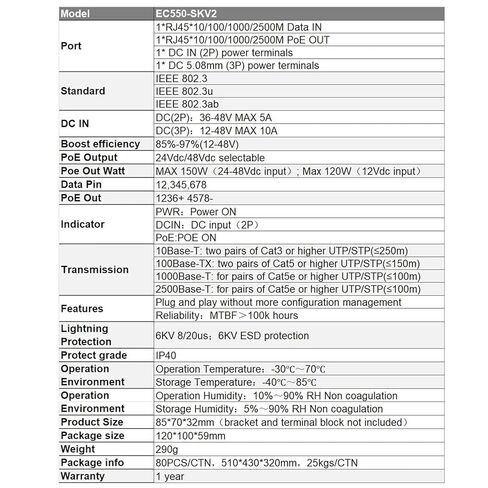

Spec:
Item Type: Gigabit PoE Injector
Port:
1 x RJ45 10/100/1000/2500Mb/s Data Input
1 x RJ45 10/100/1000/2500Mb/s PoE Output
1 x DC IN (2P) Power Terminal
1 x DC 5.08mm (3P) Power Terminal
Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
DC Input:
DC (2P): 36-51V Maximum 5A
DC (3P): 12-51V Maximum 10A
Boost Efficiency: 85%-97%(12-51V)
PoE Output: 24VDC/48VDC Optional
PoE Output Power: Maximum 150W (57VDC Input); Maximum 100W (24VDC Input)
Data Pin: 12,345,678
PoE Output: 1236+ 4578-
Indicator:
PWR: Power On
DC IN: DC Input (2P)
PoE: POE On
Transfer:
10Base-T: 2 pairs Cat3 or higher UTP/STP (100Base-TX: 2 pairs Cat5 or higher UTP/STP (1000Base-T: For Cat5e or higher UTP/STP (2500Base-T: For Cat5e or higher UTP/STP (Features: Plug and play, no more configuration management required
Reliability: MTBF>100k hours
Thunder Guard: 6KV 8/20us: 6KV ESD Guard
Operating Temperature: -30-70℃
Storage Temperature: -40-85℃
Operating Humidity: 10%-90%RH Non condensing
Storage Humidity: 5%-90%RH Non condensing
Product Size: Approx. 85 x 70 x 32mm / 3.3 x 2.8 x 1.3in (excluding bracket and terminal)
Compatible: For Gen2 Standard Driver, for Gen3 Standard Driver
How to Use:
Directly use
packing list:

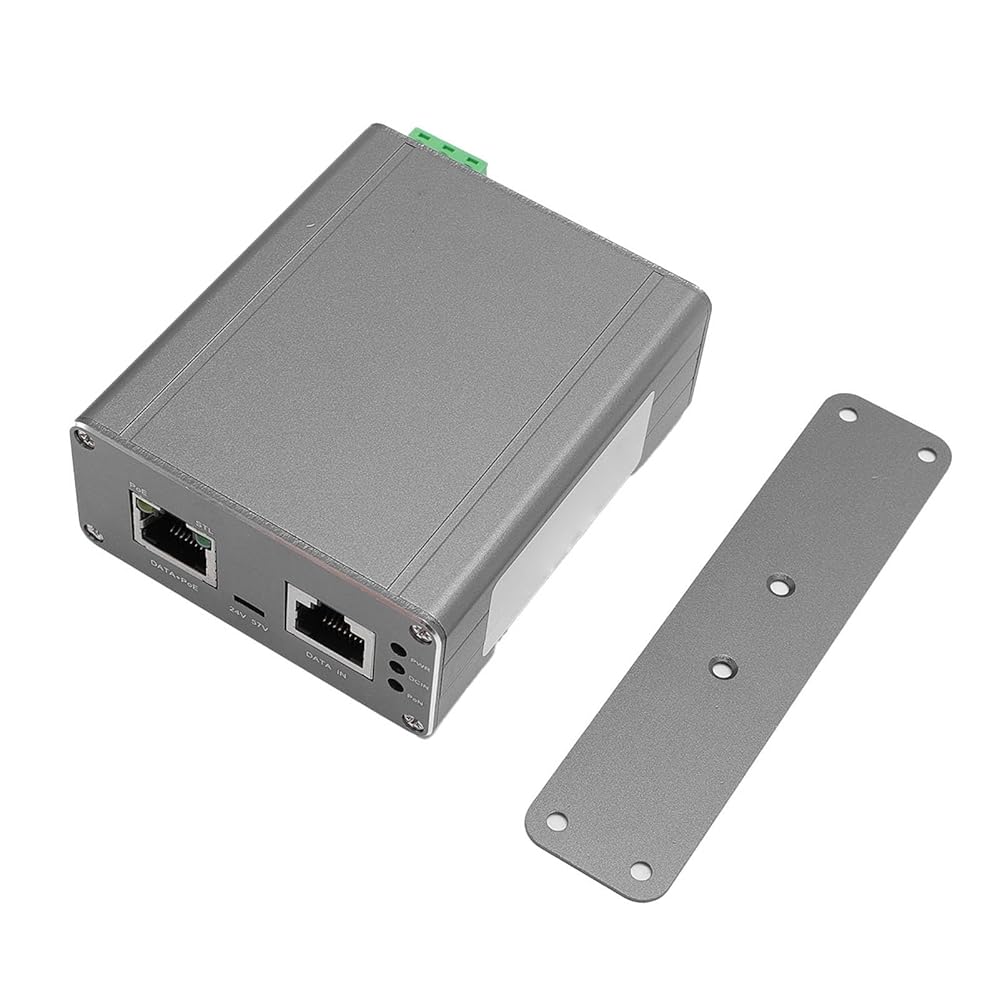

1 x POE Injector
1 x Bracket
