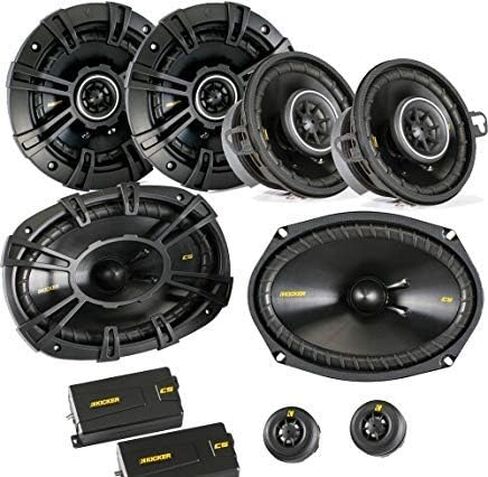

This bundle includes a pair of Kicker CS 6x9" component speakers, a pair of Kicker CS 5.25" coaxial speakers, and a pair of Kicker CS 3.5" Coaxial speakers.
*This bundle does not fit Mega Cab for Dodge Ram.

Kicker CS Series 6x9 Speakers 46CSS694
Woofer Size | in [mm] - 6x9 [160x230]
Tweeter Size | in [mm] - 3/4 [20]
Dome Material - Titanium
Peak Power | [watts] - 450
Continuous Power | [watts RMS] - 150
Effective Frequency Range | Hz - 30-21k
Woofer Mounting Hole Diameter | in [mm] - 5 5/8 x 8 7/16 [143x215]
Woofer Bottom Mount Depth | in [mm] - 3 3/16 [81]
Flush Mounting Tweeter Hole Diameter | in [mm] - 1 9/16 [40]
Flush Mount Tweeter Depth | in [mm] - 9/16 [14.5]
High Pass | dB, at Frequency | Hz - 12, 4000
Low Pass | dB, at Frequency | Hz - 12, 4000
High Frequency Output Attenuation | dB - 0, 3, & 6
Bolt-Thru Grilles - Yes

Kicker CS Series 5 Coaxial 46CSC54
Speaker Design - 2 - way
Woofer Size | in [mm] - 5 1/4 [130]
Tweeter Size | in [mm] - 1/2 [13]
DC Resistance | ohm - 3.4
Peak Power | Watts - 225
Continuous Power | Watts, RMS - 75
Sensitivity [SPLo] | dB @ 1W, 1m - 90
Effective Frequency Range | Hz - 45-20k
Mounting Hole Diameter | in [mm] - 4 1/2 [115]
Top Mount Depth | in [mm] - 1/4 [7]
Bottom Mount Depth | in [mm] - 1 3/4 [45]
Tweeter Protrusion | in [mm] - 0
Grilles - Yes

Kicker CS Series 3.5 Coaxial 46CSC354
Speaker Design 2 - way
Woofer Size | in [mm] 3 1/2 [89]
Tweeter Size | in [mm] - 1/2 [13]
DC Resistance | ohm - 3
