JMT ADT-R33G PCIe 5.0x16 Half Height to Full Height Extension Card Test Adapter Protection Card Compatible with gen3 gen4 gen5

Product Detail£º
Product Name£ºPCI-E x16 half-height to full-height Riser card.

Speed bandwidth: PCIe 5.0 x16

Product Features:

1. Support PCIe 5.0 X16 compatible with gen3/gen4/gen5.

2. Supports half-height to full-height cards that meet the official PCIe size standard.

3. Support external power supply, external power supply protection, effectively avoid reverse current problems, to ensure the safety of the motherboard power supply.

4. gold-plated gold fingers, gold thickness up to 10U, in line with IPC level 1 international standards.

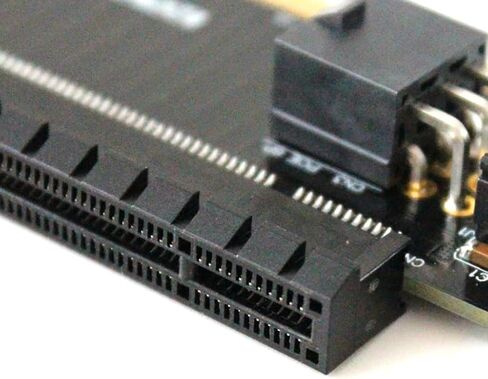

5. LOTES connector, LCP flame retardant high temperature resistant plastic material.

6. high-frequency, low resistance, high-temperature resistant and anti-oxidation PCB board, non-deformation of the colour yellow crystal semi-transparent non-white non-black.

If you need to use external power supply, insert the PCIe power supply into the power supply holder and unplug J1 and J2, then you can use it normally; when you don't use external power supply, insert all jumper caps.
